1967 Yamaha YR1_2_2C (YR1) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1967 Yamaha YR1_2_2C (YR1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

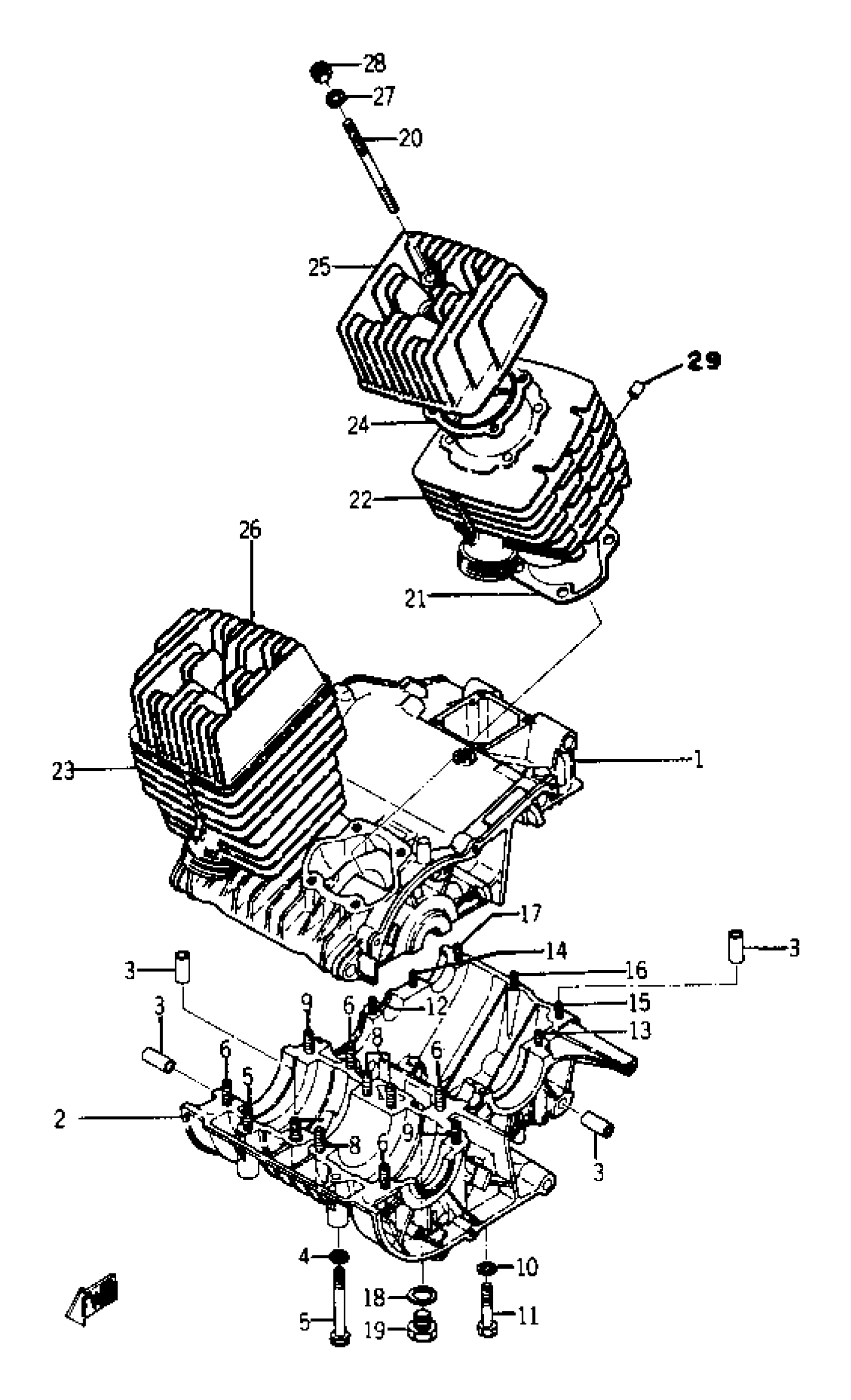

1967 Yamaha YR1_2_2C (YR1) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

(168-15100-01-00)

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

5

BOLT

97021-08065-00

1
Out of stock

6

BOLT,HEXAGON

97013-08085-00

1
Out of stock

7

BOLT, FLANGE(8BT)

95817-08095-00

1
Out of stock

8

BOLT (6K8)

97013-08075-00

1

$5.66

In stock

9

BOLT, HEXAGON

97027-08100-00

1

$4.55

In stock

10

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

11

BOLT, HEXAGON

(97321-06085-00)

1
Out of stock

12

BOLT, HEXAGON

97080-06100-00

1

$8.70

In stock

13

BOLT, HEXAGON DEEP RECESS

97D95-06095-00

—
Out of stock

14

BOLT(3GG)

97017-06090-00

1
Out of stock

15

BOLT, HEXAGON

(97321-06105-00)

1
Out of stock

16

BOLT(62J)

97013-06070-00

—

$3.37

In stock

17

BOLT, HEXAGON W/W DEEP RECESS

97E95-06555-00

1
Out of stock

18

WASHER, PROTECTOR

4F4-14766-00-00

—

$6.11

In stock

19

PLUG, STRAIGHT SCREW

90340-14119-00

1
Out of stock

20

BOLT, STUD

90116-08079-00

1
Out of stock

21

GASKET, CYLINDER

168-11351-10-00

1
Out of stock

22

CYLINDER 1

(235-11311-00-00)

1
Out of stock

23

CYLINDER 2

(235-11321-00-00)

1
Out of stock

24

GASKET, CYLINDER HEAD 1

(168-11181-01-00)

1
Out of stock

25

HEAD, CYLINDER 1

(235-11111-00-00)

1
Out of stock

26

HEAD, CYLINDER 2

(235-11121-00-00)

1
Out of stock

27

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

28

NUT(6L2)

95333-08600-00

—

$3.20

In stock

29

PIN, DOWEL

93602-10061-00

1
Out of stock
