1967 Yamaha Trailmaster (YL2C_TRAILMASTER) Shifter Diagram

← All diagrams

Find the part on the Shifter diagram for your 1967 Yamaha Trailmaster (YL2C_TRAILMASTER), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

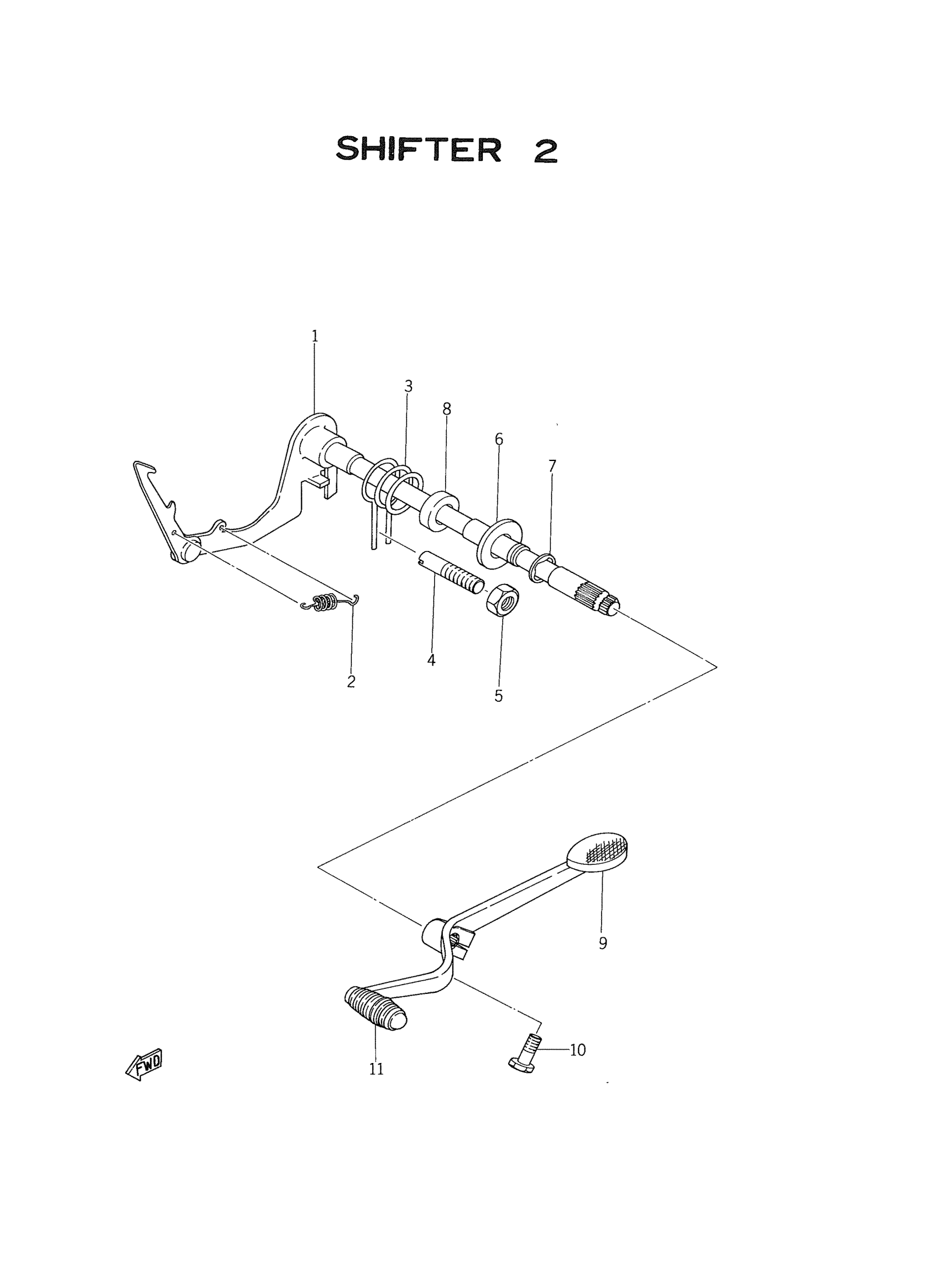

1967 Yamaha Trailmaster (YL2C_TRAILMASTER) Shifter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSEMBLY

164-18101-02-00

1
Out of stock

2

—

$6.68

In stock

3

SPRING TORSION 132181240000

90508-32207-00

1
Out of stock

4

SCREW, ADJUSTING (367)

90149-08094-00

1

$4.91

In stock

5

. NUT

95380-08700-00

1

$3.07

In stock

6

WASHER, PLATE (353)

90201-12575-00

1
Out of stock

7

CIRCLIP

99006-10600-00

1

$6.91

In stock

8

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

9

PEDAL, SHIFT

167-18111-01-93

1
Out of stock

10

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

11

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock
