1967 Yamaha Trailmaster (YL2C_TRAILMASTER) Electrical System Diagram

← All diagrams

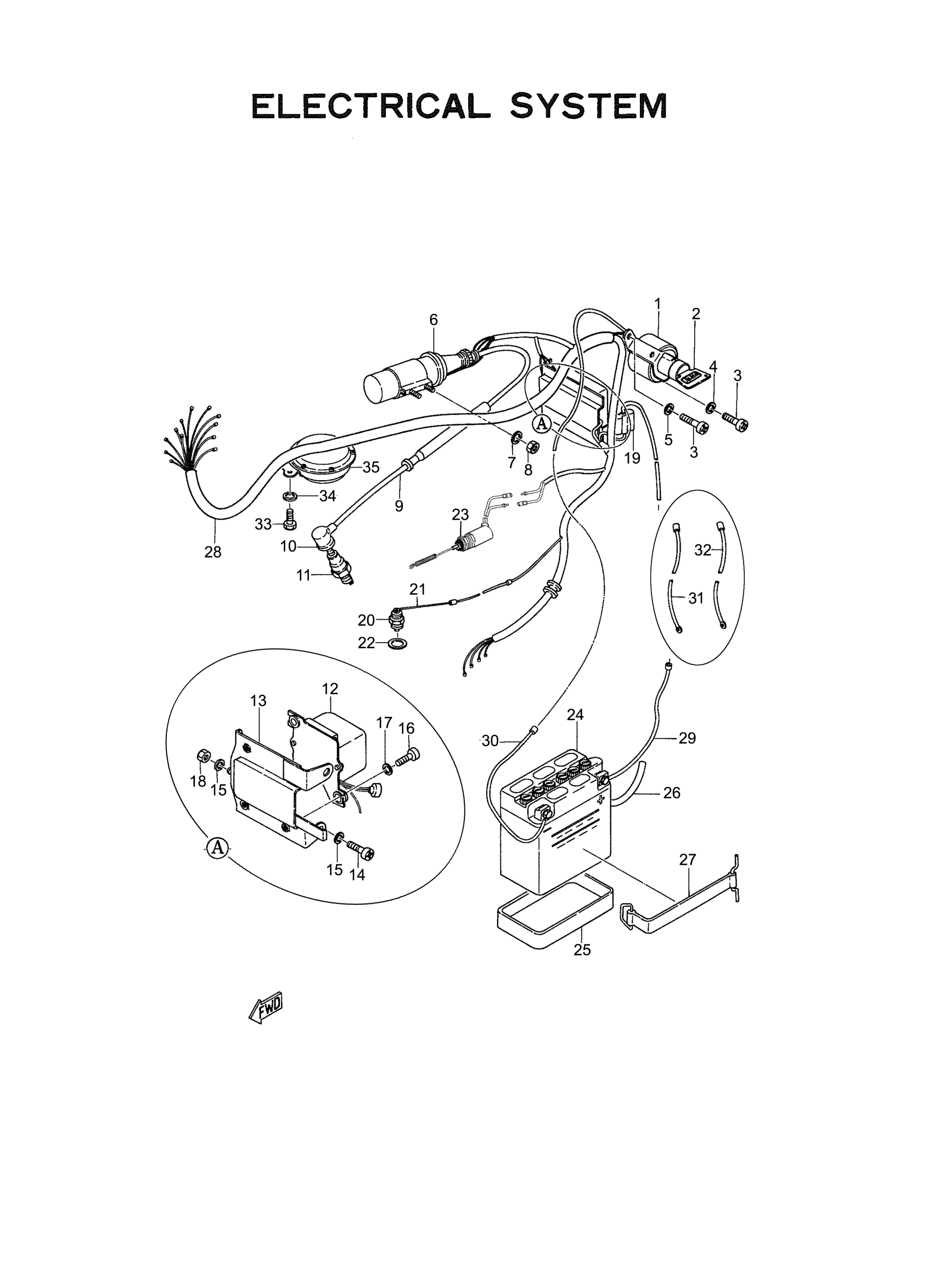

Find the part on the Electrical System diagram for your 1967 Yamaha Trailmaster (YL2C_TRAILMASTER), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1967 Yamaha Trailmaster (YL2C_TRAILMASTER) Electrical System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MAIN SWITCH ASSEMBLY

164-82508-10-00

1
Out of stock

3

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

IGNITION COIL ASSEMBLY

132-82310-70-00

1
Out of stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

9

CORD, HIGH TENS 1

164-82341-00-00

1
Out of stock

10

PLUG CAP ASSY

56J-82370-00-00

1

$56.63

In stock

11

1

$4.21

In stock

12

VOLTAGE REG ASSEMBLY

165-81910-20-00

1
Out of stock

13

PLATE, REGULATOR FITTING

164-81915-00-00

1
Out of stock

14

SCREW, PAN HEAD(6A3)

97885-06008-00

1

$1.07

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

SCREW, PAN

98507-06014-00

1

$6.18

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

19

FUSE HOLDER ASSY

2UJ-82150-02-00

—
Out of stock

20

NEUTRAL SWITCH ASY

146-82540-01-00

1
Out of stock

21

WIRE, LEAD

164-82541-00-00

1
Out of stock

22

WASHER, PLATE

90201-12790-00

—

$6.85

In stock

23

STOP SWITCH ASSEMBLY

167-82530-00-00

1
Out of stock

24

12N73BY YUASA BATTERY

12N-73BY0-00-00

1
Out of stock

25

SEAT, BATTERY

123-82122-00-00

1
Out of stock

26

PIPE,BREATHER

2RH-21826-00-00

1
Out of stock

27

BAND, BATTERY

133-82131-00-00

—

$21.78

In stock

28

WIRE HARNESS ASSEMBLY

164-82590-10-00

1
Out of stock

29

WIRE, EARTH LEAD

164-84756-60-00

1
Out of stock

30

WIRE, LEAD 2

122-84149-00-00

1
Out of stock

31

WIRE, PLUS LEAD

165-82115-00-00

1
Out of stock

32

WIRE, MINUS LEAD

165-82116-00-00

1
Out of stock

33

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

34

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

35

HORN

131-83371-23-00

1
Out of stock
