1967 Yamaha YL2 (YL2_100) Electrical System Diagram

← All diagrams

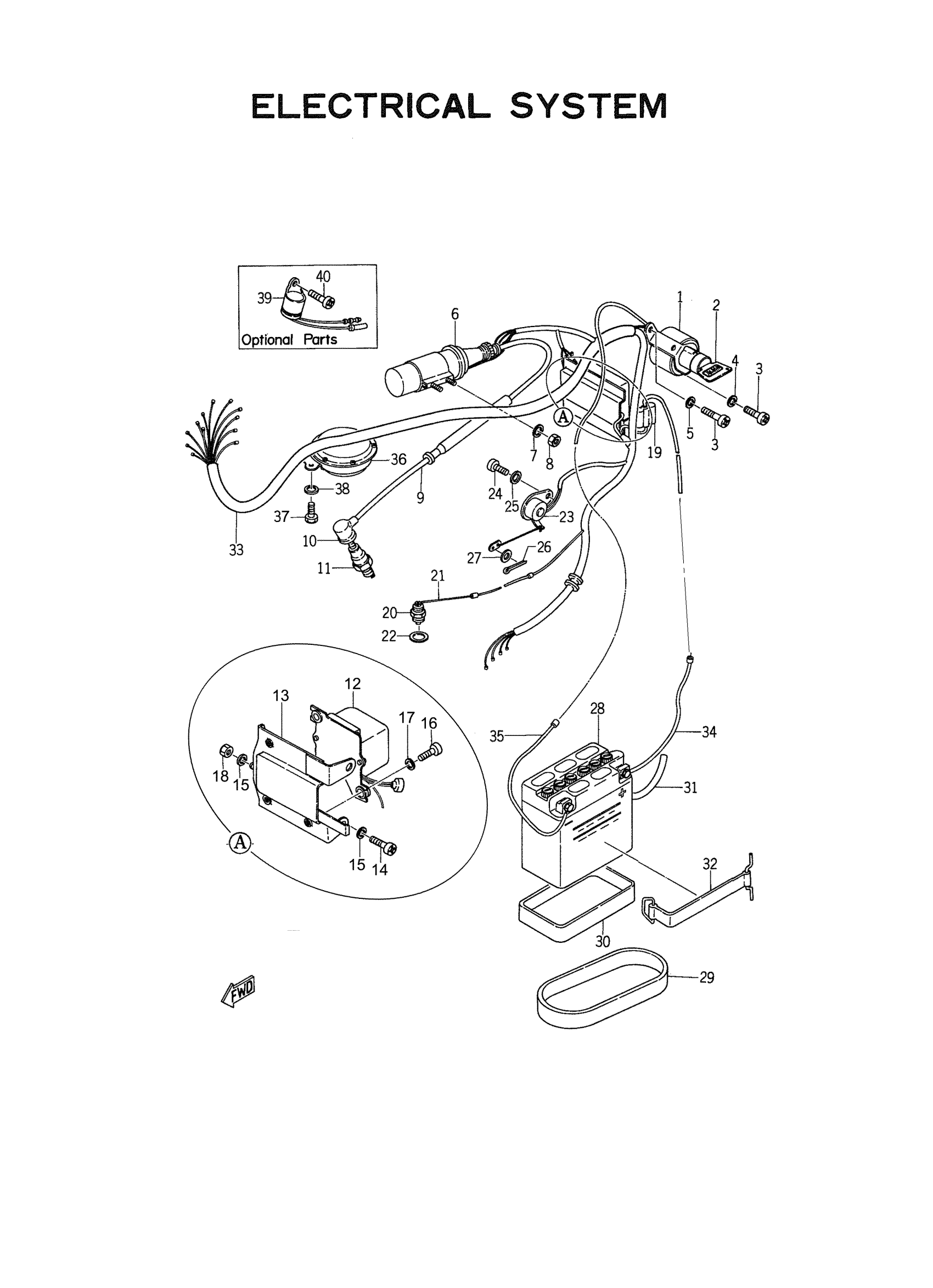

Find the part on the Electrical System diagram for your 1967 Yamaha YL2 (YL2_100), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1967 Yamaha YL2 (YL2_100) Electrical System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MAIN SWITCH ASSEMBLY

164-82508-10-00

1
Out of stock

2

. KEY, MAIN SWITCH

131-82511-00-00

1
Out of stock

3

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

IGNITION COIL ASSEMBLY

132-82310-70-00

1
Out of stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

9

CORD, HIGH TENS 1

164-82341-00-00

1
Out of stock

10

PLUG CAP ASSY

56J-82370-00-00

1

$56.63

In stock

11

B7HS NGK 4PK

B7H-S0000-00-00

1

$4.95

In stock

11

1

$4.21

In stock

12

VOLTAGE REG ASSEMBLY

164-81910-20-00

1
Out of stock

13

PLATE, REGULATOR FITTING

164-81915-00-00

1
Out of stock

14

SCREW, PAN HEAD(6A3)

97885-06008-00

1

$1.07

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

SCREW, PAN

98507-06014-00

—

$6.18

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

19

FUSE HOLDER ASSY

2UJ-82150-02-00

—
Out of stock

20

NEUTRAL SWITCH ASY

146-82540-01-00

1
Out of stock

21

WIRE, LEAD

164-82541-00-00

1
Out of stock

22

UNAVAILABLE IN PRICE BOOK (90430-11103)

90430-11134-00

1
Out of stock

23

STOPSWITCHASSY

122-82530-02-00

1
Out of stock

24

BOLT, HEXAGON

97013-05010-00

—

$0.85

In stock

25

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

26

PIN, COTTER

91490-16020-00

1

$6.23

In stock

27

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

28

12N5.5-3B GS BATTERY

12N-553BA-00-00

1
Out of stock

29

BAND, BATTERY

164-82124-00-00

1
Out of stock

30

SEAT, BATTERY

102-82122-00-00

1
Out of stock

31

PIPE,BREATHER

2RH-21826-00-00

1
Out of stock

32

BAND, BATTERY

133-82131-00-00

—

$21.78

In stock

33

WIRE HARNESS ASSEMBLY

164-82590-10-00

1
Out of stock

34

WIRE, PLUS LEAD

165-82115-00-00

1
Out of stock

35

WIRE, MINUS LEAD

165-82116-00-00

1
Out of stock

36

HORN

131-83371-23-00

1
Out of stock

37

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

38

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

39

FLASHER RELAY ASSEMBLY

164-83350-20-00

1
Out of stock

40

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock
