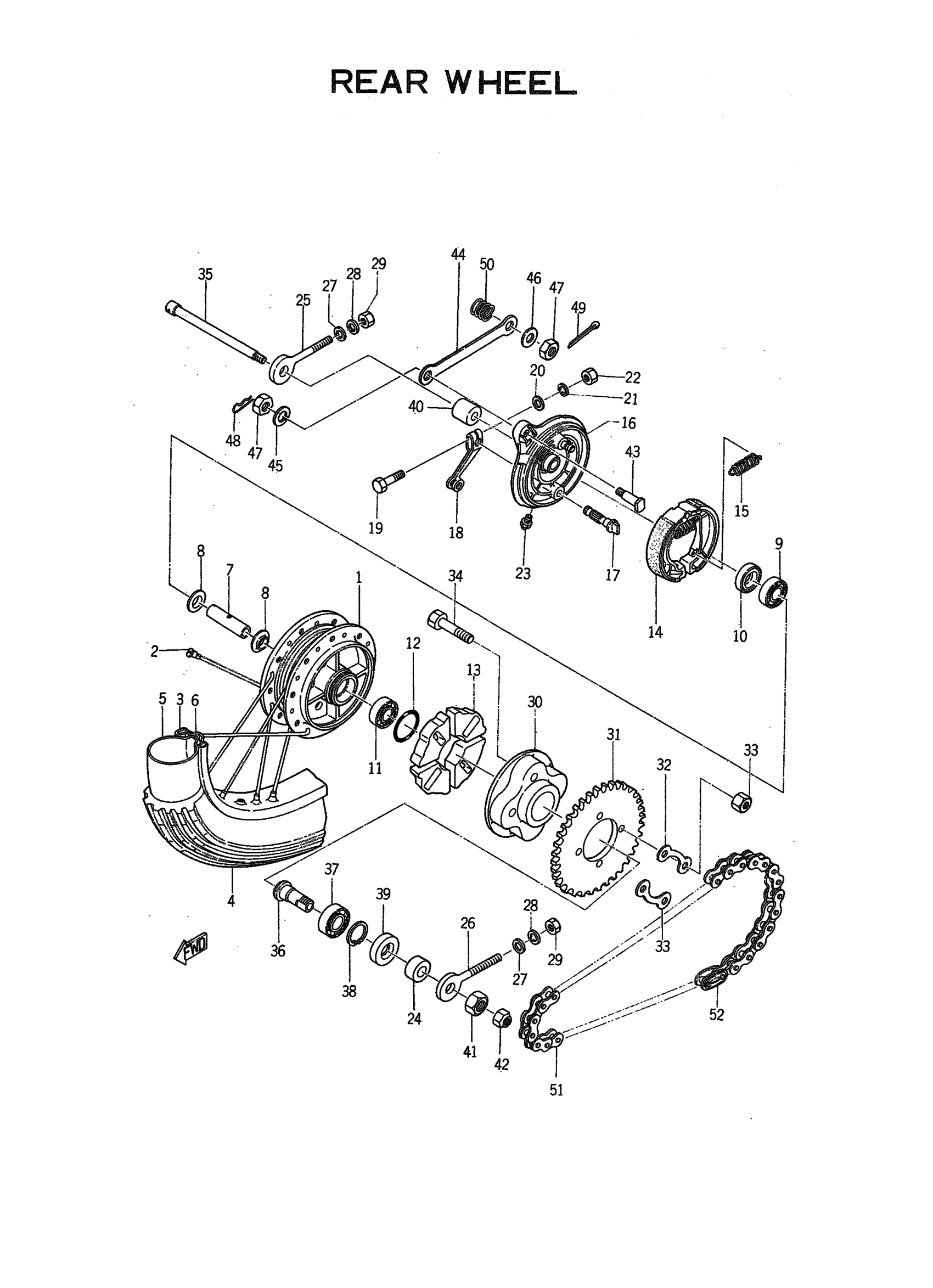

Yamaha YG1K (YG1K) 127 1965 REAR WHEEL Diagram

#

Description
Price

1

HUB,REAR

102-25311-00-38

Unavailable

2

SPOKE SET, REAR

122-25304-00-00

Unavailable

3

RIM 1.40X17

94414-17003-00

Unavailable

4

250-17 IRC

94125-17314-00

Unavailable

5

TUBE

94225-17082-00

Unavailable

6

BAND, RIM (3.25-17) (3Y0)

94332-17112-00

Unavailable

7

SPACER

90560-12145-00

$17.22

8

FLANGE, SPACER

109-25315-00-00

Unavailable

9

BRG.

93306-30101-00

$31.58

10

OIL SEAL (21X37X7-102)

93104-21016-00

Unavailable

11

BEARING

93306-30102-00

Unavailable

12

O-RING (102)

93210-41041-00

$5.86

13

DAMPER

102-25364-00-00

Unavailable

14

BRAKE SHOE KIT

4KN-W253E-11-00

$22.40

15

SPRING, TENSION (566).

90506-16150-00

Unavailable

16

BRAKE SHOE PLT ASY

339-25320-10-00

Unavailable

17

CAM SHAFT

122-25351-02-00

Unavailable

18

LEVER, CAM SHAFT

122-25355-00-00

Unavailable

19

BOLT, HEXAGON

97017-06030-00

$3.00

20

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.78

21

WASHER, SPRING

92995-06100-00

$2.99

22

NUT, HEXAGON

95380-06600-00

$4.13

23

NIPPLE, GREASE

93700-06M03-00

$7.15

24

COLLAR

90387-18143-00

Unavailable

25

PULLER, CHAIN

3AC-2538G-10-00

$11.72

26

PULLER, CHAIN

4GL-2538A-10-00

Unavailable

27

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.78

28

WASHER, SPRING

92995-06100-00

$2.99

29

NUT, HEXAGON

95380-06600-00

$4.13

30

CLUTCH, HUB

102-25366-00-00

Unavailable

31

SPROCKET, DRIVEN (37T)

122-25437-11-00

Unavailable

31

SPROCKET, DRIVN 49T

122-25449-10-33

Unavailable

31

SPROCKET, DRIVN 51T

122-25451-10-00

Unavailable

31

SPROCKET, DRIVN 53T

122-25453-10-33

Unavailable

31

SPROCKET DRIVN39T

12N-25439-20-33

Unavailable

31

SPROCKET, DRIVEN (35T)

5A7-25435-01-00

$25.17

32

WASHER

4AW-25412-00-00

$4.24

33

NUT(6L2)

95333-08600-00

$3.20

34

BOLT(1AJ)

90101-08672-00

$2.69

35

AXLE,WHEEL

357-25381-00-00

Unavailable

36

AXLE,SPROCKET

102-25387-02-00

Unavailable

37

BEARING(3BN)

93306-00438-00

$32.22

38

CIRCLIP(5U8)

99009-42500-00

$6.77

39

OIL SEAL (30X42X8-102)

93106-30004-00

$10.98

40

COLLAR 102253830000

90387-12412-00

$13.75

41

NUT, HEXAGON

90170-18165-00

Unavailable

42

NUT, SPEC''L SHAPE

(90179-10106-00)

Unavailable

43

BOLT 1022537300

90109-08183-00

$6.18

44

BAR, TENSION

(102-25371-00-00)

Unavailable

45

YBS67-8 WASHER, SPRING

92990-08100-00

$4.52

46

WASHER, PLAIN

92990-08200-00

$2.56

47

. NUT

95380-08700-00

$2.89

48

CLIP (156-83525-00)

90468-10050-00

$2.31

49

PIN, COTTER

91490-20025-00

$1.31

50

SPRING,COMPRESSION

90501-20129-00

Unavailable

51

420-106L

94580-52106-00

Unavailable

52

JOINT, CHAIN (29A)

94680-52001-00

$2.77
