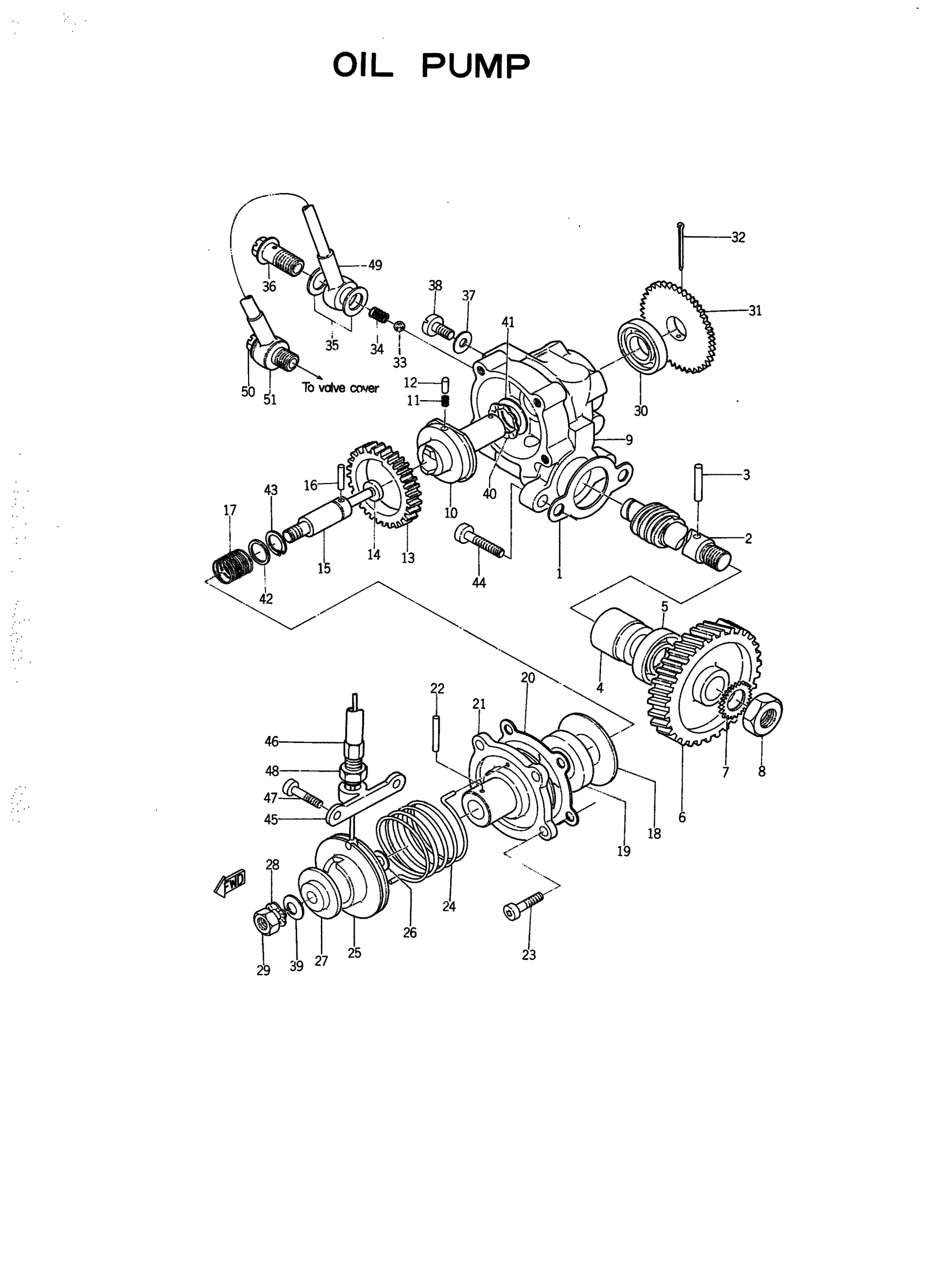

Yamaha YG1K (YG1K) 127 1965 OIL PUMP Diagram

#

Description
Price

1

GASKET, PUMP CASE

126-13116-01-00

$6.92

2

METAL, WORM SHAFT OUTER

137-13176-00-00

$6.08

3

PIN,DOWEL (137)

93603-22028-00

$2.13

4

METAL, WORM SHAFT OUTER

137-13176-00-00

$6.08

5

OIL SEAL (10X22X7-137)

93101-10002-00

$6.68

6

GEAR, PUMP DRIVE

126-13178-00-00

Unavailable

7

WASHER (688)

92990-08400-00

Unavailable

8

. NUT

95380-08700-00

$2.89

9

PUMP CASE ASSY

126-13110-00-00

Unavailable

10

DITRIBUTOR ASSY

137-13120-00-00

Unavailable

11

SPRING,COMPRESSION

90501-02016-00

Unavailable

12

. PIN, DOWEL

93602-04029-00

Unavailable

13

GEAR, WORM WHEEL

126-13124-00-00

Unavailable

14

OIL SEAL

93104-04114-00

Unavailable

15

. SPRING, PLNGR RTRN

137-13135-00-00

Unavailable

16

PIN,DOWEL (137)

93603-12030-00

$1.88

17

. SPRING, PLNGR RTRN

137-13135-00-00

Unavailable

18

. PLATE, WORM WHEEL

137-13127-00-00

Unavailable

19

OIL SEAL (14X25X5-2H7)

93104-14059-00

$11.08

20

. GASKET, PUMP CASE COVER

137-13142-00-00

Unavailable

21

. PLATE, WORM WHEEL

137-13127-00-00

Unavailable

22

. PIN

91608-20010-00

Unavailable

23

SCREW, PAN HEAD

92501-04010-00

Unavailable

24

. NO LONGER AVAILABLEK (137-13145-00)

90508-10216-00

Unavailable

25

PULLEY, ADJUSTING

126-13144-00-00

Unavailable

26

SHIM,PLUNGER

137-13137-00-10

$6.43

27

PLATE, ADJUSTING

137-13138-01-00

$12.17

28

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

29

. NUT

137-13139-00-00

Unavailable

30

OIL SEAL (J10)

93101-10090-00

$6.17

31

. PLATE, STARTER

137-13128-00-00

Unavailable

32

. PIN, COTTER

91401-12018-00

Unavailable

33

BALL

93505-32002-00

$2.22

34

. SPRING, COMPRESSION

90501-02017-00

Unavailable

35

GASKET(3FP)

90430-06224-00

Unavailable

36

BOLT UNION 137131650000

90401-06001-00

$7.48

37

GASKET 137131870000

90430-04004-00

$6.86

38

SCREW,PAN HEAD

164-81245-20-00

Unavailable

39

SHIM,PLUNGER

137-13137-00-10

$6.43

40

WASHER, WAVE (137)

90206-11016-00

Unavailable

41

PLATE, CAM THRUST

137-13148-00-00

Unavailable

42

. SEAT, SPRING

137-13134-00-00

Unavailable

43

. CIRCLIP, PLUNGER

93440-08001-00

Unavailable

44

SCREW, PAN HEAD(6B0)

97885-05016-00

$3.96

45

HOLDER, ADJUSTING

126-26381-00-00

Unavailable

46

HOLDER, ADJUSTING

126-26381-00-00

Unavailable

47

SCREW,PAN HEAD

92503-05012-00

Unavailable

48

NUT(650)

95380-06700-00

$6.17

49

PIPE, DELIVERY 1

126-13161-00-00

Unavailable

50

BOLT UNION 137131650000

90401-06001-00

$7.48

51

GASKET 137131870000

90430-04004-00

$6.86

52

OIL PUMP ASSEMBLY

126-13101-02-00

Unavailable
