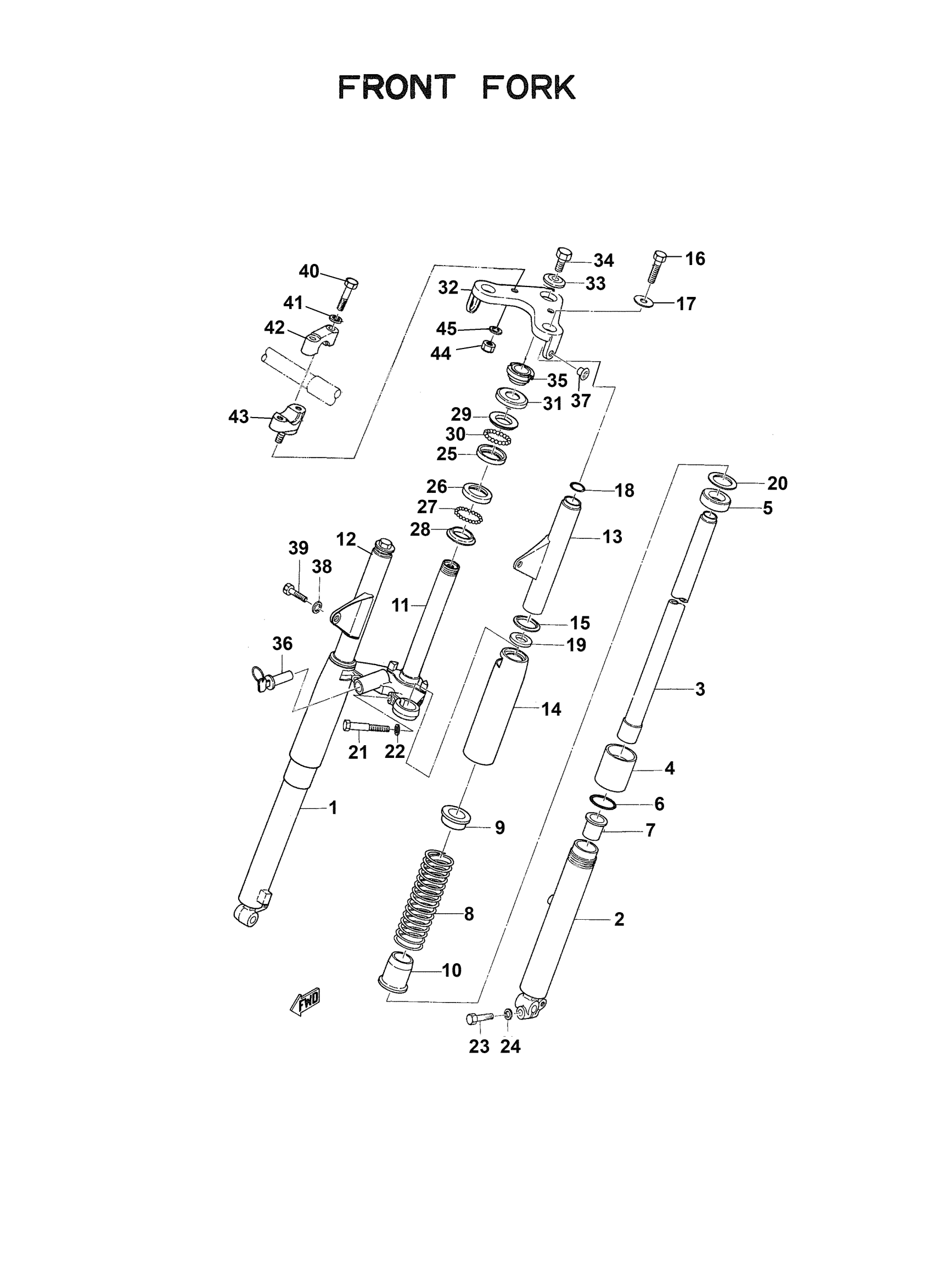

Yamaha YG1K (YG1K) 127 1965 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASY

122-23100-00-81

Unavailable

2

TUBE,OUTER 2

122-23136-00-81

Unavailable

2

TUBE,OUTER 1

196-23126-40-81

Unavailable

3

TUBE,INNER 1

196-23124-40-00

Unavailable

4

OUTER NUT

128-23150-00-00

Unavailable

5

OIL SEAL (5R6)

93110-27010-00

Unavailable

6

. O-RING

122-23147-00-00

Unavailable

7

METAL,SLIDE 1

357-23125-90-00

Unavailable

8

SPRING, FRONT FORK

124-23141-00-00

Unavailable

9

SEAT, SPRING UPPER

124-23142-00-00

Unavailable

10

SEAT, SPRING LOWER

122-23143-00-00

Unavailable

11

UNDER BRACKET

122-23340-00-33

Unavailable

12

COVER, UPPER 2

122-23131-00-81

Unavailable

13

COVER, UPPER 1

122-23121-00-81

Unavailable

14

COVER,LOWER 1

122-23123-00-29

Unavailable

15

BOLT, CAP

205-23111-40-00

Unavailable

16

BOLT, CAP

205-23111-40-00

Unavailable

17

WASHER, CAP

207-23112-00-00

Unavailable

18

GASKET

307-23114-00-00

Unavailable

19

PACKING(LAMP STAY)

164-23163-00-00

Unavailable

20

WASHER,OIL SEAL

124-23146-00-00

Unavailable

21

BOLT 1

122-23346-02-00

Unavailable

22

YBS67-10 WASHER, SPRING

92990-10100-00

$2.43

23

BOLT (682)

97013-08025-00

$6.80

24

YBS67-8 WASHER, SPRING

92990-08100-00

$4.52

25

RACE, BALL 1

BP2-23411-00-00

$8.40

26

RACE, BALL 1

B6E-23411-00-00

$7.02

27

BALL

93501-04011-00

$6.26

28

RACE, BALL 2

B6E-23412-00-00

$9.71

29

RACE, BALL 2

BP2-23412-00-00

$5.71

30

BALL

93503-16003-00

$2.14

31

COVER, BALL RACE

122-23416-00-00

$6.40

32

CROWN, HANDLE

122-23435-01-33

Unavailable

33

WASHER (1YJ)

90209-10160-00

$5.68

34

BOLT 1222345100

90105-10006-00

$9.17

35

NUT (122-23453-00)

90179-25051-00

Unavailable

36

STEERING LOCK ASY

122-23480-01-00

Unavailable

37

PLUG,SPEC'L SHAPE

90338-09060-00

Unavailable

38

WASHER, PLAIN

92990-08200-00

$2.56

39

BOLT, HEXAGON

97013-08020-00

$1.54
