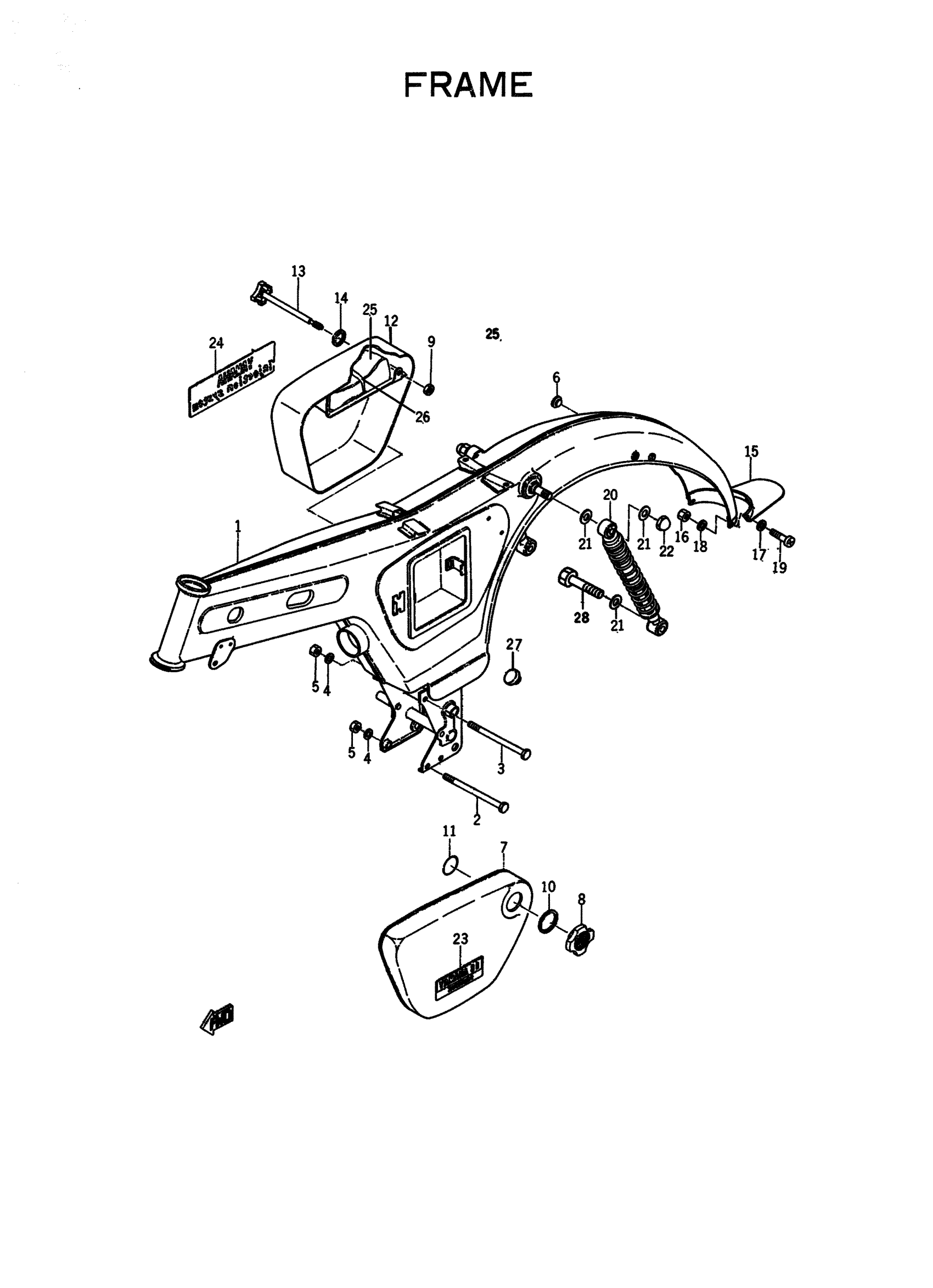

Yamaha YG1K (YG1K) 127 1965 FRAME Diagram

#

Description
Price

1

FRAME

127-21110-60-81

Unavailable

2

BOLT, FLANGE

95817-08125-00

Unavailable

3

BOLT, FLANGE(2UJ)

95814-08110-00

$5.66

4

YBS67-8 WASHER, SPRING

92990-08100-00

$4.52

5

NUT(6L2)

95333-08600-00

$3.20

6

PLUG,SPEC'L SHAPE

90338-09060-00

Unavailable

7

COVER, SIDE 1

122-21711-01-81

Unavailable

8

KNOB, SIDE COVER 1

102-21714-00-00

Unavailable

9

NUT(650)

95380-06700-00

$6.17

10

SPACER, HANDLE 2 (648)

90202-34043-00

Unavailable

11

RING, STOP

102-21718-00-00

Unavailable

12

COVER,SIDE 2

122-21721-00-81

Unavailable

13

KNOB, SIDE COVER 2

126-21724-00-00

Unavailable

14

WASHER, PLATE

90202-06015-00

Unavailable

15

FLAP

122-21621-00-00

Unavailable

16

NUT, HEXAGON

95380-06600-00

$4.13

17

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.78

18

WASHER, SPRING

92995-06100-00

$2.99

19

SCREW, PAN

98507-06014-00

$6.18

20

SHK/ABS ASSEMBLY, REAR

130-22210-00-00

Unavailable

21

WASHER, PLATE (4N0)

90201-126A7-00

$6.28

22

NUT, CROWN

90176-12006-00

Unavailable

23

EMBLEM

124-21783-00-00

Unavailable

24

EMBLEM, INJECTION

137-21782-00-00

Unavailable

25

TOOL KIT

1E7-W2810-00-00

Unavailable

26

BAND, TOOL

122-21376-00-00

Unavailable

27

STOPPER, MAIN STAND

128-27114-00-00

$6.62

28

BOLT

90101-12089-00

Unavailable
