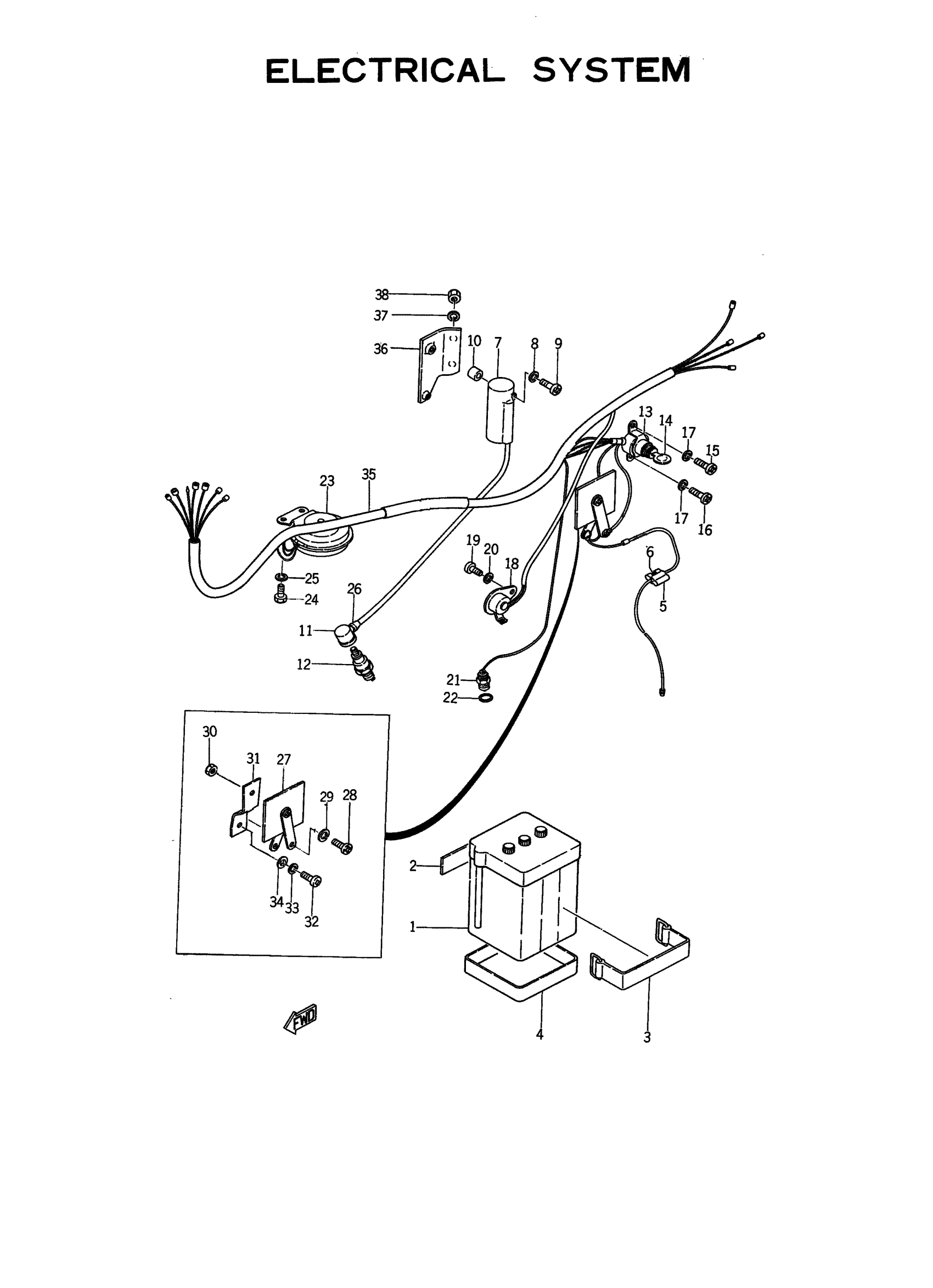

Yamaha YG1K (YG1K) 127 1965 ELECTRICAL Diagram

#

Description
Price

1

6N4A4D YUASA BATTERY

6N4-A4DY0-00-00

Unavailable

2

PAD, BATTERY

122-82121-00-00

Unavailable

3

BAND, BATTERY

26L-82131-00-00

Unavailable

4

SEAT, BATTERY

104-82122-00-00

Unavailable

5

FUSE HOLDER ASSY

55K-82150-02-00

Unavailable

6

FUSE

1A0-82151-00-00

Unavailable

7

IGNITION COIL ASSEMBLY

109-82310-30-00

Unavailable

8

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

9

SCREW, PAN HEAD (686)

98580-05035-00

Unavailable

10

COLLAR

90387-05014-00

Unavailable

11

PLUG CAP ASSY

56J-82370-00-00

$42.16

12

B7HS NGK 4PK

B7H-S0000-00-00

Unavailable

13

MAIN SWITCH ASSEMBLY

122-82508-20-00

Unavailable

15

SCREW PAN HEAD

98580-06010-00

$6.17

16

SCREW, PAN

98507-06014-00

$6.18

17

WASHER, SPRING

92995-06100-00

$2.99

18

STOPSWITCHASSY

122-82530-02-00

Unavailable

19

SCREW,PAN HEAD

92503-05012-00

Unavailable

20

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

21

NEUTRAL SWITCH ASY

146-82540-01-00

Unavailable

22

WASHER, PLATE

90201-12790-00

$6.85

23

HORN

2A7-83371-10-00

Unavailable

24

BOLT(3JP)

97017-06010-00

$2.62

25

WASHER, SPRING

92995-06100-00

$2.99

26

SEAL, H/TENS CORD

104-82373-00-00

Unavailable

27

RECTIFIER ASY

127-81970-40-00

Unavailable

28

SCREW, PAN HEAD

92503-04008-00

Unavailable

28

SCREW, PAN HEAD

92503-04008-00

Unavailable

29

YBS67-4 WASHER, SPRING

92990-04100-00

$0.60

30

NUT

95380-05700-00

Unavailable

31

PLATE, RECTIFR FTNG

122-81975-00-00

Unavailable

32

SCREW PAN HEAD

98580-06010-00

$6.17

33

WASHER, SPRING

92995-06100-00

$2.99

34

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.78

35

WIRE HARNESS ASSEMBLY

122-82590-20-00

Unavailable

36

HOLDER,COIL

127-21363-00-00

Unavailable

37

WASHER, SPRING

92995-06100-00

$2.99

38

NUT(650)

95380-06700-00

$6.17
