Description

Price

1

REAR FENDER ASSY (DEEP PURPLISH BLUE SOLID E)

1TD-F1600-00-00

$98.75

2

STAY, REAR

18P-21643-00-00

$29.29

3

BOLT, BUTTON HEAD

92012-08016-00

$6.98

4

STAY, REAR

18P-21644-00-00

$29.29

5

BOLT, BUTTON HEAD

92012-08016-00

$6.98

6

PLATE, SPRING

4XV-2177L-01-00

$6.20

7

HEAD

8HG-28386-00-00

$19.55

8

PROTECTOR

1TD-21652-00-00

$11.95

9

COVER, REAR FENDER 2

18P-2163E-00-00

$9.49

10

COVER, REAR FENDER 3

1TD-2163F-00-00

$10.06

11

FLAP

1TD-F1621-00-00

$15.83

12

STAY 1

1TD-2164F-00-00

$36.58

13

STAY 3

1TD-2164H-00-00

$32.80

14

SCREW, BINDING

90154-05043-00

$6.26

15

BOLT, BUTTON HEAD

92012-06030-00

$2.82

16

COLLAR

90387-06205-00

$5.26

17

NUT, U FLANGE

95604-06200-00

$2.35

18

WASHER, PLATE

90201-06380-00

$0.57

19

FLAP

1TD-F1691-00-00

$15.83

20

STAY 2

1TD-2164G-00-00

$41.98

21

STAY 4

1TD-2164J-00-00

$32.80

22

SCREW, BINDING

90154-05043-00

$6.26

23

BOLT, BUTTON HEAD

92012-06030-00

$2.82

24

COLLAR

90387-06205-00

$5.26

25

NUT, U FLANGE

95604-06200-00

$2.35

26

WASHER, PLATE

90201-06380-00

$0.57

27

BOLT, FLANGE(4LN)

95817-08025-00

$6.17

28

WASHER, PLATE

90201-08048-00

$5.75

29

NUT, SELF-LOCKING

95602-08200-00

$2.77

30

BOLT, BUTTON HEAD

92012-08020-00

$2.15

31

WASHER, PLATE

90201-08043-00

$5.77

32

COVER, REAR FENDER

18P-2163A-01-00

$6.88

33

BOLT

90109-06249-00

$4.66

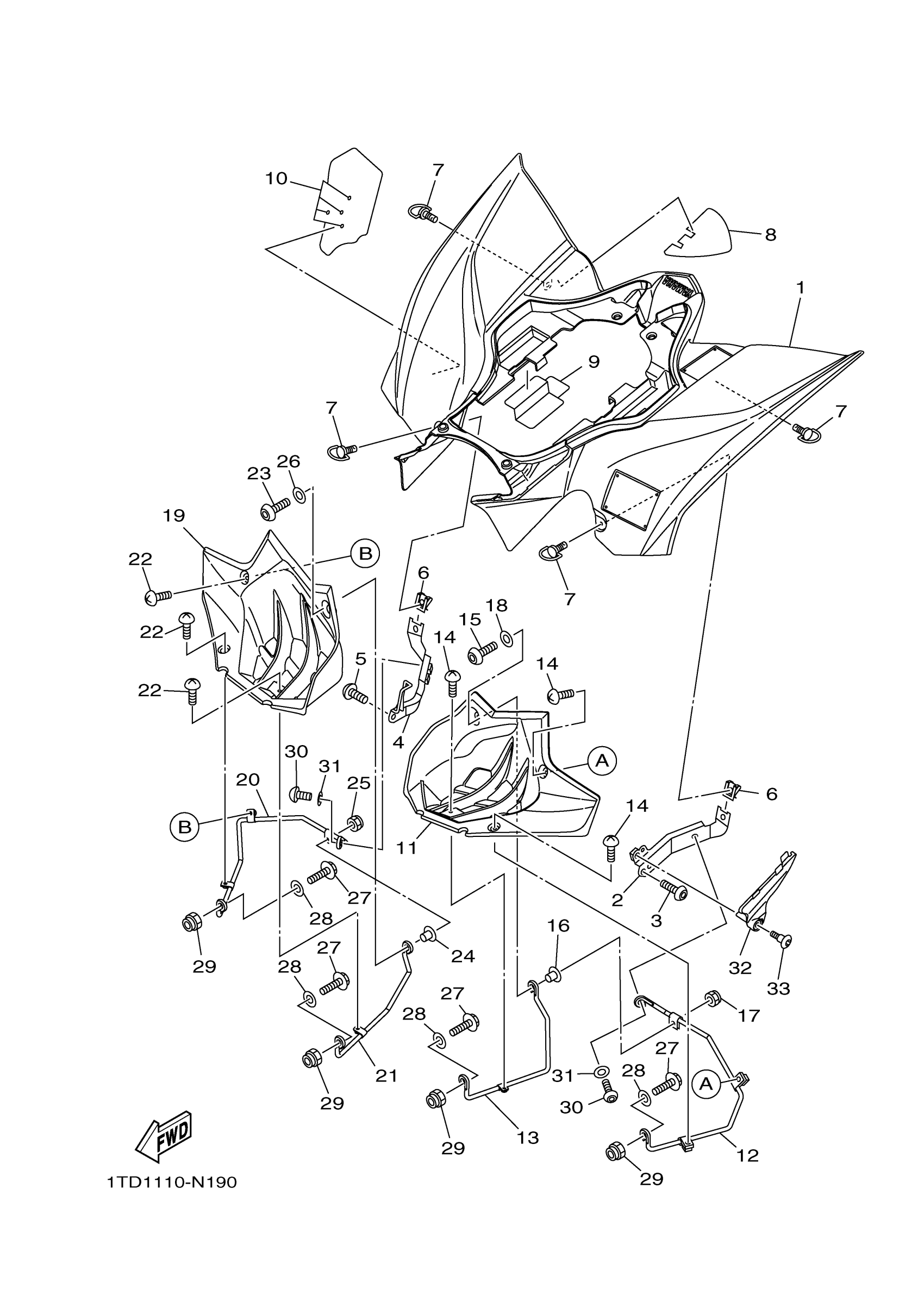

Yamaha YFZ45YSXTL (YFZ450R) DF18 2026 REAR FENDER Diagram
