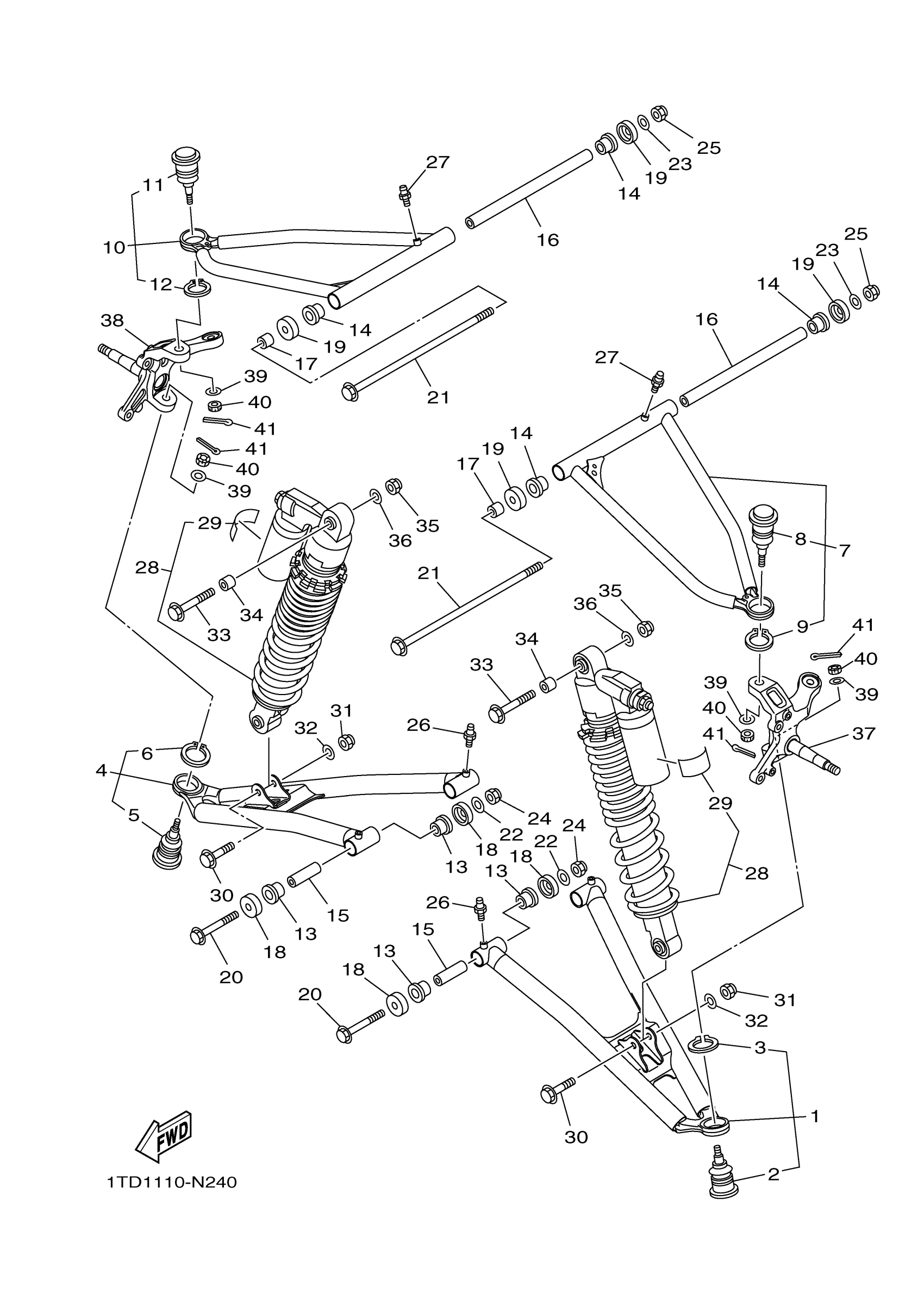

Yamaha YFZ45YSXTL (YFZ450R) DF18 2026 FRONT SUSPENSION & WHEEL Diagram

#

Description
Price

1

FRONT LOWER ARM CO

1TD-F3570-00-00

$136.21

2

BALL JOINT

5LP-23579-00-00

$57.01

3

CIRCLIP(4A6)

99009-30400-00

$6.55

4

FRONT LOWER ARM CO

1TD-F3580-00-00

Unavailable

5

BALL JOINT

5LP-23579-00-00

$57.01

6

CIRCLIP(4A6)

99009-30400-00

$6.55

7

FRONT UPPER ARM CO

1TD-F3540-00-00

$84.73

8

BALL JOINT

5LP-23579-00-00

$57.01

9

CIRCLIP(4A6)

99009-30400-00

$6.55

10

FRONT UPPER ARM CO

1TD-F3550-00-00

$84.73

11

BALL JOINT

5LP-23579-00-00

$57.01

12

CIRCLIP(4A6)

99009-30400-00

$6.55

13

BUSH, SOLID(3GG)

90381-15088-00

$20.42

14

BUSH, SOLID(3GG)

90381-15088-00

$20.42

15

COLLAR(1UY)

90387-101R3-00

$17.22

16

COLLAR

90387-10069-00

$29.15

17

COLLAR

90387-10043-00

$22.60

18

COVER, THRUST 1

1UY-23517-01-00

$6.38

19

COVER, THRUST 1

1UY-23517-01-00

$6.38

20

BOLT, FLANGE

90105-10135-00

$5.14

21

BOLT, FLANGE

90105-10301-00

$13.85

22

WASHER, PLATE

90201-10037-00

$6.49

23

WASHER, PLATE

90201-10037-00

$6.49

24

NUT, SELF-LOCKING

90185-10012-00

$2.98

25

NUT, SELF-LOCKING

90185-10012-00

$2.98

26

NIPPLE, GREASE

93700-06M03-00

$7.15

27

NIPPLE, GREASE

93700-06M03-00

$7.15

28

SHOCK ABSORBER ASSY 2

BKD-F3390-01-00

$557.99

29

LABEL, WARNING

BB5-F2259-00-00

$2.14

30

BOLT, FLANGE

90105-10339-00

$5.72

31

NUT, SELF-LOCKING

90185-10012-00

$2.98

32

WASHER, PLATE

90201-10035-00

$3.56

33

BOLT, FLANGE

90105-10351-00

$6.57

34

COLLAR

90387-10043-00

$22.60

35

NUT, SELF-LOCKING

90185-10012-00

$2.98

36

WASHER, PLATE

90201-10037-00

$6.49

37

STEERING KNUCKLE ASSY (LEFT)

18P-23501-00-00

$264.20

38

STEERING KNUCKLE ASSY (RIGHT)

18P-23502-00-00

$261.91

39

WASHER (25G)

90209-10229-00

$5.86

40

NUT, CASTLE

90171-10001-00

$2.85

41

PIN, COTTER

91490-20025-00

$1.31
