Description

Price

1

CRANKCASE ASSY

18P-15100-00-00

$798.33

2

PIN, DOWEL

99530-14016-00

$3.20

3

NOZZLE 3

2S2-15155-10-00

$37.63

4

BUSH, SOLID

90380-10002-00

$2.92

5

BOLT

91312-06050-00

$3.91

6

BOLT

91312-06060-00

$7.45

7

BOLT, SOCKET

91314-06080-00

$3.40

8

BOLT(3MA)

91312-06016-00

$4.89

9

BOLT, FLANGE

95022-10016-00

$6.28

10

GASKET (1KH,1.0T)

90430-10148-00

$4.74

11

PLATE, BEARING COVER

4JT-15381-01-00

$10.54

12

PLATE, BEARING COVER

18P-15383-00-00

$6.72

13

SCREW, COUNTERSUNK

90151-08003-00

$5.54

14

SCREW, COUNTERSUNK

90151-06052-00

$6.38

15

PLATE, BEARING COVER

2S2-15388-00-00

$4.77

16

PLATE, STOPPER 2

2S2-18562-00-00

$6.25

17

BOLT, FLANGE

95022-06012-00

$3.00

18

PIN, DOWEL(3VD)

99530-10114-00

$2.23

19

O-RING (371)

93210-10197-00

$5.86

20

COLLAR(1LV)

90387-164N2-00

$20.38

21

PIN, DOWEL

99530-14016-00

$3.20

22

CLAMP

90462-10056-00

$9.35

23

CLAMP

90461-06001-00

$2.58

24

BOLT(3MA)

91312-06016-00

$4.89

25

HOLDER

18P-15378-00-00

$28.08

26

BOLT, FLANGE

95022-06012-00

$3.00

27

GASKET 256113960000

90430-06014-00

$7.23

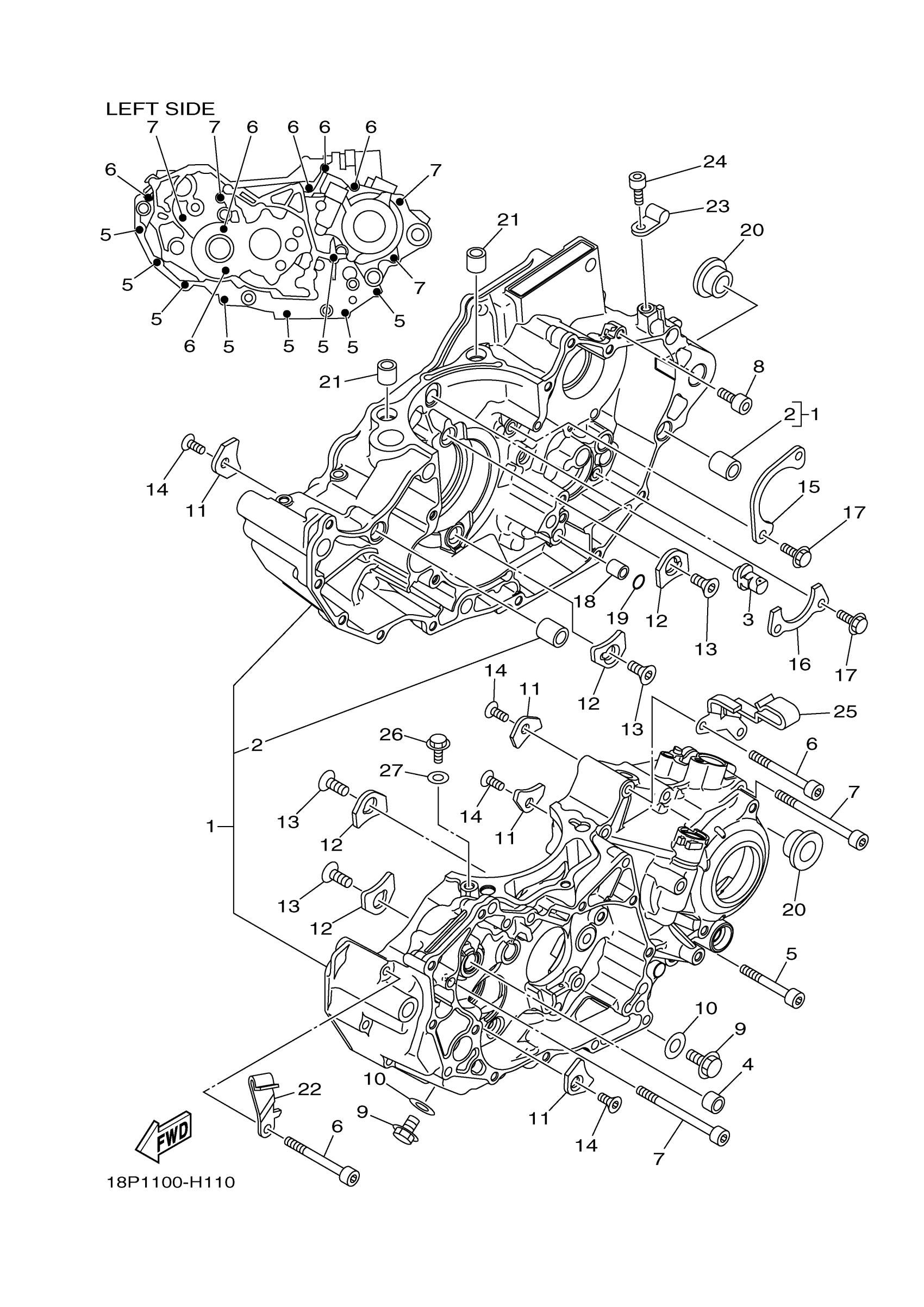

Yamaha YFZ45YSXTL (YFZ450R) DF18 2026 CRANKCASE Diagram
