Description

Price

1

GEAR, PRIMARY DRIVE

2S2-16111-60-00

$141.62

2

WASHER, CONICAL SPRING(83R)

90208-25045-00

$12.88

3

NUT

90179-20009-00

$17.49

4

PRIMARY DRIVEN GEAR COMP.

BKD-16150-00-00

$507.03

5

BOSS, CLUTCH

1TD-16371-00-00

$122.75

6

PLATE, CLUTCH 2

4X7-16325-10-00

$15.32

7

PLATE, CLUTCH 1

1TD-16324-00-00

$7.46

8

PLATE, FRICTION

5VY-16321-00-00

$18.21

9

PLATE, FRICTION 2

1TD-16331-00-00

$22.22

10

PLATE, PRESSURE 1

1TD-16351-00-00

$73.65

11

SPRING, CLUTCH 1

1TD-16333-00-00

$7.51

12

WASHER

1TD-16774-00-00

$4.74

13

PLATE, PRESSURE 2

1TD-16352-00-00

$6.72

14

SCREW, SPRING

1TD-16337-00-00

$1.63

15

SPRING.,CUSHION

1TD-16383-01-00

$26.34

16

PLATE, SEAT

1TD-16384-00-00

$14.98

17

PLATE, CLUTCH 2

1TA-16325-10-00

$10.18

17

PLATE, CLUTCH 2

4X7-16325-10-00

$15.32

17

PLATE, CLUTCH 2

5JG-16325-10-00

$7.40

18

PLATE, CLUTCH 2

1TA-16325-10-00

$10.18

18

PLATE, CLUTCH 2

4X7-16325-10-00

$15.32

18

PLATE, CLUTCH 2

5JG-16325-10-00

$7.40

19

PLATE, THRUST 1

5TA-16154-00-00

$19.29

20

ABSORBER 3

1TD-16178-00-00

$26.06

21

WASHER, LOCK

90215-20005-00

$6.20

22

NUT (34L)

90170-20327-00

$16.98

23

ROD, PUSH 1

5TG-16356-00-00

$37.02

24

BEARING, THRUST (713)

93340-21505-00

$16.62

25

WASHER, PLATE(1RE)

90201-125L6-00

$6.29

26

CIRCLIP (4G0)

93440-10085-00

$6.17

27

BALL (1M1)

93515-32029-00

$2.77

28

ROD, PUSH 2

18P-16357-01-00

$26.39

29

AXLE, PUSH LEVER

18P-16382-00-00

$60.60

30

LEVER, PUSH

18P-16342-00-00

$27.26

31

WASHER, PLATE

90201-10032-00

$1.09

32

CIRCLIP(10W)

99009-10400-00

$3.91

33

BEARING

93317-11287-00

$20.48

34

OIL SEAL (4G0)

93102-12224-00

$8.35

35

CIRCLIP(1EV)

99009-20500-00

$1.23

36

SPRING, TORSION

90508-16061-00

$4.45

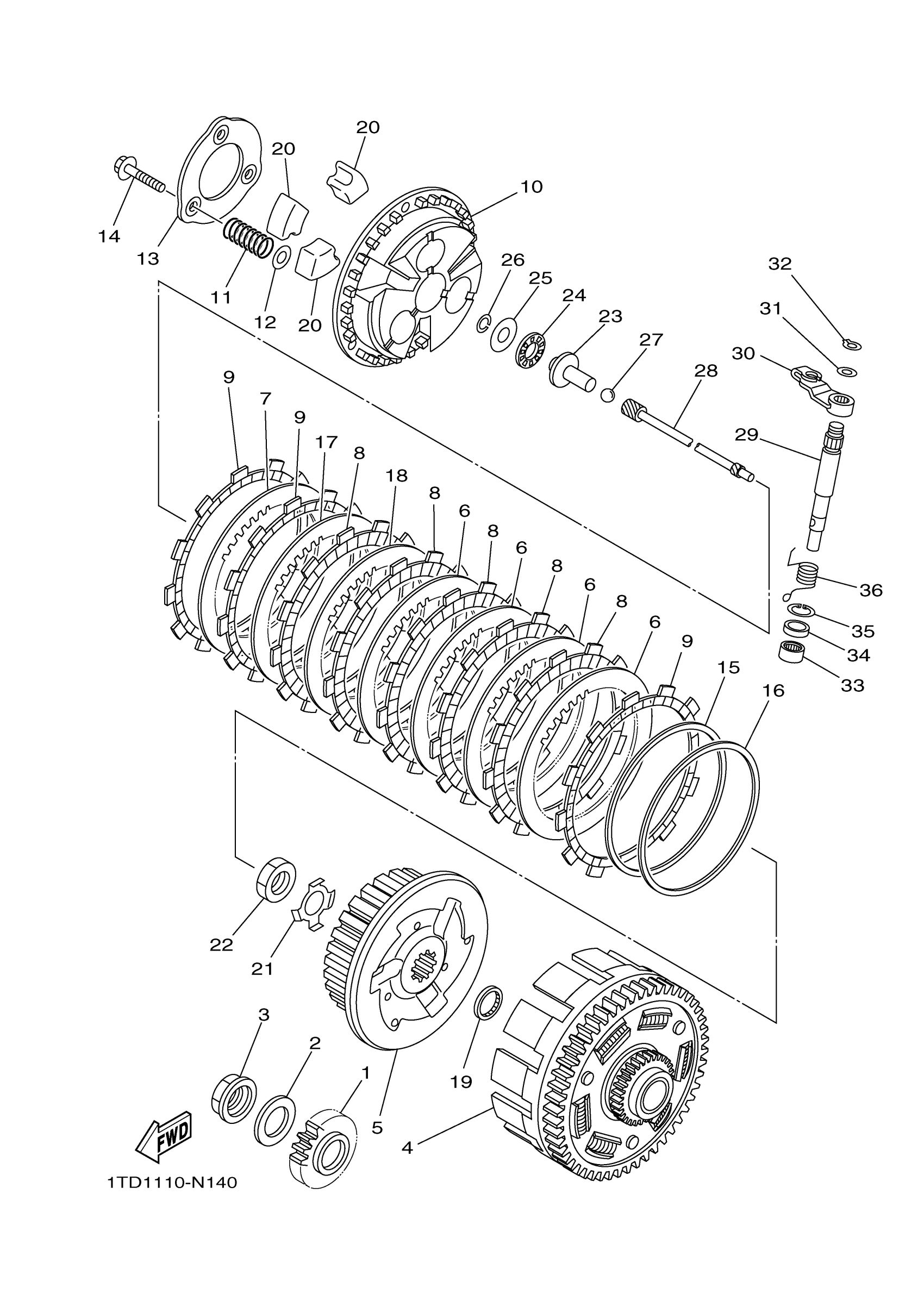

Yamaha YFZ45YSXTL (YFZ450R) DF18 2026 CLUTCH Diagram
