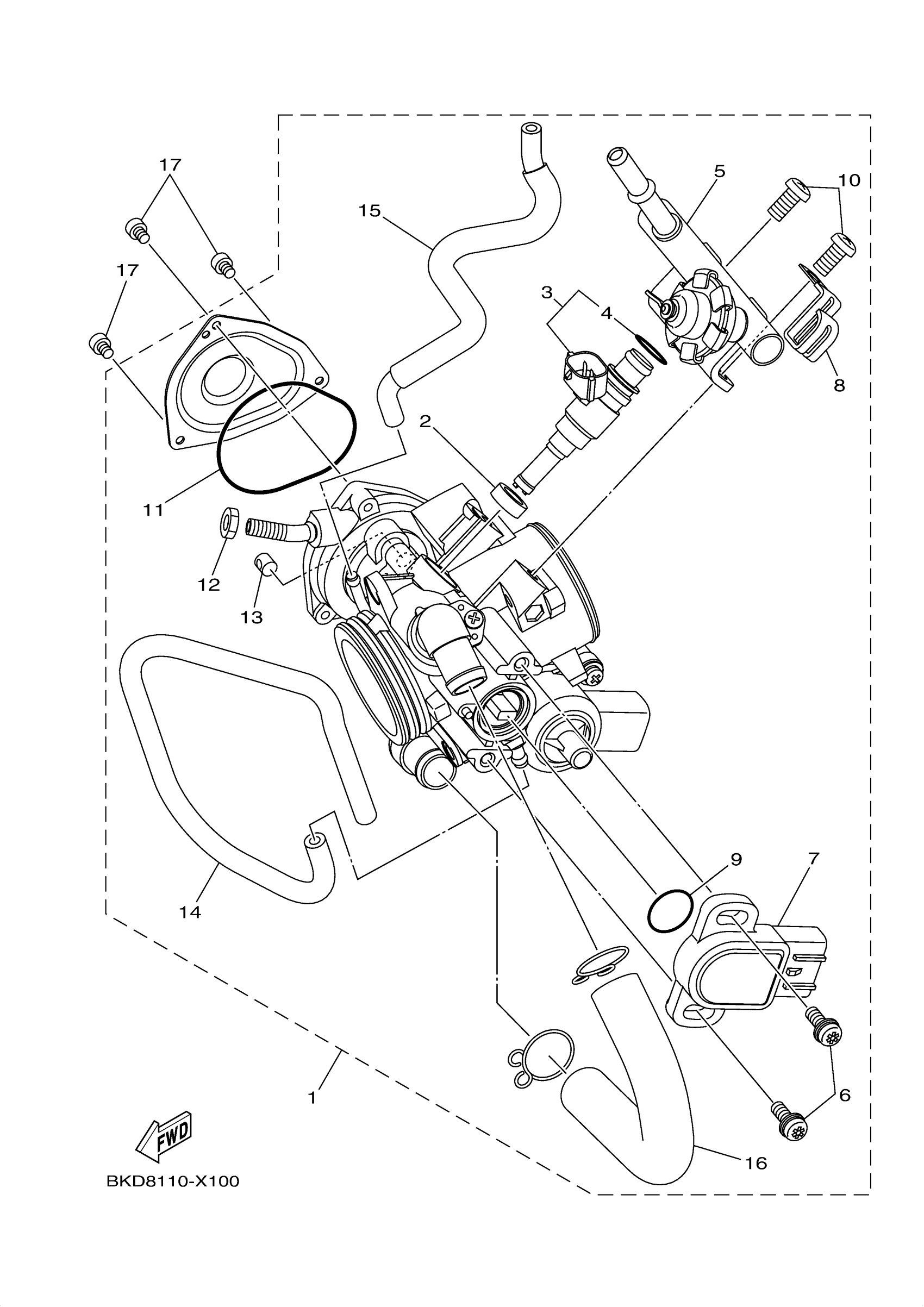

Yamaha YFZ45YSSTG (YFZ450R SE) DF1C 2026 THROTTLE BODY ASSY 1 Diagram

Description

Price

THROTTLE BODY ASSY

1TD-13750-02-00

$941.99

GASKET, MANIFOLD

8FP-13556-00-00

$12.27

INJECTOR ASSY

3B4-13761-00-00

$198.78

O-RING

5PS-14147-00-00

$10.95

DELIVERY PIPE ASSY 1

18P-13160-00-00

$272.52

SCREW

8CC-14216-10-00

$7.12

THROTTLE SENSOR AS

3B4-85885-01-00

$63.34

JET

5JW-14945-00-00

$5.43

O-RING

5YP-14562-00-00

$6.62

SCREW, PAN

98517-06012-00

$3.14

O-RING

5LP-14147-00-00

$10.17

NUT, CABLE ADJUSTING

1S3-14161-00-00

$6.38

GUIDE, CABLE

1UY-14155-00-00

$15.83

HOSE, AIR

18P-13543-00-00

$27.20

PIPE 1

18P-14348-00-00

$49.49

HOSE 1

18P-13545-00-00

$92.25

BOLT

91312-04006-00

$2.71
