Description

Price

1

HANDLEBAR

BW2-F6111-10-00

$381.89

2

COLLAR

90387-02001-00

$4.52

3

RIVET, BLIND

90267-24143-00

$6.60

4

GRIP

5FU-F6241-10-00

$10.31

5

WEIGHT

18P-2622H-00-00

$24.32

6

GROMMET

90480-11006-00

$3.08

7

THROTTLE LEVER ASS

1S3-26250-02-00

$112.26

8

CAP, GEAR

1S3-2628F-00-00

$15.04

9

GASKET

1S3-2628G-00-00

$8.91

10

NUT, U

95617-05100-00

$6.68

11

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

12

SPRING

1NV-26304-00-00

$11.17

13

COLLAR

1NV-26259-01-00

$6.43

14

COLLAR

1NV-2625K-00-00

$5.86

15

OIL SEAL (9X15X4-256)

93104-09025-00

$5.46

16

WASHER

1NV-26129-00-00

$6.43

17

LEVER, THROTTLE

1S3-2625G-01-00

$52.34

18

SCREW(3HE)

90149-04278-00

$0.74

19

NUT, HEXAGON SMALL

95317-05700-00

$6.18

20

SCREW, PAN HEAD

98517-05020-00

$1.35

21

HOLDER, LEVER LOWER 1

1S3-82913-00-00

$11.28

22

SCREW, PAN HEAD

98517-05020-00

$1.35

23

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

24

CABLE, THROTTLE 1

18P-26311-00-00

$33.12

25

COLLAR

1UY-26259-00-00

$17.31

26

COVER, HANDLE LEVER 1

5TG-26372-00-00

$11.25

27

CABLE, CLUTCH

18P-26335-00-00

$44.34

28

BOOT, CABLE

1C3-26342-50-00

$10.42

29

WIRE, BRAKE 1

18P-26341-00-00

$62.38

30

PROTECTOR, HANDLEB

18P-26124-03-00

$11.54

31

BAND, SWITCH CORD

437-83936-01-00

$4.63

32

CLAMP

90464-16001-00

$1.71

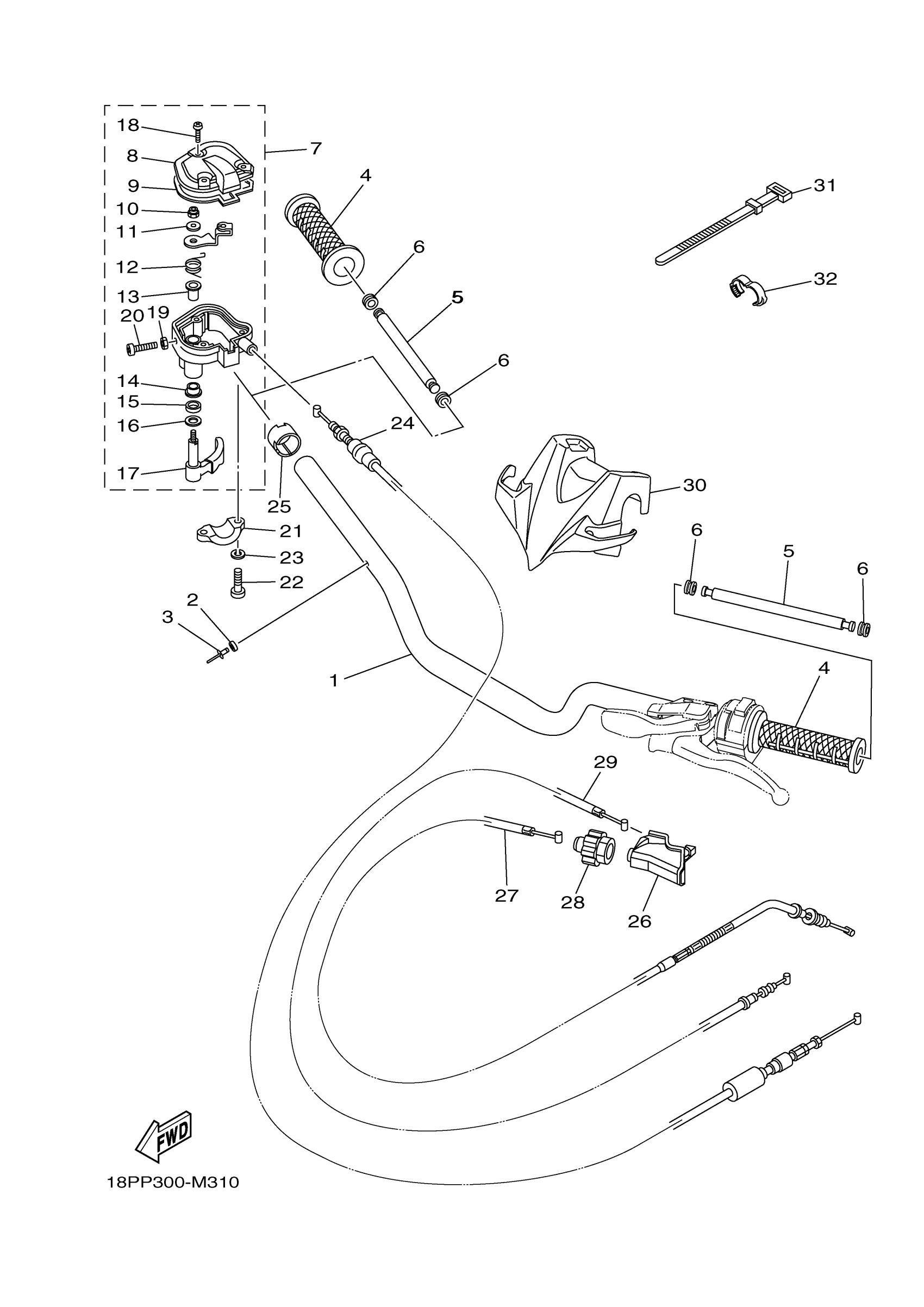

Yamaha YFZ45YSSTG (YFZ450R SE) DF1C 2026 STEERING HANDLE & CABLE Diagram

. WASHER, SPECIAL

YBS67-5 WASHER, SPRING
