Description

Price

1

TANK, RECOVERY

18P-21871-00-00

$39.40

2

BOLT, WITH WASHER

90119-06152-00

$2.74

3

CAP

20S-21875-10-00

$13.94

4

ELBOW

26H-21828-00-00

$21.94

5

CLIP(72X)

90467-11M08-00

$2.36

6

CLIP 101235600

90467-08003-00

$6.13

7

CLIP 101235600

90467-08003-00

$6.13

8

HOSE (L420)

90445-092K1-00

$10.63

9

CLAMP (6E5)

90465-13M11-00

$5.72

10

HOSE (L1500)

90445-090F6-00

$26.35

11

CLAMP(53Y)

90464-15065-00

$5.72

12

CLAMP

90464-15M08-00

$3.54

13

COVER, RADIATOR

1TD-E2467-00-00

$13.05

14

RIVET(4JH)

90269-07076-00

$6.00

15

COVER, TOP

1TD-F171A-C0-00

$89.34

16

PAD, SEAT

22W-24741-00-00

$7.72

17

HEAD

8HG-28386-00-00

$19.55

18

COVER, SIDE 1

1TD-F1711-B0-00

$96.65

19

COVER, SIDE 2

1TD-F1721-B0-00

$96.65

20

DAMPER, PLATE 2

1LJ-2414J-00-00

$6.38

21

RIVET

90269-07010-00

$3.75

22

COVER, SIDE 3

1TD-F1731-80-00

$133.22

23

COVER, SIDE 4

1TD-F1741-80-00

$133.95

24

PLATE, SPRING

4XV-2177L-01-00

$6.20

25

COLLAR

90387-06170-00

$6.25

26

BOLT,HEX. SOCKET BUTTON

90111-06084-00

$4.92

27

BOLT

90109-06172-00

$2.71

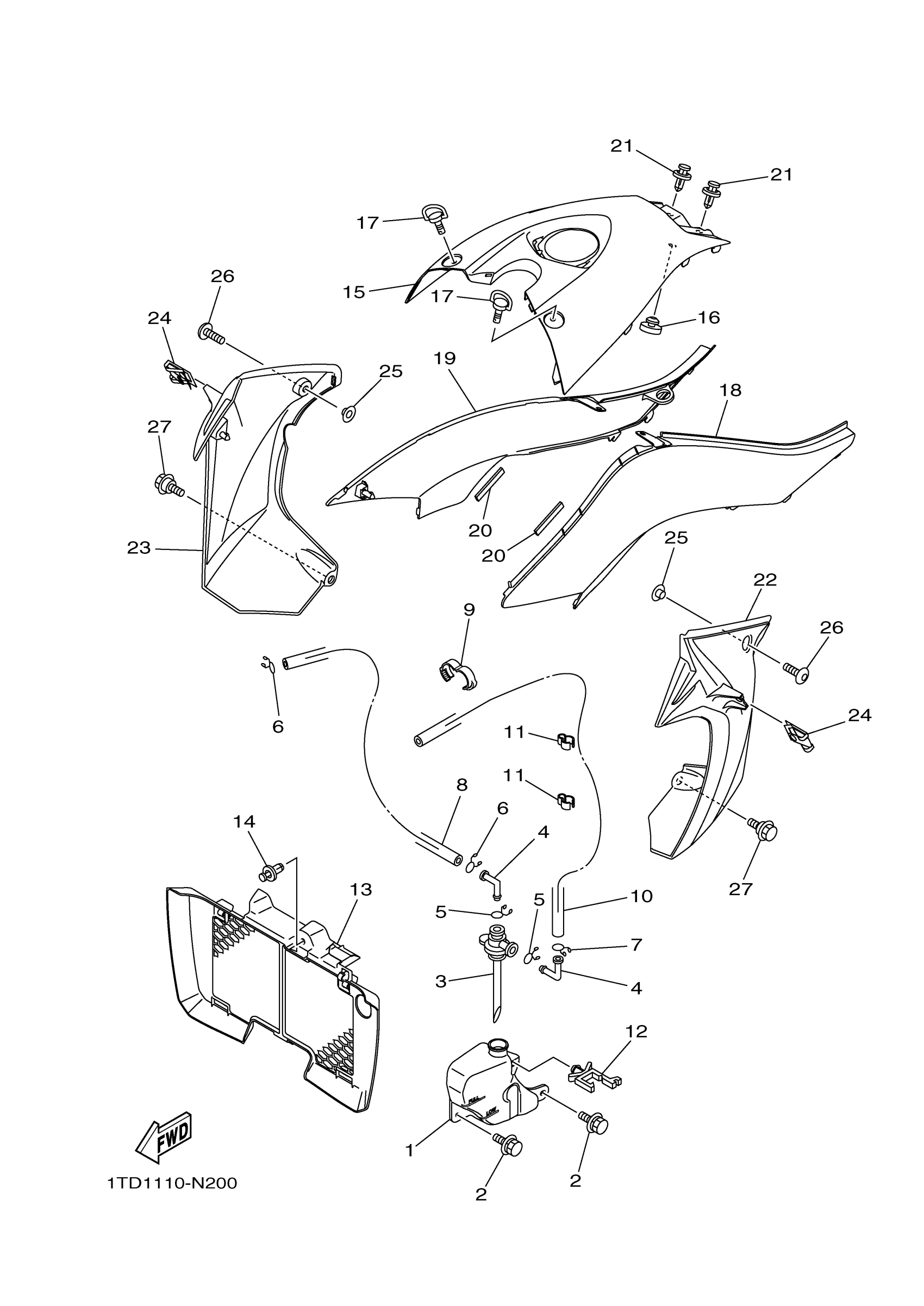

Yamaha YFZ45YSSTG (YFZ450R SE) DF1C 2026 SIDE COVER Diagram
