Description

Price

1

WHEEL,REAR

1TD-F5390-11-00

$228.09

2

AT20X10R9 MS22 TL ( ITD )

94110-09802-00

$283.58

3

VALVE, RIM

93900-00812-00

$7.49

4

GRAPHIC 2

BFK-F51G2-50-00

$50.06

5

WHEEL,REAR

1TD-F5390-11-00

$228.09

6

AT20X10R9 MS22 TL ( ITD )

94110-09802-00

$283.58

7

VALVE, RIM

93900-00812-00

$7.49

8

GRAPHIC 2

BFK-F51G2-50-00

$50.06

9

COLLAR, WHEEL

18P-25383-00-00

$147.30

10

BOLT, SERRATION

90114-10013-00

$4.55

11

NUT, FLANGE(3BM)

95704-10500-00

$1.71

12

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.00

13

WASHER, PLATE

90201-16023-00

$6.78

14

NUT, CASTLE

90171-16002-00

$17.60

15

PIN, COTTER

90252-03001-00

$1.82

16

COLLAR, SPROCKET AXLE

18P-25386-00-00

$147.30

17

SPROCKET, DRIVEN (38T)

5TG-25438-10-00

$37.78

18

BOLT

90109-10013-00

$6.11

19

NUT, SELF-LOCKING

90185-10011-00

$3.92

20

BRACKET, DISC

1TD-F5712-00-00

$39.59

21

COLLAR

90387-40001-00

$18.94

22

AXLE, WHEEL

BKD-F5381-00-00

$287.02

23

NUT

90179-38001-00

$58.60

24

WASHER, CONICAL SPRING

90208-39001-00

$9.10

25

BOLT, SET (8K2)

90113-06039-00

$6.97

26

CIRCLIP

18P-25415-00-00

$6.38

27

O-RING

93210-37003-00

$5.78

28

CHAIN (DID520MXV4-

94582-38098-00

$101.37

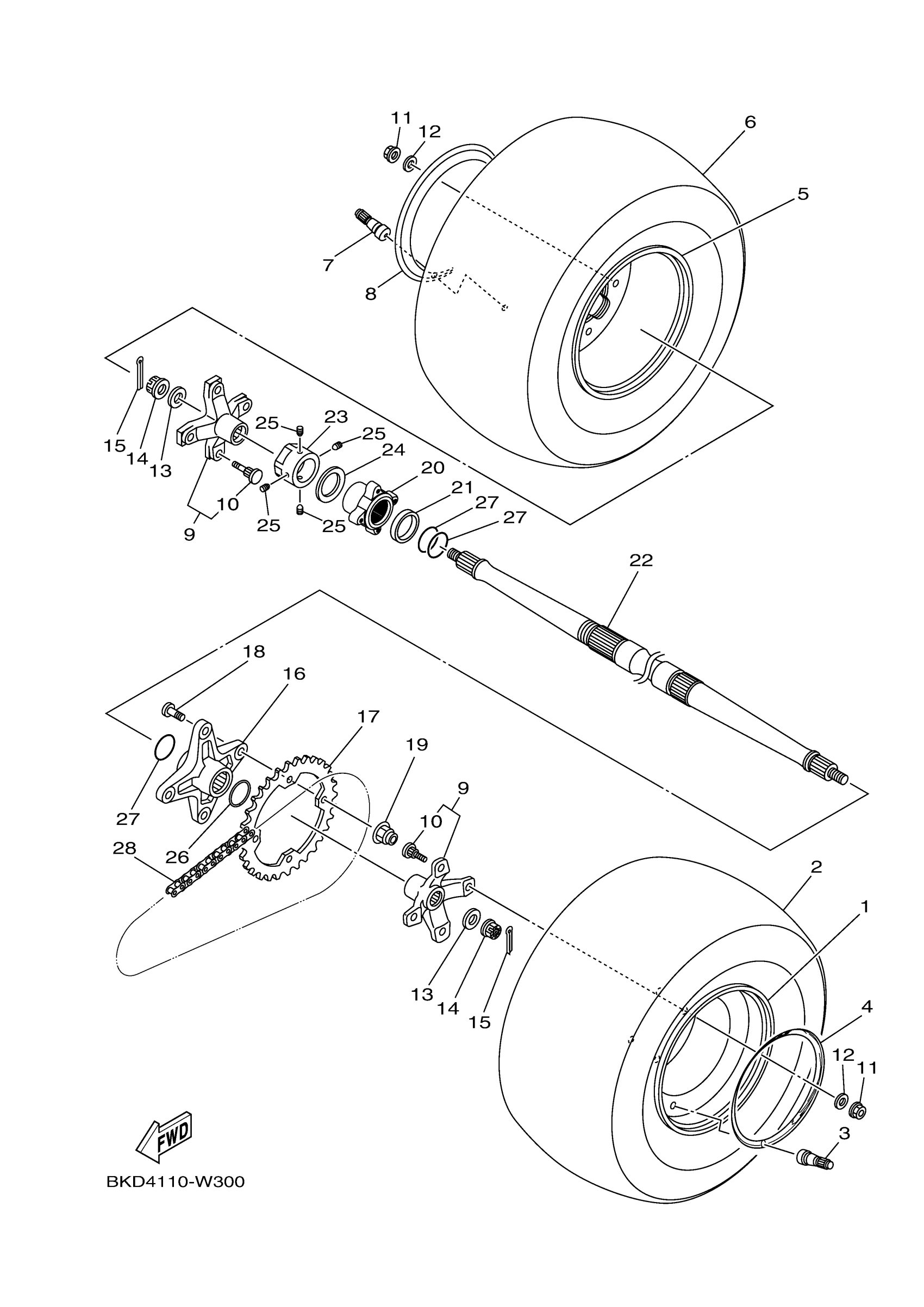

Yamaha YFZ45YSSTG (YFZ450R SE) DF1C 2026 REAR WHEEL Diagram
