Description

Price

1

REAR MASTER CYLINDER ASSY

1S3-2580E-00-00

$110.87

2

CYLINDER KIT, REAR MASTER

31A-W0042-50-00

$93.80

3

JOINT

1AE-2582A-00-00

$11.55

4

O-RING (22U)

93210-15566-00

$5.78

5

SCREW, PAN HEAD

98517-04012-00

$3.28

6

WASHER(6TA)

92907-04100-00

$5.98

7

WASHER(JF2)

92907-04600-00

$1.23

8

NUT, HEXAGON SMALL

95317-08700-00

$7.05

9

JOINT

2YK-27222-00-00

$19.20

10

BOLT, BUTTON HEAD

92012-08035-00

$3.76

11

COVER 1

18P-27453-00-00

$12.63

12

BOLT, BUTTON HEAD

92012-08012-00

$6.37

13

PIN, CLEVIS

90240-08005-00

$6.17

14

WASHER, PLATE 1562722600

90201-08083-00

$6.29

15

PIN, COTTER

91490-16020-00

$6.23

16

HOSE, RESERVOIR

1TD-F5895-00-00

$29.20

17

CLIP (7K7)

90467-11044-00

$5.10

18

CLIP (5K4)

90467-14057-00

$7.51

19

TANK, RESERVOIR

5JJ-25894-01-00

$37.55

20

CAP, RESERVOIR

3XP-25852-50-00

$18.37

21

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$19.62

22

BUSH,DIAPHRAGM

2VN-25855-00-00

$9.49

23

DAMPER

18P-25897-00-00

$16.58

24

BOLT, WITH WASHER

90119-06177-00

$6.15

25

BRACKET 1

18P-27263-01-00

$22.15

26

BOLT, FLANGE

95022-06012-00

$3.00

27

HOSE, BRAKE 3

1TD-F5874-02-00

$25.95

28

WASHER, PLATE(481)

90201-10118-00

$2.91

29

BOLT, UNION

90401-10015-00

$9.89

30

HOLDER, BRAKE HOSE

1TD-F5886-00-00

$5.60

31

HOLDER, CABLE

1TD-F3317-00-00

$7.86

32

BOLT, FLANGE

90105-06090-00

$6.23

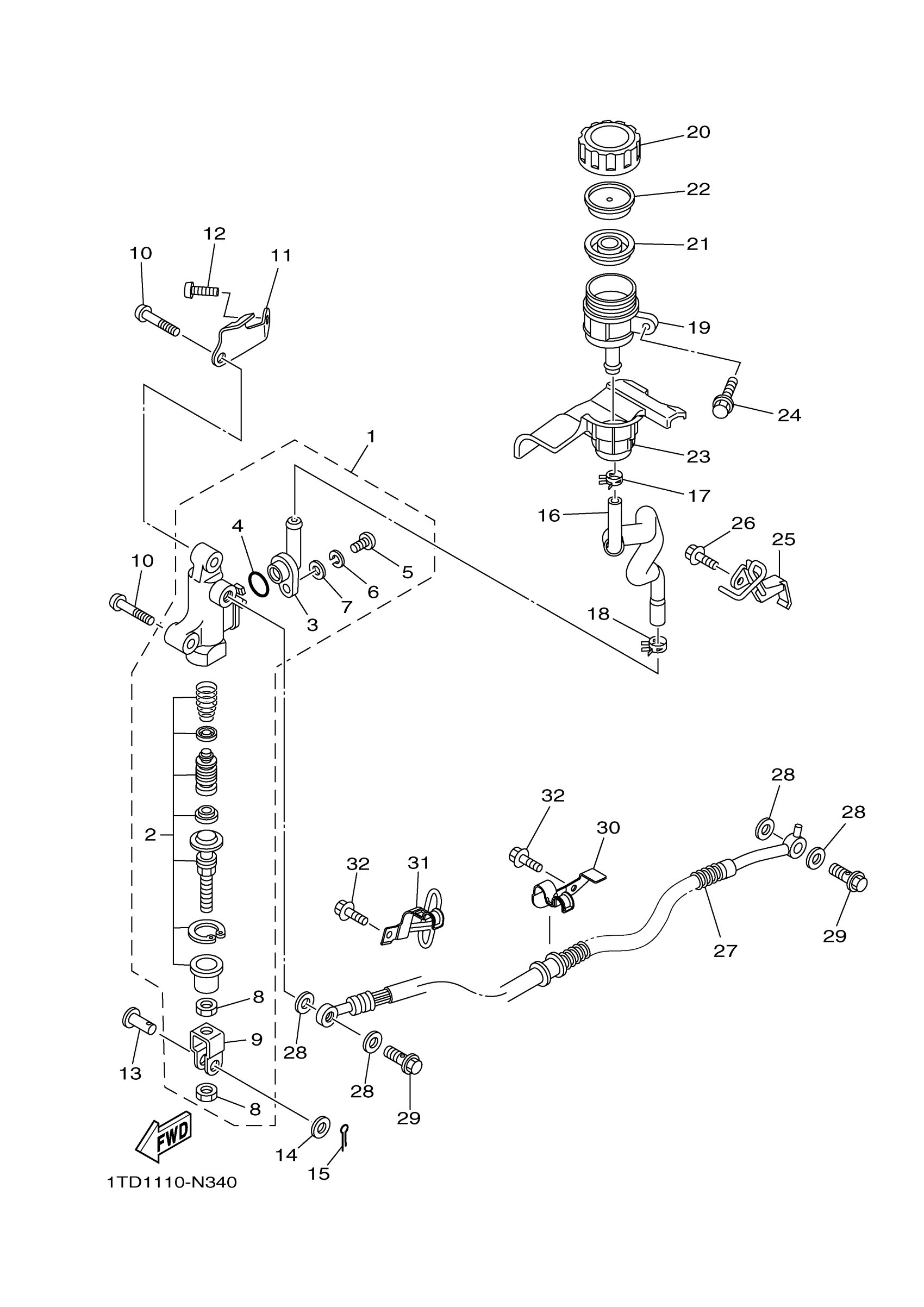

Yamaha YFZ45YSSTG (YFZ450R SE) DF1C 2026 REAR MASTER CYLINDER Diagram
