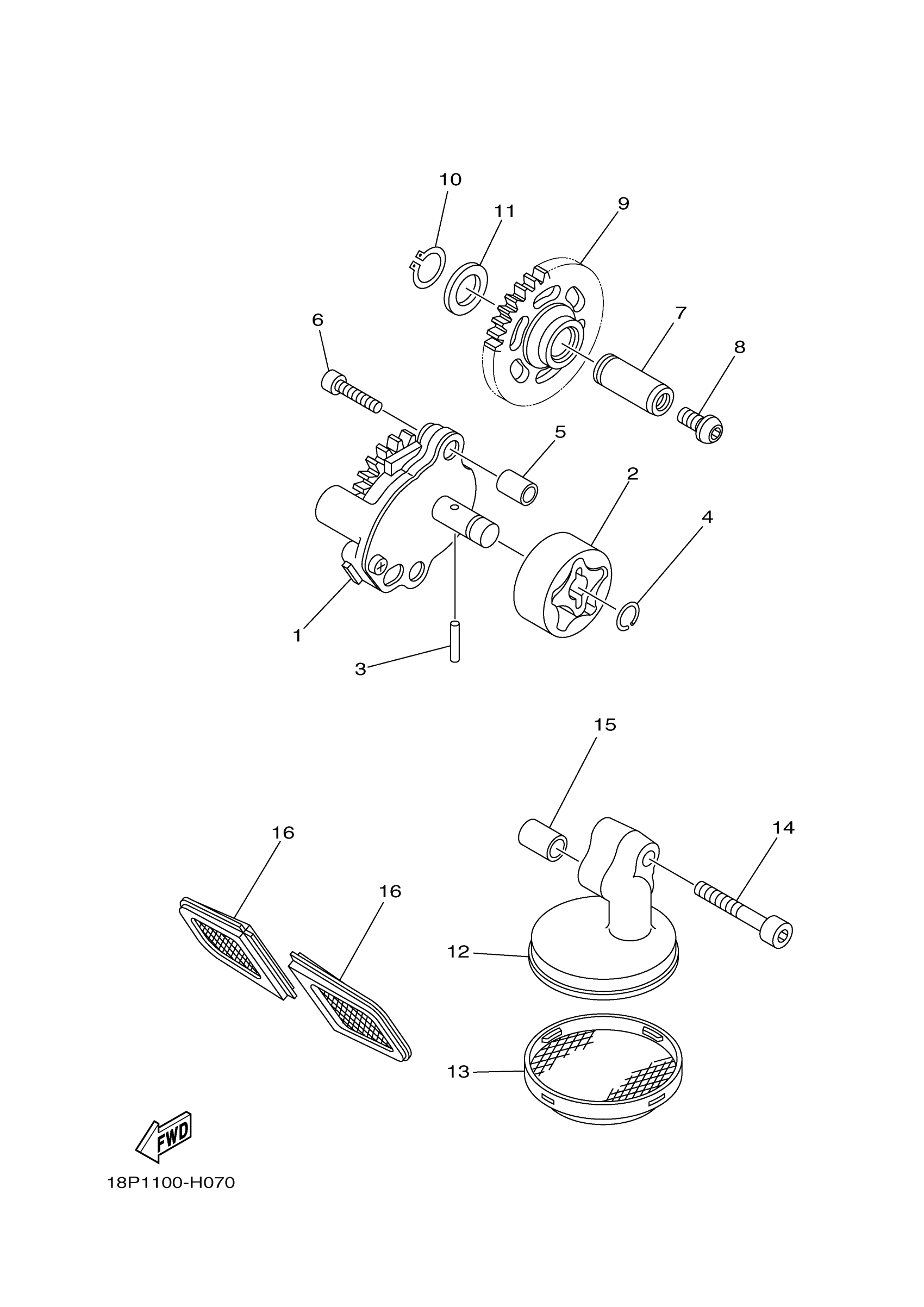

Yamaha YFZ45YSSTG (YFZ450R SE) DF1C 2026 OIL PUMP Diagram

Description

Price

OIL PUMP ASSY

18P-13300-00-00

$173.44

ROTOR ASSY 2

5TA-13320-00-00

$41.97

PIN, DOWEL(1HX)

93603-16219-00

$5.10

CIRCLIP(1WG)

93440-10153-00

$1.62

PIN, DOWEL

99530-08012-00

$6.62

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.82

SHAFT, IDLE GEAR

2S2-13342-00-00

$20.85

SCREW

90149-06068-00

$3.26

GEAR, OIL PUMP IDL

BKD-13341-00-00

$48.15

CIRCLIP(10Y)

99009-12400-00

$3.08

WASHER PLATE 164185720000

90201-12166-00

$6.29

HOUSING, STRAINER

18P-13412-01-00

$25.34

STRAINER, OIL

18P-13411-00-00

$14.95

BOLT(J17)

91312-06035-00

$2.38

PIN, DOWEL(3VD)

99530-10114-00

$2.23

STRAINER 2

18P-13421-00-00

$19.06
