Description

Price

1

FRONT FRAME COMP.

1TD-F1101-39-00

$2,156.35

2

REAR FRAME COMP.

18P-21190-39-00

$696.77

3

SCREW

90149-10034-00

$7.51

4

BRKT., BRAKE PIPE 1

18P-2133H-00-00

$18.03

5

RIVET, BLIND

90267-48016-00

$7.85

6

STAY, ENGINE 2

18P-21315-01-00

$47.06

7

BOLT

97013-08035-00

$4.80

8

WASHER, PLATE

90201-08053-00

$5.63

9

BOLT, HEXAGON SOCKET HEAD

90110-10029-00

$6.45

10

WASHER, PLATE

90201-10036-00

$6.28

11

STAY, ENGINE 3

18P-21316-00-00

$28.32

12

STAY, ENGINE 3

18P-21317-00-00

$28.20

13

BOLT, FLANGE

95817-10030-00

$6.17

14

WASHER, PLATE

90201-10043-00

$1.88

15

BOLT, FLANGE

90105-10350-00

$10.55

16

NUT, SELF-LOCKING

90185-10011-00

$3.92

17

BOLT, FLANGE

90105-10148-00

$6.62

18

NUT, SELF-LOCKING

90185-10011-00

$3.92

19

PROTECTOR, ENGINE

18P-21471-00-00

$57.01

20

DAMPER, PLATE

90520-10021-00

$1.71

21

BOLT

90109-06201-00

$5.62

22

TENSIONER

5TG-22178-01-00

$19.60

23

BEARING (3X3)

93300-60804-00

$11.18

24

WASHER, PLATE

90201-08043-00

$5.77

25

COLLAR(1NL)

90387-086N4-00

$8.31

26

BOLT, FLANGE

90105-08112-00

$6.28

27

BEARING

93306-20352-00

$26.25

28

OIL SEAL (25X44X6-810)

93102-25081-00

$4.11

29

OIL SEAL (25X36X8-334)

93102-25099-00

$10.57

30

HOLDER, BEARING

2GU-23872-00-00

$22.43

31

PLUG(2AK)

90338-20183-00

$9.80

32

PLUG

90338-16007-00

$13.57

33

CAP, MAIN PIPE

18P-2111A-01-00

$5.12

34

CLAMP, WIRE HARNES

18P-21335-01-00

$3.83

35

CLAMP, WIRE HARNES

18P-21336-01-00

$3.82

36

RIVET

90269-05001-00

$2.22

37

BRACKET

18P-21131-00-00

$36.42

38

DAMPER, SEAT

3KJ-24723-00-00

$6.38

39

DAMPER 1

4XY-21638-00-00

$6.38

40

DAMPER, LOCATING 3

2S2-2177M-00-00

$6.38

41

DAMPER 1

1C3-2214F-00-00

$4.77

42

MOLE 3

4XY-28347-00-00

$6.74

43

MOLE, SIDE COVER 1

3YX-2171L-00-00

$2.83

44

HOSE (L70)

90445-112E0-00

$5.66

45

BOLT, FLANGE

90105-06084-00

$3.92

46

COLLAR

90387-06197-00

$6.17

47

TOOL KIT

1PE-F8100-01-00

$13.94

48

GAUGE, AIR

1NV-2811A-01-00

$49.11

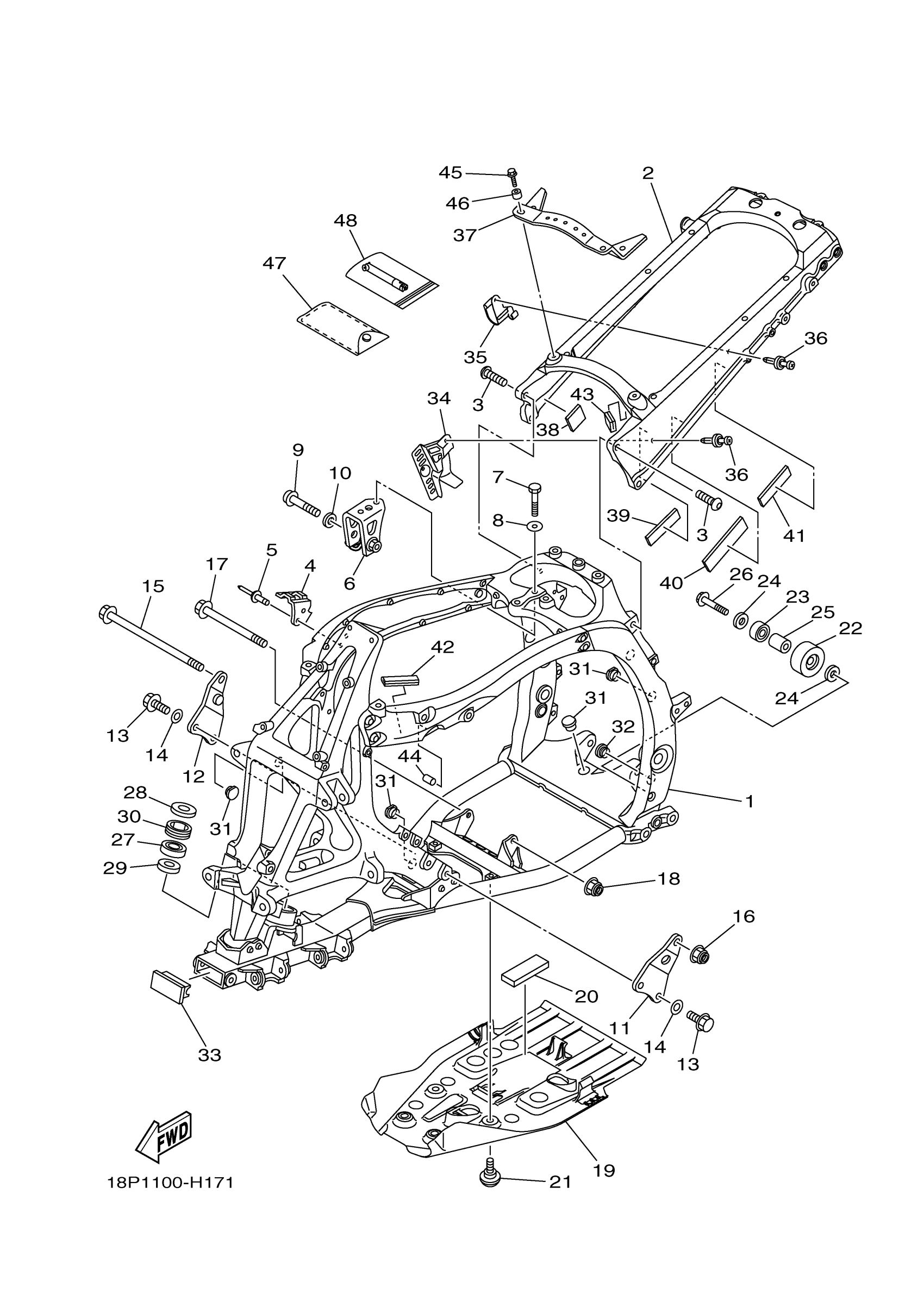

Yamaha YFZ45YSSTG (YFZ450R SE) DF1C 2026 FRAME Diagram
