Description

Price

1

COVER, CRANKCASE 1

18P-15411-10-00

$276.29

2

PLUG, STRAIGHT SCREW

90340-36004-00

$16.00

3

O-RING

93210-35804-00

$0.49

4

PLUG, STRAIGHT SCREW

90340-14016-00

$15.25

5

O-RING (2H9)

93210-14369-00

$5.80

6

PLUG, OIL LEVEL

18P-15362-01-00

$12.14

7

O-RING (603)

93210-19026-00

$6.68

8

GASKET, CRANKCASE COVER 1

18P-15451-00-00

$21.37

9

PIN, DOWEL(3XW)

91808-16023-00

$5.48

10

BOLT, FLANGE

95022-06065-00

$1.78

11

BOLT, FLANGE

95022-06035-00

$2.98

12

COVER 2

18P-15423-10-00

$65.58

13

GASKET, COVER PINION 2

18P-15463-00-00

$8.70

14

PIN, DOWEL

99530-08012-00

$6.62

15

BOLT, FLANGE

95022-06020-00

$3.32

16

HOLDER, CLUTCH CABLE

5TA-15441-01-00

$18.65

17

BOLT(3MA)

91312-06016-00

$4.89

18

COVER, CRANKCASE 2

18P-15421-00-00

$34.06

19

GUIDE, CHAIN

18P-17466-00-00

$15.80

20

BOLT,SOCKET

91317-06025-00

$2.05

21

COVER, CRANKCASE 3

18P-15431-00-00

$213.83

22

OIL SEAL(4GY)

93101-14164-00

$9.71

23

WASHER (566)

90201-15701-00

$6.17

24

CIRCLIP

99009-22500-00

$6.18

25

COVER, GENERATOR

5TG-15415-00-00

$156.77

26

GASKET

18P-15453-00-00

$26.17

27

PIN, DOWEL(3XW)

91808-16023-00

$5.48

28

BOLT, FLANGE

95022-06030-00

$1.40

29

BOLT, FLANGE

95022-06040-00

$2.93

30

HOSE 1

18P-1243A-00-00

$7.15

31

CLIP

90467-070A0-00

$6.25

32

ELEMENT ASSY, OIL CLEANER

5D3-13440-09-00

$10.66

33

COVER, OIL ELEMENT

5BE-13447-10-00

$75.06

34

O-RING(52H)

93210-47675-00

$5.54

35

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$5.35

36

BOLT, HEXAGON SOCKET HEAD

90110-06228-00

$6.25

37

BOLT,SOCKET HEAD

91314-06020-00

$2.05

38

SEAT, CHECK BALL

583-13113-00-00

$20.58

39

BALL

93503-08007-00

$2.35

40

SPRING, COMPRESSION(1VJ)

90501-043E0-00

$3.65

41

GASKET, CRANKCASE COVER 3

18P-15462-00-00

$27.71

42

PIN, DOWEL(3BM)

99530-10120-00

$2.57

43

BOLT, FLANGE

95022-06040-00

$2.93

44

BOLT, FLANGE

95022-06030-00

$1.40

45

CLAMP(4MX)

90465-06376-00

$7.08

46

BOLT, FLANGE

95022-06080-00

$3.52

47

PIPE, BREATHER 2

1TD-15393-00-00

$49.68

48

WASHER, PLATE 8087752500

90201-07081-00

$7.09

49

BOLT(3MA)

91312-06016-00

$4.89

50

BOLT(1KT)

90109-060E9-00

$7.05

51

CLAMP (26H)

90464-08051-00

$5.28

52

CLIP

90467-140A6-00

$8.92

53

CLAMP 2

18P-15484-00-00

$49.18

54

COVER

18P-15413-00-00

$7.34

55

STAY,CRANKCASECOVER 1

18P-1541A-00-00

$48.72

56

BOLT(3MA)

91312-06016-00

$4.89

57

PIPE, WATER

5BE-12564-00-00

$8.71

58

O-RING(M01)

93210-19758-00

$5.53

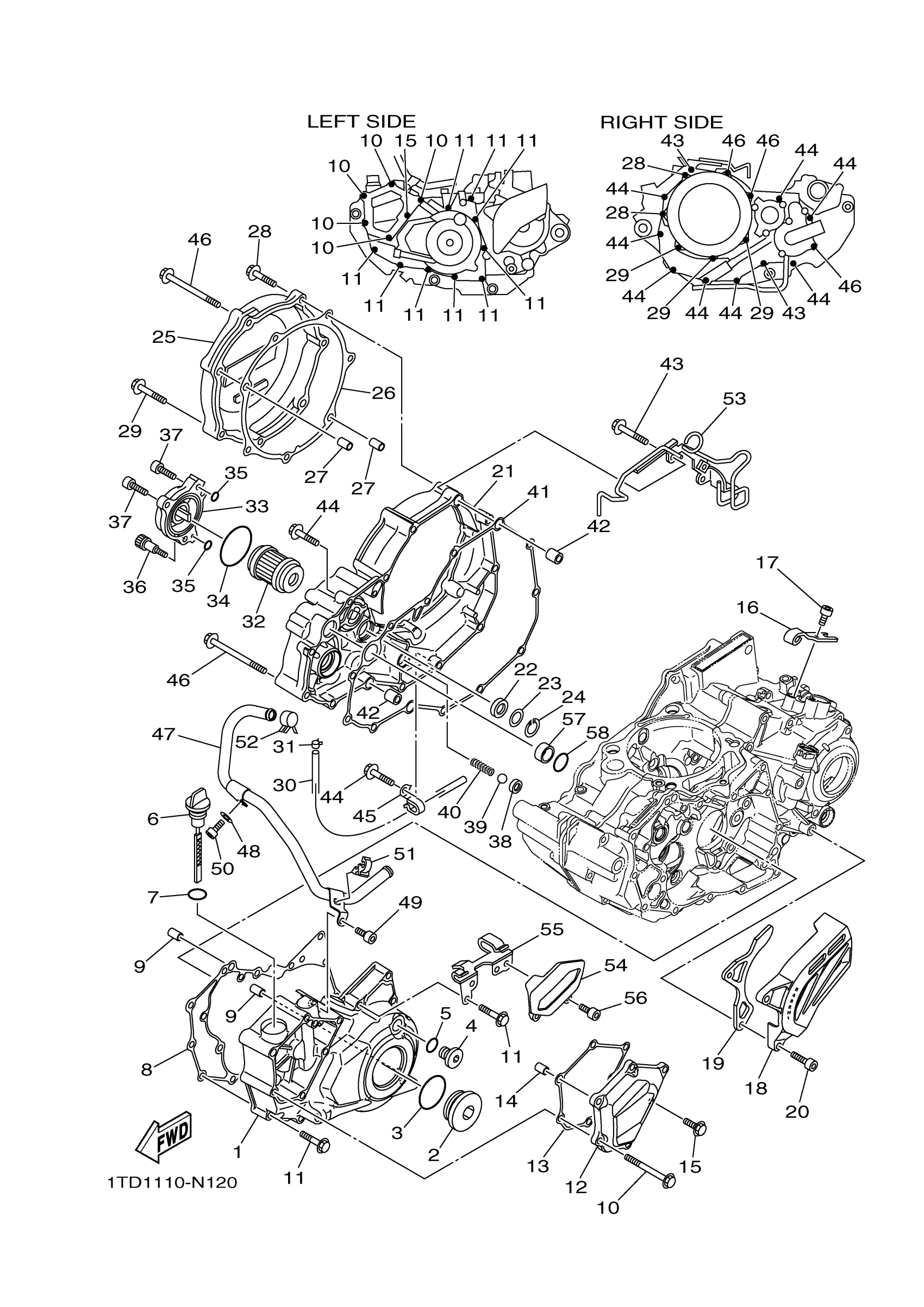

Yamaha YFZ45YSSTG (YFZ450R SE) DF1C 2026 CRANKCASE COVER 1 Diagram
