Description

Price

1

DISC, BRAKE (LEFT)

3GD-2582T-10-00

$194.97

2

BOLT

90109-08087-00

$2.65

3

CALIPER ASSY (LEFT)

5LP-2580T-00-00

$372.23

4

PISTON ASSY, CALIPER

3GD-W0057-00-00

$57.05

5

CALIPER SEAL KIT

3GD-W0047-00-00

$13.06

6

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

7

BRAKE PAD KIT

5LP-W0045-00-00

$48.30

8

SHIM, CALIPER

3GD-25827-00-00

$9.49

9

PIN, PAD

3GD-25933-00-00

$22.89

10

CALIPER ASSY (RIGHT)

5LP-2580U-00-00

$372.23

11

PISTON ASSY, CALIPER

3GD-W0057-00-00

$57.05

12

CALIPER SEAL KIT

3GD-W0047-00-00

$13.06

13

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

14

BRAKE PAD KIT

5LP-W0045-00-00

$48.30

15

SHIM, CALIPER

3GD-25828-00-00

$3.80

16

PIN, PAD

3GD-25933-00-00

$22.89

17

BOLT, FLANGE

90105-08184-00

$4.77

18

COLLAR

90387-20005-00

$21.51

19

WASHER, PLATE

90201-20022-00

$6.78

20

COLLAR(1UY)

90387-150R1-00

$6.29

21

WASHER PLATE 248181370000

90201-14220-00

$6.17

22

NUT, CASTLE

90171-14002-00

$7.62

23

PIN, COTTER

91401-30025-00

$6.18

24

RING, WHEEL 1 (LEFT)

5LP-2514A-10-00

$14.17

25

BOLT

90109-06201-00

$5.62

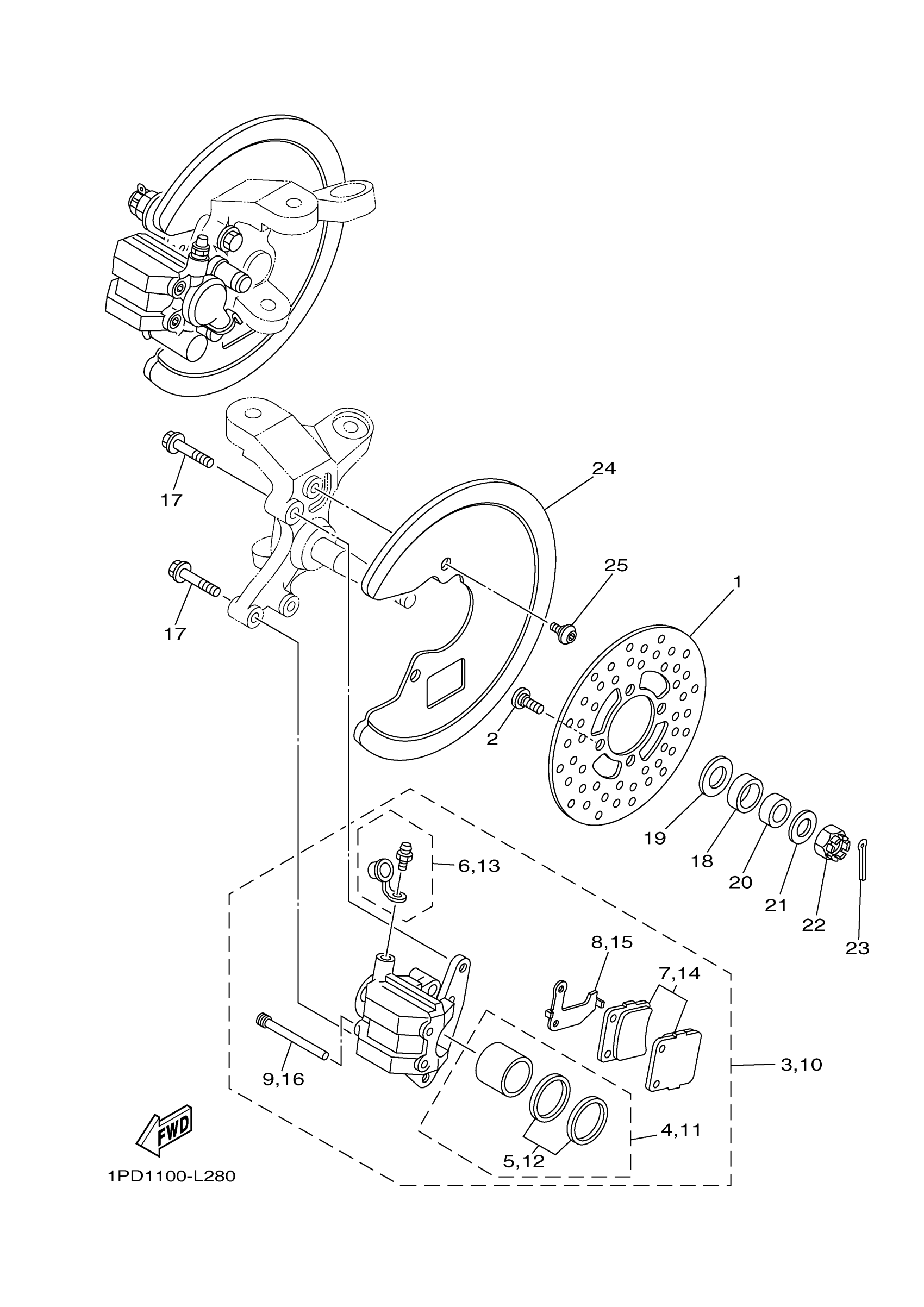

Yamaha YFZ45DB (YFZ450) 1PD4 2013 FRONT BRAKE CALIPER Diagram
