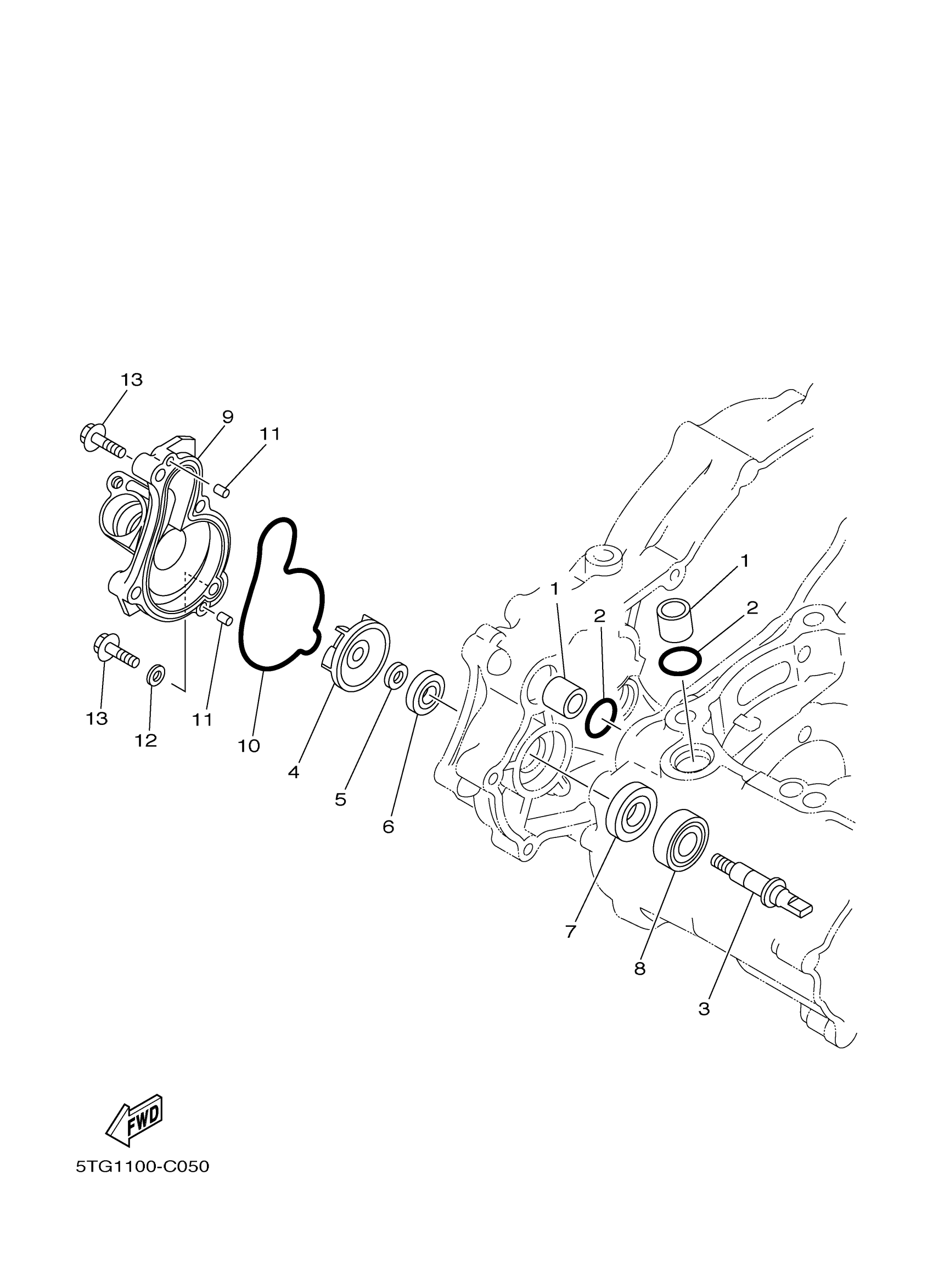

Yamaha YFZ450YL (YFZ450) 5D3M 2009 WATER PUMP Diagram

#

Description
Price

1

PIPE, WATER

5BE-12564-00-00

$8.71

2

O-RING(M01)

93210-19758-00

$5.53

3

SHAFT, IMPELLER

5GR-12458-00-00

$74.57

4

IMPELLER, WATER PUMP

5DJ-12451-00-00

$77.61

5

WASHER, PLATE (5F7)

90201-08512-00

$6.17

6

OIL SEAL

93102-11008-00

$9.62

7

OIL SEAL (12X22X5-371)

93102-12106-00

$10.14

8

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$25.40

9

COVER, HOUSING

5TG-12422-00-00

$57.81

10

O-RING

5BE-12439-00-00

Unavailable

11

PIN,DOWEL (603)

93604-10011-00

$5.10

12

GASKET 256113960000

90430-06014-00

$7.23

13

BOLT, FLANGE

95022-06030-00

$1.40
