Description

Price

1

GEAR, PRIMARY DRIVE

2S2-16111-60-00

$141.62

2

WASHER, CONICAL SPRING(83R)

90208-25045-00

$12.88

3

NUT

90179-20009-00

$17.49

4

PRIMARY DRIVEN GEAR COMP.

18P-16150-00-00

$530.99

5

BOSS, CLUTCH

5TA-16371-20-00

$120.37

6

PLATE, PRESSURE 1

2S2-16351-01-00

$80.18

7

PLATE, CLUTCH 2

4X7-16325-10-00

$15.32

8

PLATE, FRICTION

5TA-16321-00-00

$22.96

9

PLATE, FRICTION

5VY-16321-00-00

$18.21

10

SPRING, COMPRESSION(1UY)

90501-231E9-00

$8.82

11

SCREW, WITH WASHER (583)

90159-06010-00

$6.54

12

PLATE, THRUST 1

5XD-16154-00-00

$13.06

13

WASHER, LOCK

90215-20005-00

$6.20

14

NUT (34L)

90170-20327-00

$16.98

15

ROD, PUSH 1

5TG-16356-00-00

$37.02

16

BEARING, THRUST (713)

93340-21505-00

$16.62

17

WASHER, PLATE(1RE)

90201-125L6-00

$6.29

18

CIRCLIP (4G0)

93440-10085-00

$6.17

19

BALL (1M1)

93515-32029-00

$2.77

20

ROD, PUSH 2

18P-16357-01-00

$26.39

21

AXLE, PUSH LEVER

18P-16382-00-00

$60.60

22

LEVER, PUSH

18P-16342-00-00

$27.26

23

WASHER, PLATE

90201-10032-00

$1.09

24

CIRCLIP(10W)

99009-10400-00

$3.91

25

BEARING

93317-11287-00

$20.48

26

OIL SEAL (4G0)

93102-12224-00

$8.35

27

CIRCLIP(1EV)

99009-20500-00

$1.23

28

SPRING, TORSION

90508-16061-00

$4.45

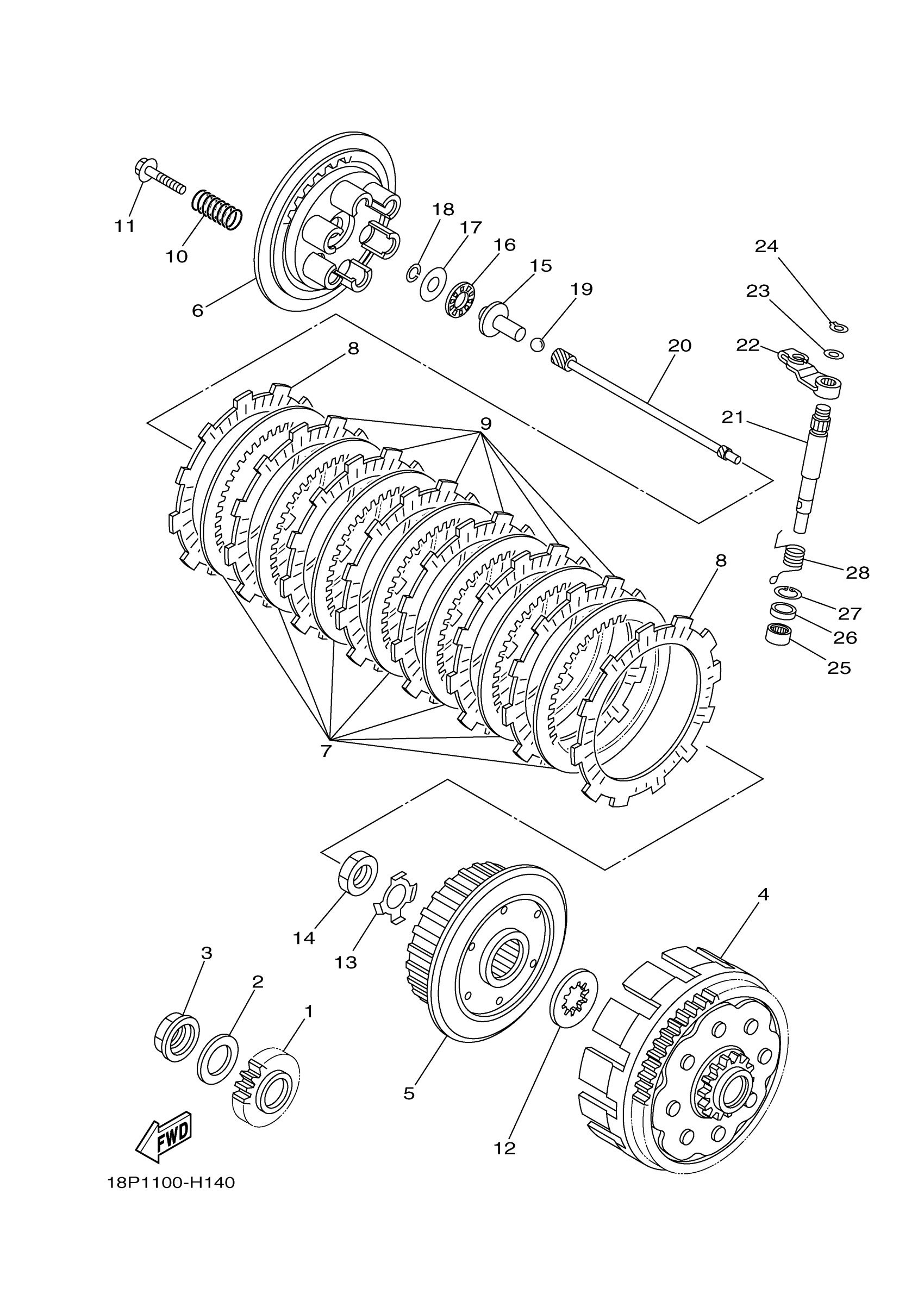

Yamaha YFZ450XZL (YFZ450X) 46D1 2010 CLUTCH Diagram
