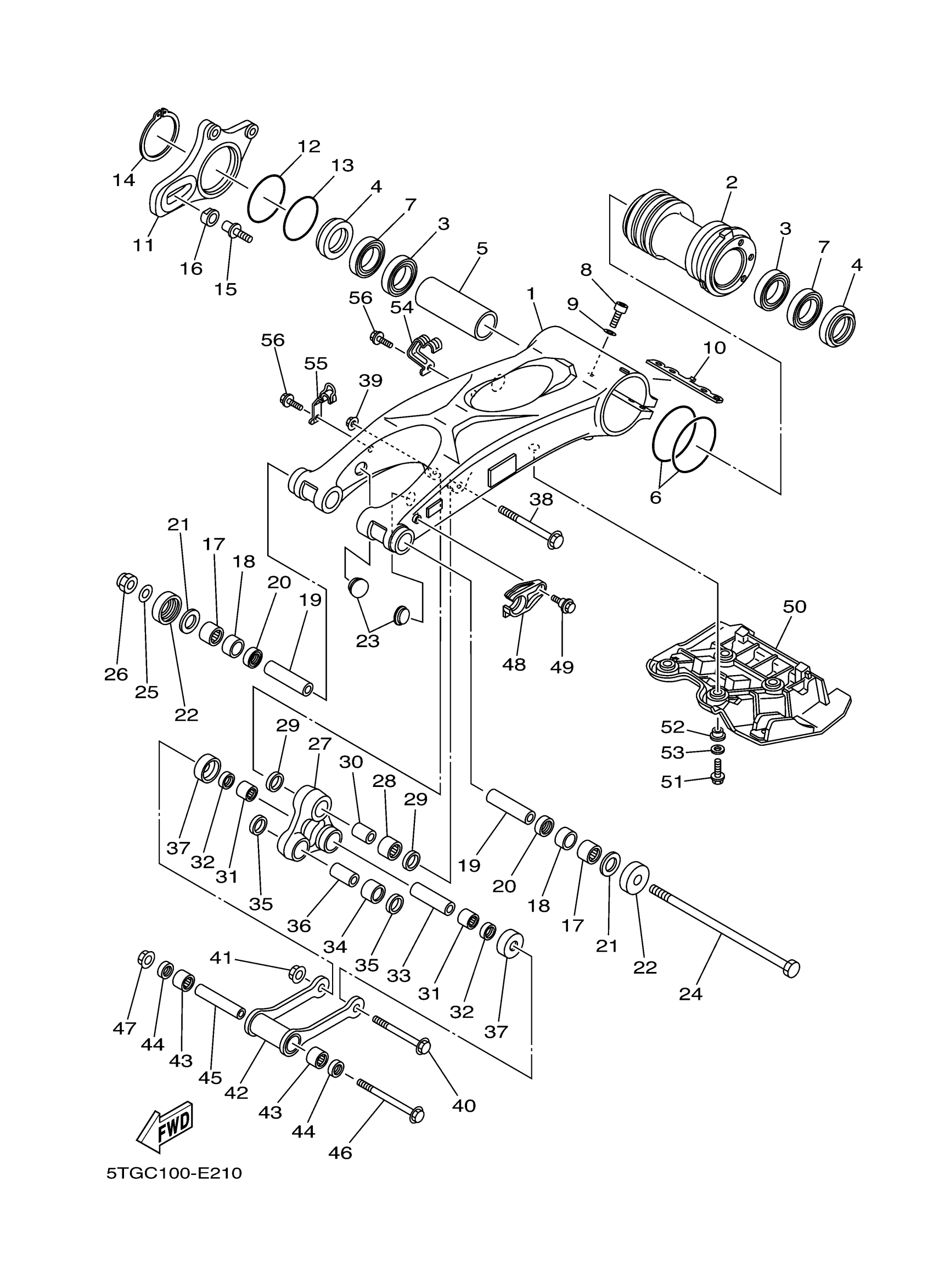

Yamaha YFZ450SEW (YFZ450 SPECIAL EDITION) 5D34 2007 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

5TG-22110-21-00

$723.99

2

HUB, REAR

5TG-25311-21-00

$273.23

3

BEARING

93306-90804-00

$76.81

4

OIL SEAL

93106-46003-00

$13.85

5

SPACER, BEARING

5TG-25317-01-00

$52.24

6

O-RING

1S3-23147-01-00

$8.70

7

BEARING

93306-90805-00

$72.85

8

BOLT,SOCKET

91314-08040-00

$5.10

9

.. WASHER, PLATE

92990-08600-00

$2.36

10

SEAL, DUST

5TG-22475-01-00

$7.43

11

BRACKET, CALIPER

5TG-25721-30-00

$197.99

12

O-RING

93210-71001-00

$6.09

13

O-RING

93210-66001-00

$3.56

14

CIRCLIP

93410-67085-00

$10.68

15

BOLT, HEXAGON SOCKET HEAD

90110-12002-00

$8.31

16

COLLAR

90387-16014-00

$24.34

17

BEARING, CYLINDRICAL (23X)

93317-32231-00

$38.51

18

BUSH, SOLID (23X)

90380-22111-00

$17.11

19

COLLAR(3LD)

90387-160W0-00

$28.62

20

OIL SEAL (23X)

93106-22019-00

$9.34

21

WASHER

3YF-22149-00-00

$8.03

22

COVER, THRUST 2

4X7-22129-00-00

$19.54

23

PLUG

90338-23004-00

$3.43

24

SHAFT, PIVOT

5LP-22141-00-00

$56.22

25

WASHER, PLATE

90201-16018-00

$6.71

26

NUT, SELF-LOCKING

90185-16002-00

$15.11

27

ARM, RELAY

5TG-2217A-10-00

$158.94

28

BEARING, CYLINDRICAL(3MH)

93315-32057-00

$27.22

29

OIL SEAL

93109-20001-00

$10.68

30

COLLAR(1FN)

90387-123M3-00

$18.75

31

BEARING

93315-31758-00

$33.76

32

OIL SEAL

93109-17071-00

$6.72

33

COLLAR

90387-12030-00

$12.03

34

BEARING, CYLINDRICAL(4RR)

93315-32052-00

$30.68

35

OIL SEAL

93109-20001-00

$10.68

36

COLLAR

90387-12020-00

$14.74

37

COVER, THRUST 1

5TG-22128-00-00

Unavailable

38

BOLT, FLANGE

90105-12038-00

$8.31

39

NUT, SELF-LOCKING

90185-12002-00

$10.05

40

BOLT, FLANGE

90105-12040-00

$11.25

41

NUT, SELF-LOCKING

90185-12002-00

$10.05

42

ROD, CONNECTING 1

5D3-2217F-00-00

$85.97

43

BEARING

93315-31758-00

$33.76

44

OIL SEAL

93109-17071-00

$6.72

45

COLLAR

90387-12019-00

$17.28

46

BOLT, FLANGE

90105-12039-00

$13.29

47

NUT, SELF-LOCKING

90185-12002-00

$10.05

48

SEAL, GUARD

5TG-22151-00-00

$27.53

49

BOLT

90109-06172-00

$2.71

50

GUARD SUB ASSY

5TG-22360-11-00

$103.11

51

BOLT, FLANGE

95822-06025-00

$1.46

52

COLLAR

90387-06151-00

$5.32

53

WASHER, PLATE

90201-06088-00

$6.26

54

HOLDER, BRAKE HOSE

5TG-25887-10-00

$11.37

55

HOLDER, BRAKE HOSE

5TG-25886-10-00

Unavailable

56

BOLT, FLANGE

95022-06012-00

$3.00
