Description

Price

1

OIL PUMP ASSY

5D3-13300-00-00

$182.94

2

ROTOR ASSY 2

5TA-13320-00-00

$41.97

3

PIN, DOWEL(1HX)

93603-16219-00

$5.10

4

CIRCLIP(1WG)

93440-10153-00

$1.62

5

O-RING (371)

93210-10197-00

$5.86

6

PIN, DOWEL(3VD)

99530-10114-00

$2.23

7

PIN, DOWEL

99530-08012-00

$6.62

8

BOLT,SOCKET

91317-06025-00

$2.05

9

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.82

10

GEAR, OIL PUMP IDLE

5TA-13341-00-00

$62.56

11

SHAFT, IDLE GEAR

5BE-13342-00-00

$19.79

12

CIRCLIP(2R6)

99001-08600-00

$6.17

13

CIRCLIP(10Y)

99009-12400-00

$3.08

14

WASHER PLATE 164185720000

90201-12166-00

$6.29

15

HOUSING, STRAINER

5TA-13412-00-00

$56.02

16

STRAINER, OIL

5BE-13411-00-00

$20.48

17

BOLT, FLANGE

95022-06025-00

$1.46

18

ELEMENT ASSY, OIL CLEANER

5D3-13440-09-00

$10.66

19

COVER, OIL ELEMENT

5BE-13447-10-00

$75.06

20

O-RING(52H)

93210-47675-00

$5.54

21

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$5.35

22

BOLT

90109-065G2-00

$2.49

23

BOLT, SOCKET

91317-06065-00

$3.26

24

BOLT,SOCKET

91317-06020-00

$2.11

25

PIPE, DELIVERY 1

5TJ-13161-00-00

$113.25

26

BOLT, UNION

90401-10015-00

$9.89

27

GASKET

90430-10188-00

$5.98

28

BOLT, UNION

90401-08006-00

$5.48

29

GASKET

90430-08119-00

$4.70

30

PIPE, DELIVERY 2

5TG-13171-00-00

$72.28

31

O-RING (11M)

93210-07540-00

$5.77

32

O-RING (137)

93210-09008-00

$8.31

33

O-RING(M01)

93210-12759-00

$4.84

34

BOLT, FLANGE

95022-06012-00

$3.00

35

PIPE, OIL 1

5TG-13416-10-00

$66.55

36

O-RING (371)

93210-10197-00

$5.86

37

PIN, DOWEL(3VD)

99530-10114-00

$2.23

38

BOLT, FLANGE

95022-06025-00

$1.46

39

PIPE, OIL 2

5TG-13418-10-00

$76.46

40

HOSE CLAMP ASSY

90450-18M09-00

$11.49

41

O-RING (371)

93210-10197-00

$5.86

42

PIN, DOWEL(3VD)

99530-10114-00

$2.23

43

BOLT, FLANGE

95022-06025-00

$1.46

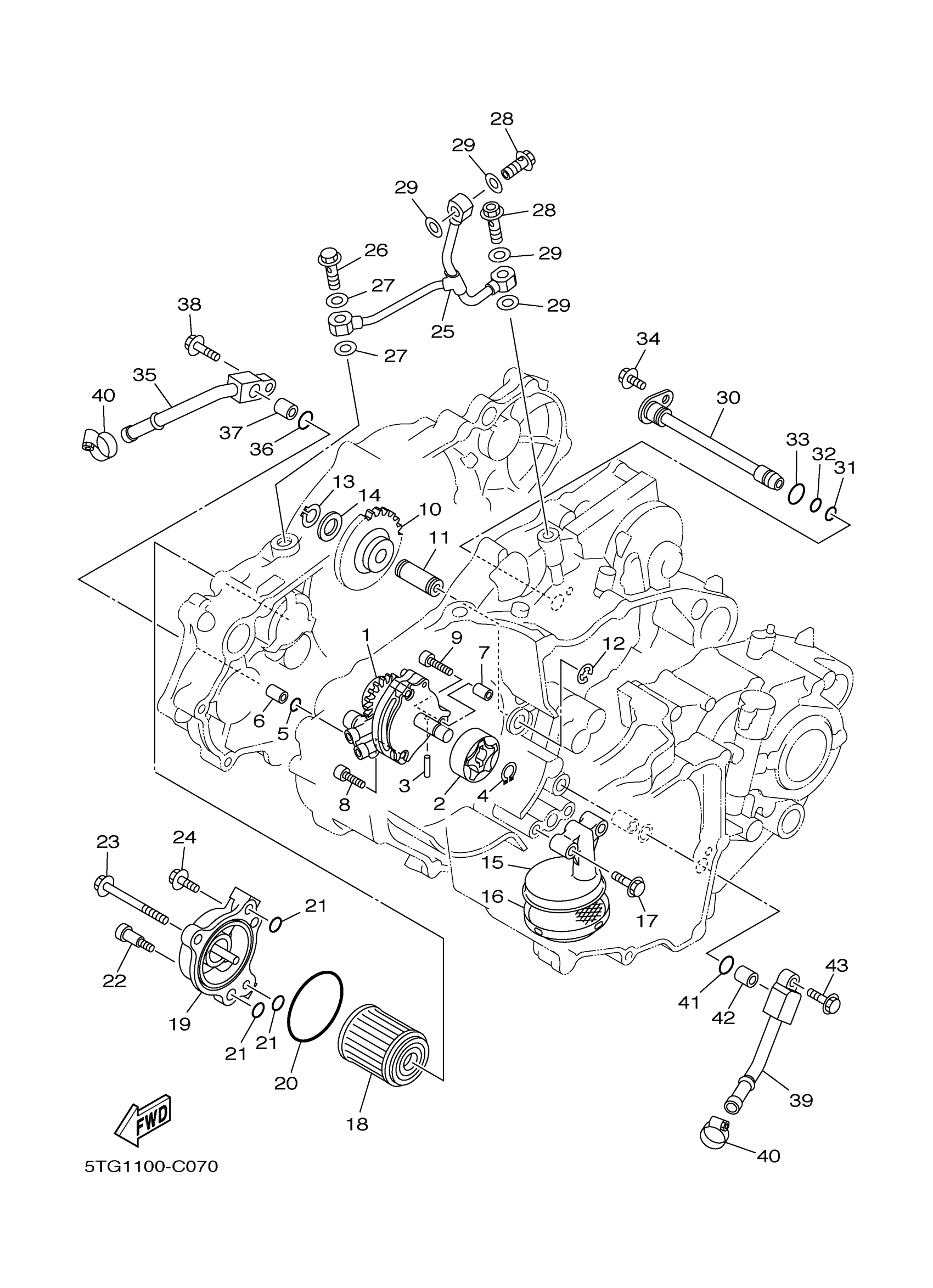

Yamaha YFZ450SEW (YFZ450 SPECIAL EDITION) 5D34 2007 OIL PUMP Diagram
