Description

Price

1

JOINT, CARBURETOR 3

5XD-13597-10-00

$25.77

2

HOSE CLAMP ASSY

90450-57013-00

$20.68

3

HOSE CLAMP ASSY

90450-59005-00

$14.05

4

HOSE CLAMP ASSY

90450-61002-00

$15.45

5

CASE, AIR CLEANER 1

5TG-14411-00-00

$37.21

6

JOINT, AIR CLEANER 1

5TG-14453-02-00

Unavailable

7

HOOK

5TH-14436-00-00

$8.74

8

ELEMENT, AIR CLEAN

5TG-14451-01-00

$37.23

9

GUIDE

5TG-14458-00-00

$22.66

10

FUNNEL

5TG-14479-00-00

$14.25

11

CAP, CLEANER CASE 1

5TG-14412-01-00

$23.25

12

SEAL

1VJ-14462-00-00

$16.08

13

HOSE CLAMP ASSY

90450-99007-00

$14.15

14

PROTECTOR

5TG-1442F-00-00

$11.78

15

RIVET, BLIND(80N)

90267-48138-00

$2.62

16

WASHER, PLATE

90201-04028-00

$6.31

17

HOLDER, GUIDE

5D3-14459-00-00

$37.71

18

SEAL

4ES-14462-00-00

$11.18

19

SEAL

59V-14457-00-00

$5.65

20

CLIP

90467-220A1-00

$5.14

21

WASHER (4H7)

90209-06096-00

$6.57

22

BOLT, WING

90122-06010-00

$9.15

23

DAMPER

5TG-14409-00-00

$6.52

24

GROMMET

31A-14435-01-00

$3.54

25

COLLAR

90387-08073-00

$7.94

26

BOLT, FLANGE

90105-06084-00

$3.92

27

PLATE, EPA OFFROAD ATV 1

5D3-2177C-00-00

Unavailable

28

BREATHER ASSY

5TG-15370-00-00

$30.31

29

BOLT, FLANGE

90105-06084-00

$3.92

30

COLLAR

90387-07018-00

$5.86

31

WASHER, PLATE

90201-06078-00

$5.48

32

HOSE, BREATHER 1

5TG-1531A-00-00

$26.51

33

SPRING, COMPRESSION

90501-100A2-00

Unavailable

34

CLIP

90467-140A4-00

$8.31

35

HOSE, BREATHER 2

5TG-1532A-00-00

$22.51

36

PIPE

5TG-14419-00-00

$6.86

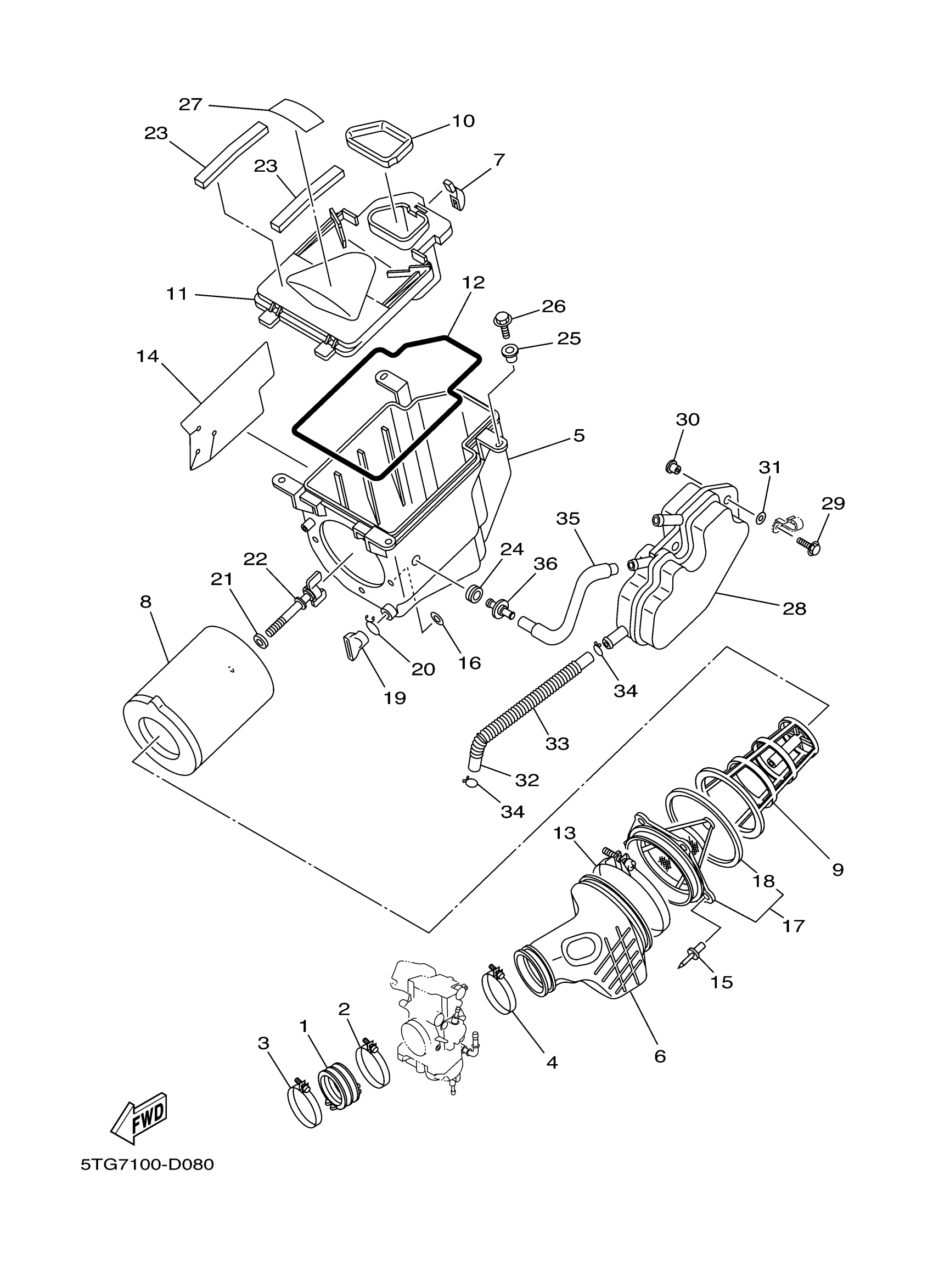

Yamaha YFZ450SEW (YFZ450 SPECIAL EDITION) 5D34 2007 INTAKE Diagram
