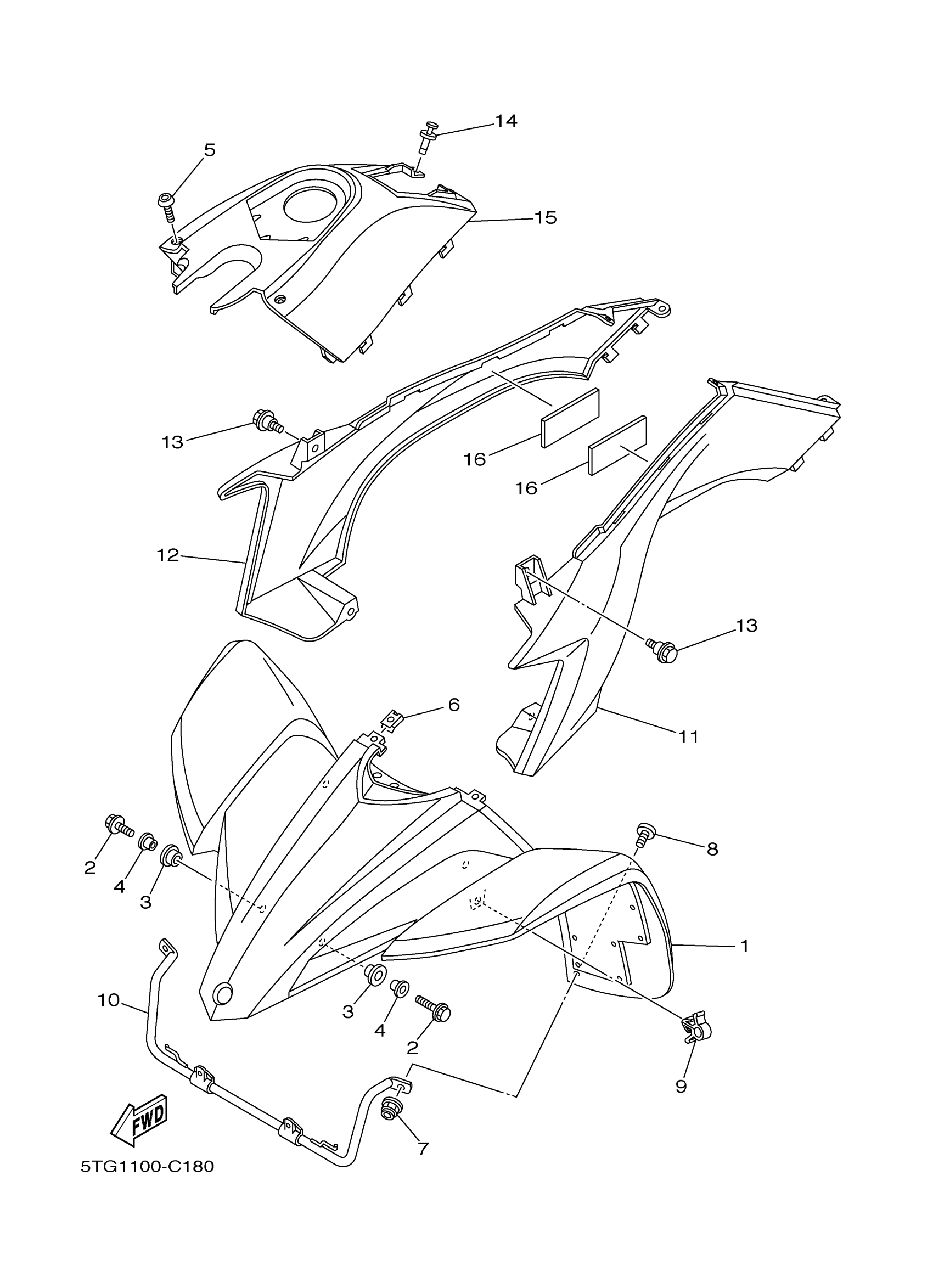

Yamaha YFZ450SEW (YFZ450 SPECIAL EDITION) 5D34 2007 FRONT FENDER Diagram

Description

Price

FRONT FENDER COMP.

5TG-W2151-10-00

$340.02

BOLT, FLANGE

95817-06016-00

$1.49

GROMMET

90480-15006-00

$5.78

COLLAR (11G)

90387-061F9-00

$6.15

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.15

NUT, SPRING

90183-05008-00

$6.68

NUT, U FLANGE

95604-06200-00

$2.35

BOLT

90111-06038-00

$3.45

CLAMP(4BD)

90464-48174-00

$2.63

STAY, FENDER 1

5TG-21513-10-00

$67.72

COVER, SIDE 1

5TG-21711-30-00

Unavailable

COVER, SIDE 2

5TG-21721-30-00

$53.68

BOLT

90109-06172-00

$2.71

RIVET

90269-06002-00

$6.17

COVER, TOP

5TG-2171A-10-00

$53.05

DAMPER 1

5TG-21541-00-00

$6.52
