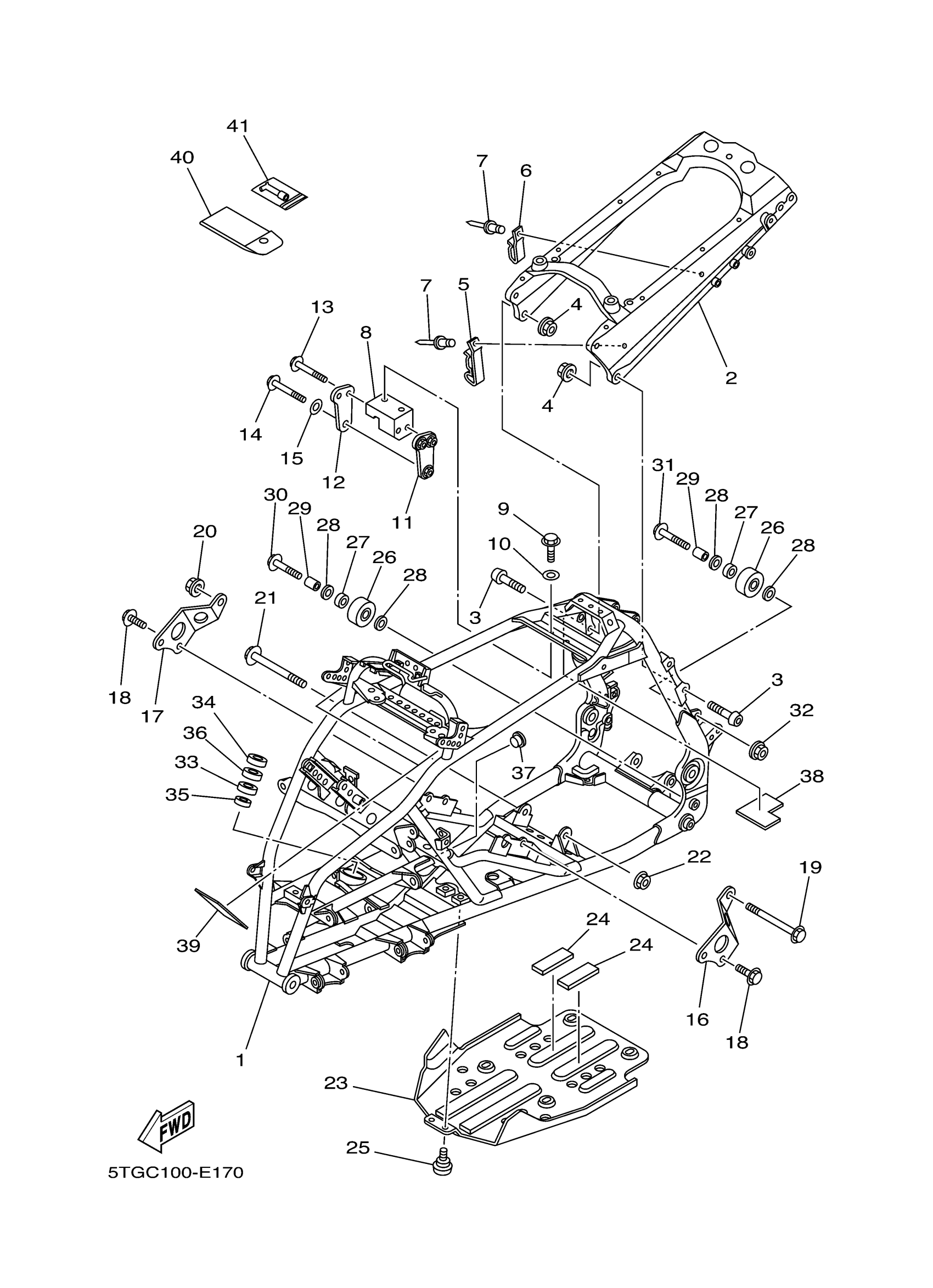

Yamaha YFZ450SEW (YFZ450 SPECIAL EDITION) 5D34 2007 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

5D3-21101-29-00

Unavailable

2

REAR FRAME COMP.

5D3-21190-28-00

Unavailable

3

BOLT,HEX. SOCKET BUTTON

90111-10031-00

$3.37

4

NUT, SELF-LOCKING

90185-10011-00

$3.92

5

CLAMP

90462-12003-00

$4.29

6

CLAMP

90462-12005-00

$4.03

7

RIVET, BLIND (8R4)

90267-48088-00

$3.11

8

STAY, ENGINE 2

5TG-21315-00-00

$51.74

9

BOLT, FLANGE

95812-08020-00

$1.69

10

WASHER, PLATE

90201-08053-00

$5.63

11

STAY, ENGINE 5

5TG-21318-10-00

$28.02

12

STAY, ENGINE 5

5TG-21314-10-00

$9.57

13

BOLT, FLANGE

95817-08050-00

$3.15

14

BOLT, FLANGE(87Y)

95817-10055-00

$4.54

15

WASHER, PLATE

90201-10036-00

$6.28

16

STAY, ENGINE 3

5D3-21316-01-00

$18.11

17

STAY, ENGINE 3

5D3-21317-01-00

$18.08

18

BOLT, FLANGE(JN5)

95817-08016-00

$4.12

19

BOLT, FLANGE

95812-10165-00

$6.20

20

NUT, SELF-LOCKING

90185-10011-00

$3.92

21

BOLT, FLANGE

90105-10148-00

$6.62

22

NUT, SELF-LOCKING

90185-10011-00

$3.92

23

PROTECTOR, ENGINE

5TG-21471-00-00

Unavailable

24

DAMPER, PLATE

90520-10021-00

$1.71

25

BOLT

90109-06201-00

$5.62

26

TENSIONER

5TG-22178-01-00

$19.60

27

BEARING (3X3)

93300-60804-00

$11.18

28

WASHER, PLATE

90201-08043-00

$5.77

29

COLLAR(1NL)

90387-086N4-00

$8.31

30

BOLT, FLANGE(4KG)

95024-08040-00

$6.17

31

BOLT, FLANGE

90105-08112-00

$6.28

32

NUT, SELF-LOCKING

95602-08200-00

$2.77

33

BEARING

93306-20352-00

$26.25

34

OIL SEAL (25X44X6-810)

93102-25081-00

$4.11

35

OIL SEAL (25X36X8-334)

93102-25099-00

$10.57

36

HOLDER, BEARING

2GU-23872-00-00

$22.43

37

PLUG (5R2)

90338-18122-00

$6.71

38

DAMPER

5TG-25897-00-00

$3.08

39

DAMPER

5TG-84163-00-00

$6.52

40

TOOL KIT

5TG-28100-10-00

$37.80

41

GAUGE, AIR

1NV-2811A-01-00

$49.11
