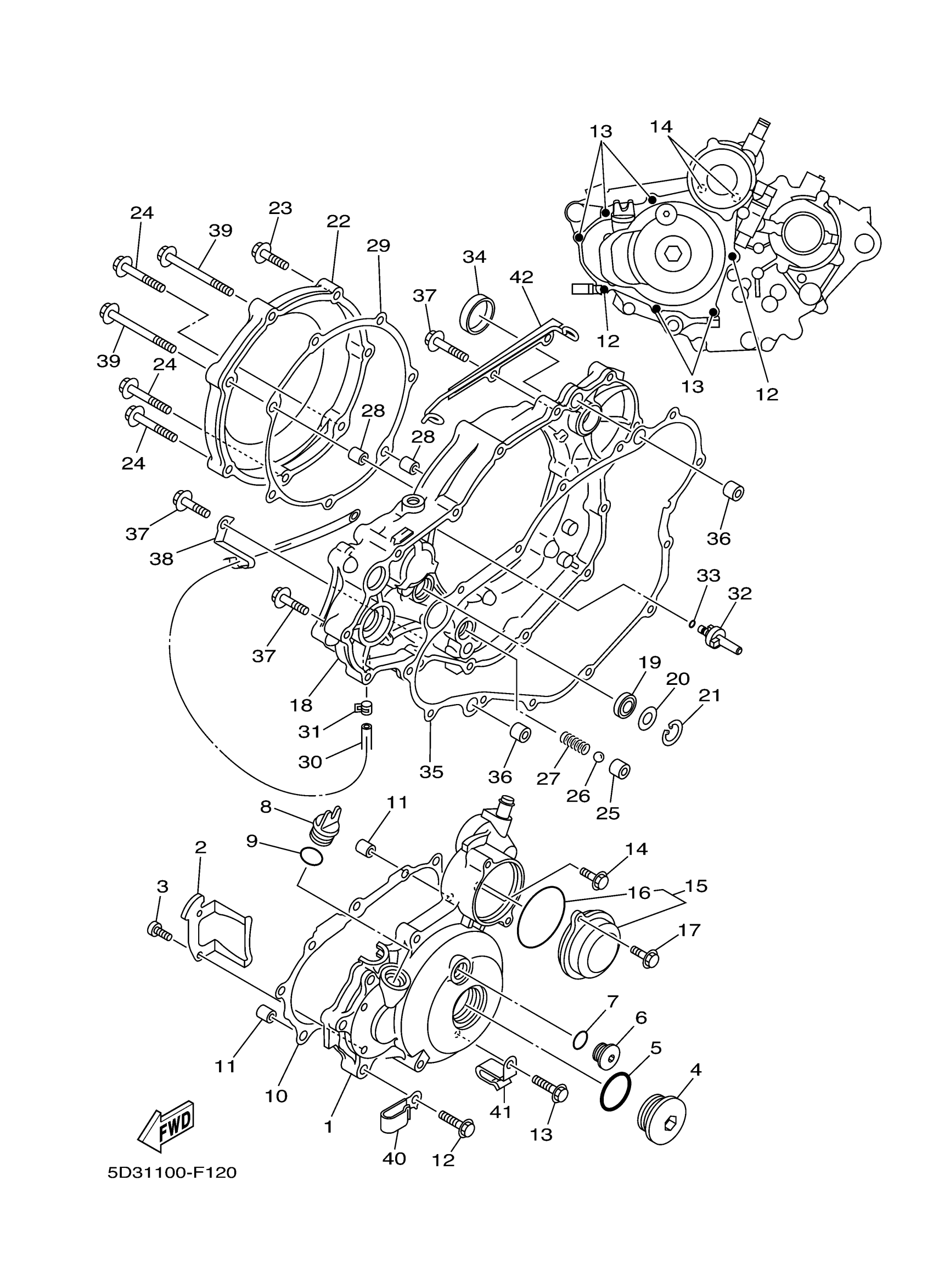

Yamaha YFZ450SEW (YFZ450 SPECIAL EDITION) 5D34 2007 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

5TG-15411-10-00

Unavailable

2

CLAMP

90465-10017-00

$5.40

3

BOLT(47X)

91312-05012-00

$2.46

4

PLUG, STRAIGHT SCREW

90340-27003-00

$27.80

5

O-RING(1KT)

93210-27778-00

$6.89

6

PLUG, STRAIGHT SCREW

90340-14003-00

$26.83

7

O-RING (2H9)

93210-14369-00

$5.80

8

PLUG, OIL

3Y1-15363-10-00

$17.02

9

O-RING (646)

93210-19123-00

$6.91

10

GASKET, CRANKCASE COVER 1

5TG-15451-00-00

$12.45

11

PIN, DOWEL(3XW)

91808-16023-00

$5.48

12

BOLT, SMALL FLANGE

95027-06040-00

$2.48

13

BOLT, SMALL FLANGE

95027-06030-00

$3.65

14

. BOLT, FLANGE

95027-06020-00

$1.00

15

COVER ASSY 2

5TG-1549B-10-00

Unavailable

16

O-RING (4H7)

93210-60426-00

$8.63

17

BOLT, FLANGE

95022-06016-00

$3.32

18

COVER, CRANKCASE 3

5D3-15431-00-00

$427.51

19

OIL SEAL(4GY)

93101-14164-00

$9.71

20

WASHER (566)

90201-15701-00

$6.17

21

CIRCLIP

99009-22500-00

$6.18

22

COVER, GENERATOR

5TG-15415-00-00

$156.77

23

BOLT, SMALL FLANGE

95027-06030-00

$3.65

24

BOLT, SMALL FLANGE

95027-06040-00

$2.48

25

SEAT, CHECK BALL

583-13113-00-00

$20.58

26

BALL

93503-08007-00

$2.35

27

SPRING, COMPRESSION(1VJ)

90501-043E0-00

$3.65

28

PIN, DOWEL(3XW)

91808-16023-00

$5.48

29

GASKET

5TA-15453-00-00

$19.40

30

HOSE (L1050)

90445-072G8-00

$23.46

31

CLIP

90467-070A0-00

$6.25

32

NOZZLE 3

5D3-15155-00-00

$53.05

33

O-RING

93210-05098-00

$2.78

34

PLUG (3L3)

90338-30096-00

$11.51

35

GASKET, CRANKCASE COVER 3

5TG-15462-02-00

$29.74

36

PIN, DOWEL(J38)

91812-16001-00

$5.17

37

BOLT, SMALL FLANGE

95027-06030-00

$3.65

38

CLAMP

90462-08049-00

$3.40

39

BOLT, SMALL FLANGE

95027-06080-00

$1.88

40

CLAMP

90462-08044-00

Unavailable

41

CLAMP

90462-10034-00

Unavailable

42

CLAMP 2

5TG-15484-10-00

Unavailable
