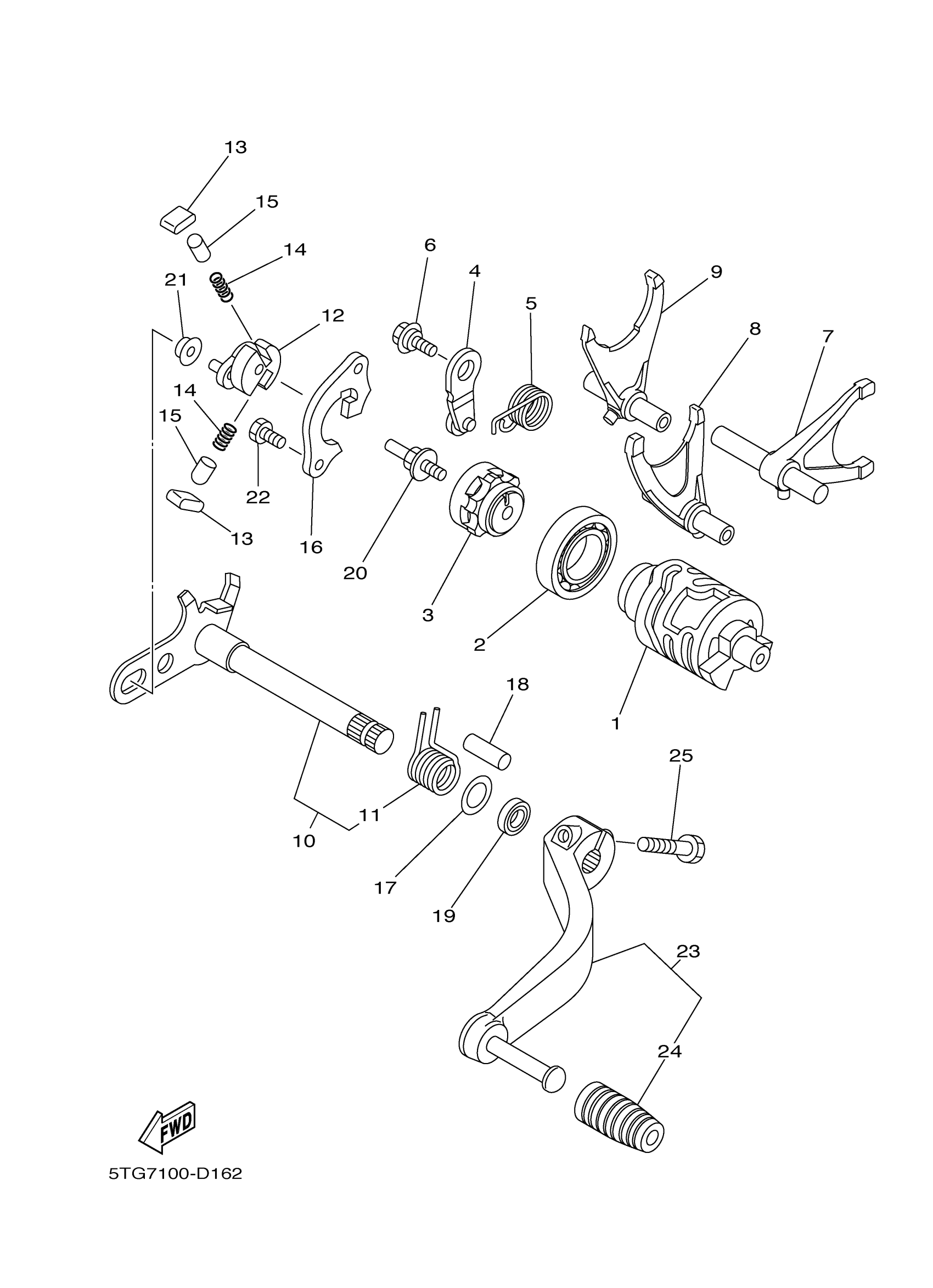

Yamaha YFZ450SE2W (YFZ450 SPECIAL EDITION 2-BLACK FLAMES) 5D38 2007 SHIFT CAM FORK Diagram

#

Description
Price

1

CAM, SHIFT

5TG-18541-01-00

Unavailable

2

BEARING

93306-90509-00

$33.59

3

SEGMENT

4EW-18185-00-00

$95.42

4

STOPPER LEVER ASSY

3XK-18140-00-00

$19.68

5

SPRING, TORSION (17W)

90508-26561-00

$8.28

6

BOLT

90109-06195-00

$5.98

7

FORK, SHIFT 1

5TG-18501-00-00

$115.71

8

FORK, SHIFT 2

5TG-18502-00-00

$102.75

9

FORK, SHIFT 3

5TG-18503-00-00

$96.42

10

SHIFT SHAFT ASSY

5TG-18101-10-00

$48.76

11

SPRING, TORSION

90508-35015-00

$7.68

12

LEVER, SHIFT 2

5MW-18122-01-00

$79.77

13

PAWL, SHIFTER

3XJ-18182-00-00

$13.06

14

SPRING, COMPRESSION(3XJ)

90501-052G5-00

$5.10

15

PIN, PAWL

3XJ-18184-00-00

$12.69

16

GUIDE, SHIFT

5BE-18172-00-00

$21.37

17

WASHER PLATE 164185720000

90201-12166-00

$6.29

18

PIN, DOWEL

93608-33002-00

$11.91

19

OIL SEAL (4G0)

93102-12224-00

$8.35

20

PIN, SHIFT

3XJ-18173-10-00

$16.43

21

ROLLER, SHIFT LEVER

3XJ-18178-00-00

$10.77

22

BOLT

90101-06042-00

$4.60

23

SHIFT PEDAL ASSY

5TG-18110-10-00

$112.82

24

COVER, SHIFT PEDAL

5YT-18113-00-00

$6.43

25

BOLT

90109-06031-00

$1.92
