Description

Price

1

REAR MASTER CYLINDER ASSY

5TG-2580E-20-00

$137.01

2

CYLINDER KIT, MASTER

5TG-W0042-50-00

$68.00

3

NUT, HEXAGON SMALL

95317-08700-00

$7.05

4

JOINT

2YK-27222-00-00

$19.20

5

PIN, BRAKE ROD

3KW-27234-00-00

$6.43

6

PIN, CLEVIS(2YK)

90240-08124-00

$5.68

7

WASHER, PLATE 1562722600

90201-08083-00

$6.29

8

PIN, COTTER

91490-16020-00

$6.23

9

HOSE, RESERVOIR

5TG-25895-10-00

$34.71

10

CLIP (7K7)

90467-11044-00

$5.10

11

TANK, RESERVOIR

5TG-25894-00-00

$18.25

12

CAP, RESERVOIR

3XP-25852-50-00

$18.37

13

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$19.62

14

BUSH,DIAPHRAGM

2VN-25855-00-00

$9.49

15

HOSE, BRAKE

5TG-25874-30-00

$55.72

16

WASHER, PLATE(481)

90201-10118-00

$2.91

17

BOLT, UNION(3GM)

90401-10159-00

$8.85

18

BOLT, BUTTON HEAD

92012-08025-00

$5.75

19

BOLT, UNION(3GM)

90401-10159-00

$8.85

20

WASHER, PLATE(481)

90201-10118-00

$2.91

21

HOLDER, BRAKE HOSE

5TG-2587A-00-00

$40.85

22

BOLT, FLANGE

95022-06010-00

$5.45

23

BRACKET, RESERVE TANK

5TG-21228-10-00

$6.74

24

BOLT, WASHER BASED(7H6)

90105-05331-00

$5.38

25

NUT, S/L FLANGE

95607-05200-00

$6.86

26

COLLAR

90387-05016-00

Unavailable

27

GROMMET

90480-10011-00

Unavailable

28

BOLT, FLANGE

95817-06012-00

$1.49

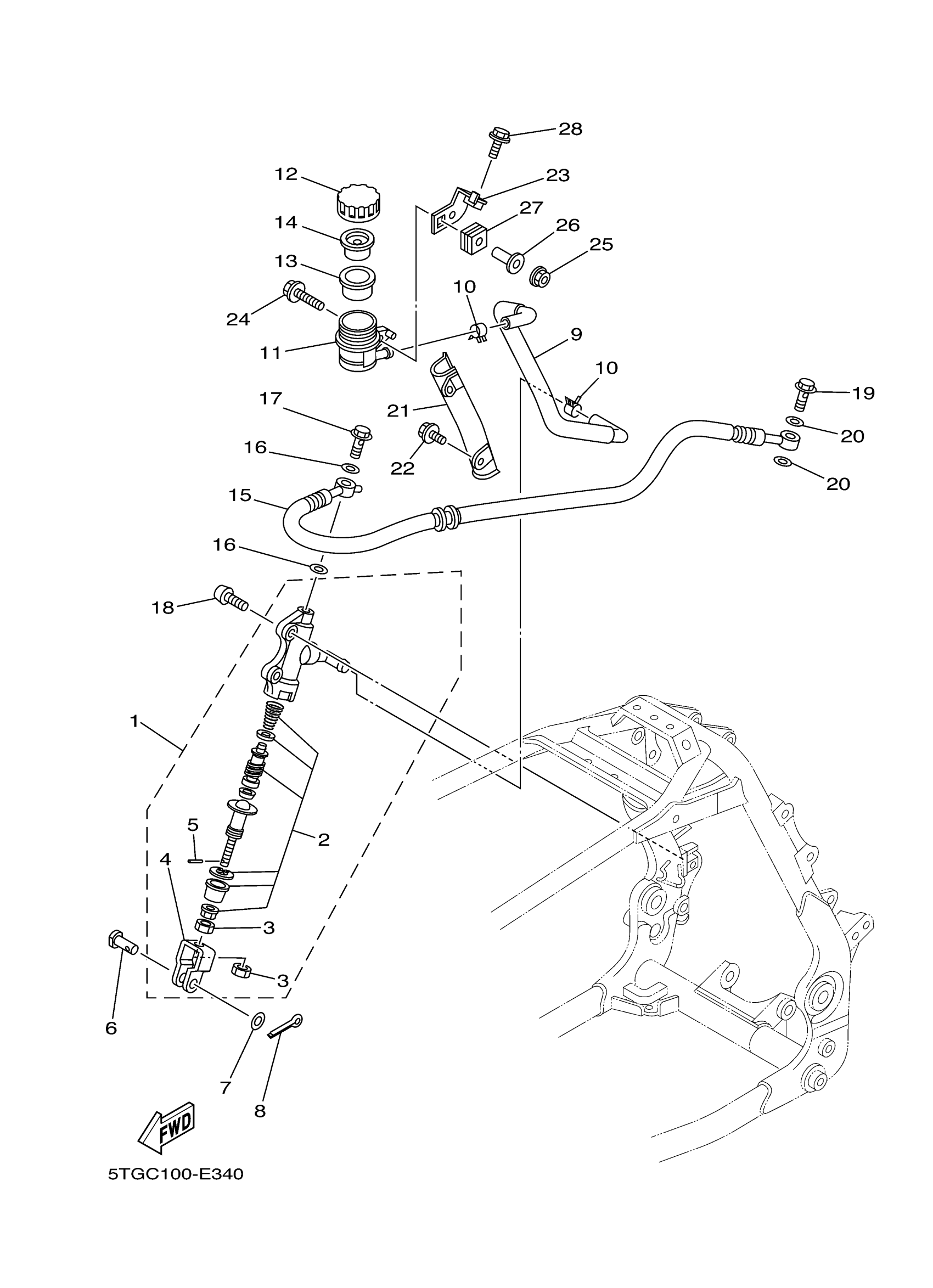

Yamaha YFZ450SE2W (YFZ450 SPECIAL EDITION 2-BLACK FLAMES) 5D38 2007 REAR MASTER CYLINDER Diagram

COLLAR

GROMMET
