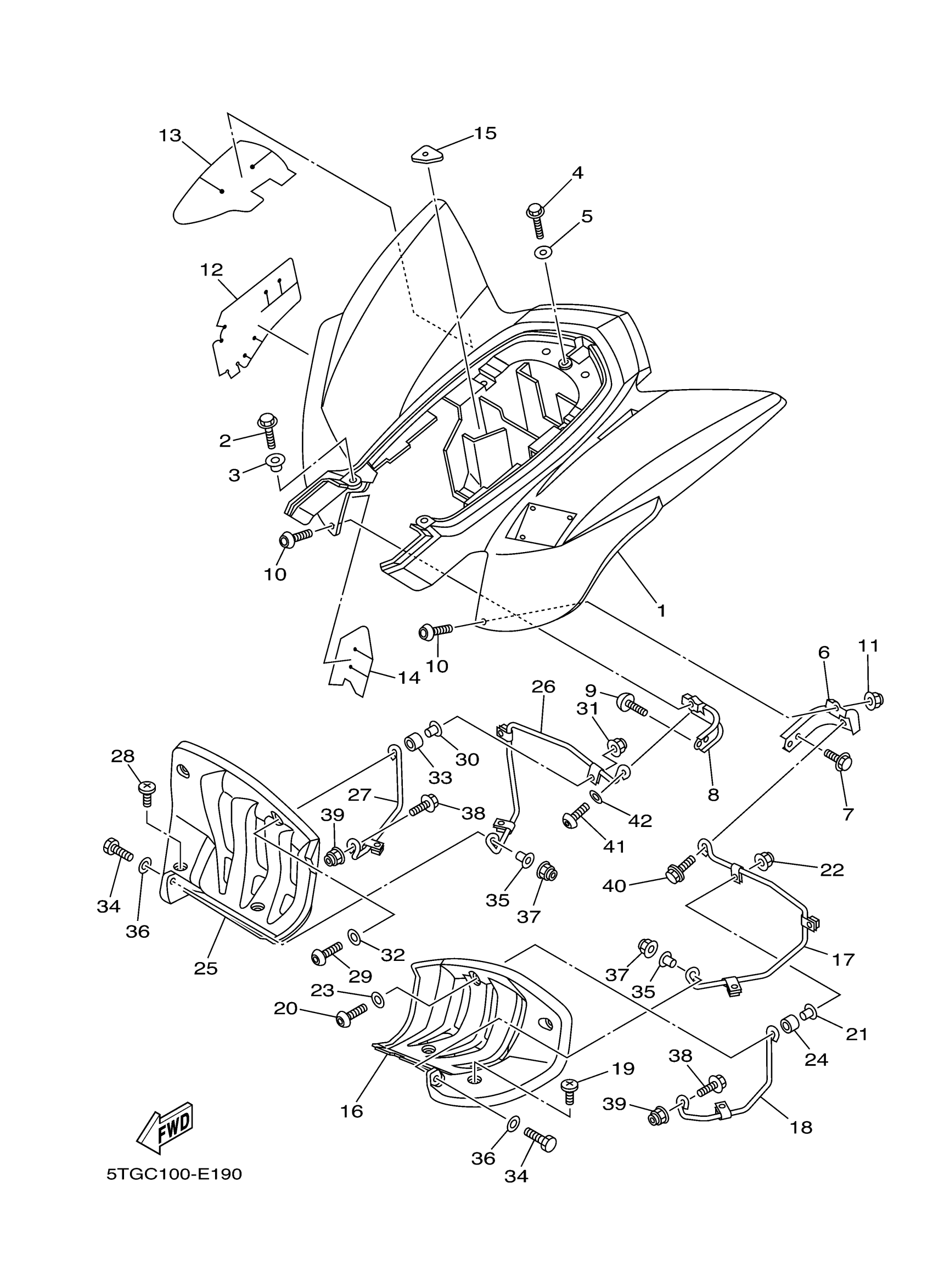

Yamaha YFZ450SE2W (YFZ450 SPECIAL EDITION 2-BLACK FLAMES) 5D38 2007 REAR FENDER Diagram

#

Description
Price

1

REAR FENDER COMP.

5TG-W2161-22-00

Unavailable

2

BOLT, FLANGE

90105-06084-00

$3.92

3

COLLAR

90387-06146-00

$6.17

4

BOLT, FLANGE

90105-06084-00

$3.92

5

WASHER, PLATE

90201-06087-00

Unavailable

6

STAY, REAR

5TG-21643-10-00

$26.57

7

BOLT, FLANGE

95817-08012-00

$3.98

8

STAY, REAR

5TG-21644-20-00

$30.22

9

BOLT, BUTTON HEAD

92012-08012-00

$6.37

10

BOLT

90111-06038-00

$3.45

11

NUT, U FLANGE

95604-06200-00

$2.35

12

COVER, REAR FENDER 1

5TG-2163A-01-00

$13.26

13

COVER, REAR FENDER 2

5TG-2163E-10-00

$6.82

14

COVER, REAR FENDER 3

5TG-2163F-10-00

$3.25

15

DAMPER 2

5TG-21639-00-00

$5.40

16

FLAP

5TG-21621-00-00

$43.82

17

STAY 1

5D3-2164F-10-00

$127.82

18

STAY 3

5D3-2164H-10-00

$36.14

19

SCREW, BINDING (10V)

90154-05013-00

$4.71

20

BOLT, BUTTON

92017-06035-00

$2.37

21

SPACER (4F2)

90560-06201-00

$12.20

22

NUT,SELF-LOCKING

95607-06200-00

$10.25

23

WASHER, PLATE (8K2)

90201-06778-00

$3.69

24

COLLAR

90387-06197-00

$6.17

25

FLAP

5TG-21691-00-00

$43.82

26

STAY 2

5D3-2164G-10-00

$81.74

27

STAY 4

5D3-2164J-10-00

$41.86

28

SCREW, BINDING (10V)

90154-05013-00

$4.71

29

BOLT, BUTTON

92017-06035-00

$2.37

30

SPACER (4F2)

90560-06201-00

$12.20

31

NUT,SELF-LOCKING

95607-06200-00

$10.25

32

WASHER, PLATE (8K2)

90201-06778-00

$3.69

33

COLLAR

90387-06197-00

$6.17

34

BOLT, HEXAGON

97017-06025-00

$2.98

35

COLLAR

90387-06204-00

$6.17

36

WASHER, PLATE

90201-06093-00

Unavailable

37

NUT,SELF-LOCKING

95607-06200-00

$10.25

38

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

39

NUT, SELF-LOCKING

90185-08169-00

$7.09

40

BOLT, FLANGE(JN5)

95817-08016-00

$4.12

41

BOLT, BUTTON

92017-08020-00

$5.86

42

WASHER, PLATE(3XP)

90201-086P8-00

$4.35
