Description

Price

1

FUEL TANK COMP.

5TG-24110-00-00

Unavailable

2

CAP ASSY

5KM-24610-00-00

$53.05

3

FUEL COCK ASSY 1

5TG-24500-10-00

$55.76

4

SEAL, COCK

3AJ-24534-01-00

$9.32

5

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.74

6

O-RING

4X8-24512-00-00

$7.51

7

VALVE PACKING

3AC-24523-00-00

$11.58

8

SCREW, FLAT

98707-04016-00

$6.18

9

LEVER, COCK

4HM-24524-00-00

$5.68

10

DAMPER, LOCATING 1

5TG-24181-00-00

$6.46

11

SCREW

90149-06108-00

$0.95

12

BRACKET, SEAT

4EW-2412F-00-00

$12.71

13

SCREW, FLAT HEAD

98702-06025-00

$6.15

14

GROMMET (4V1)

90480-18290-00

$7.02

15

COLLAR (36R)

90387-066J1-00

$6.86

16

SEAT, BATTERY

5Y1-82122-00-00

$6.52

17

SEAT, DAMPER A

M12-T133A-00-00

$4.25

18

DAMPER

22F-2139X-00-00

$6.38

19

95822-06030

95822-06030-00

$1.54

20

WASHER, PLATE

90201-06033-00

$2.74

21

BOLT, BUTTON HEAD

92012-06025-00

$2.88

22

GROMMET

90480-18004-00

$6.42

23

COLLAR (36R)

90387-066J1-00

$6.86

24

HOSE

90445-09823-00

$10.65

25

DAMPER, PLATE 1

5TG-2414H-00-00

$23.48

26

SEAT, BATTERY

5Y1-82122-00-00

$6.52

27

RIVET

90269-06002-00

$6.17

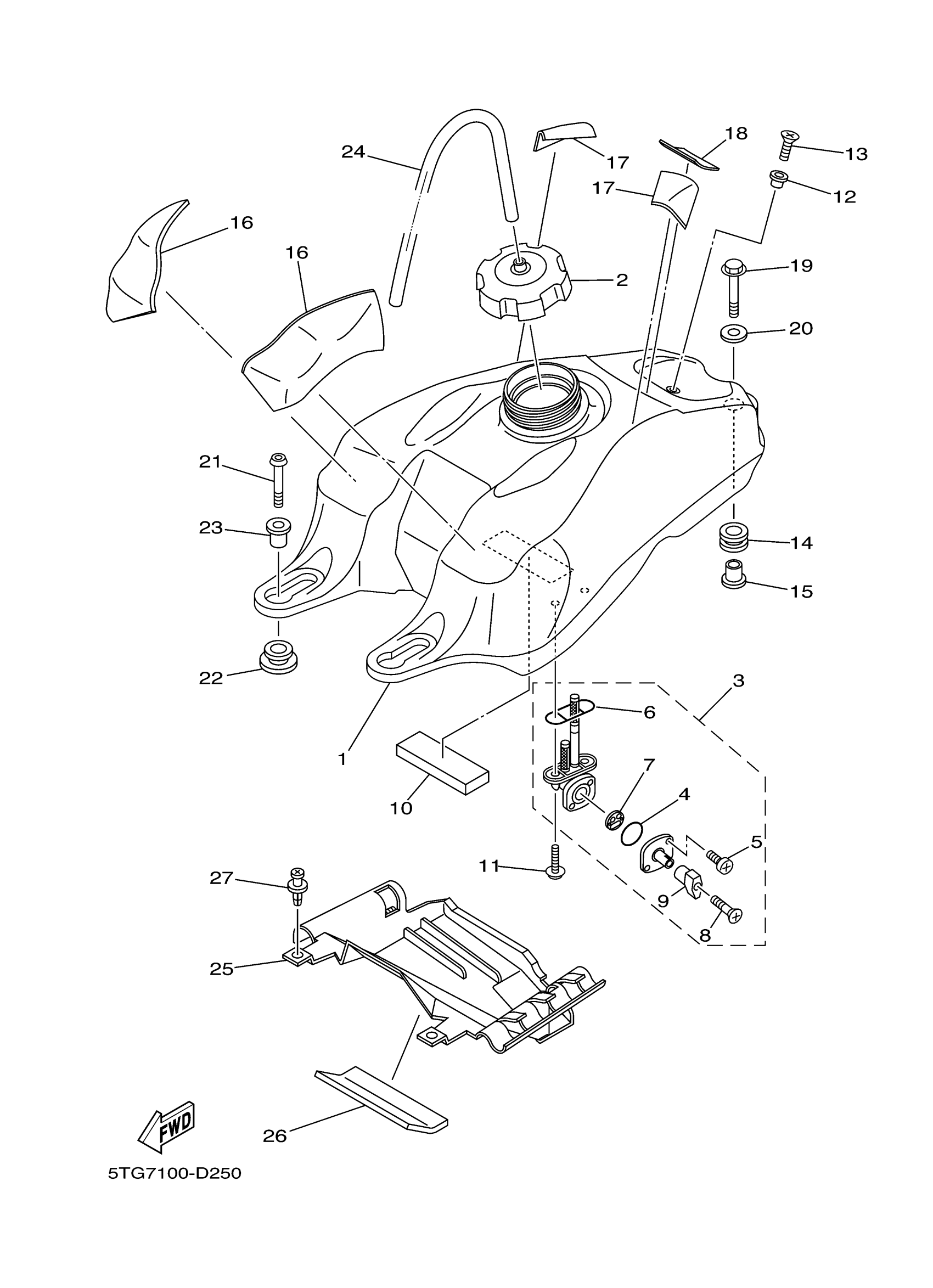

Yamaha YFZ450SE2W (YFZ450 SPECIAL EDITION 2-BLACK FLAMES) 5D38 2007 FUEL TANK Diagram

FUEL TANK COMP.
