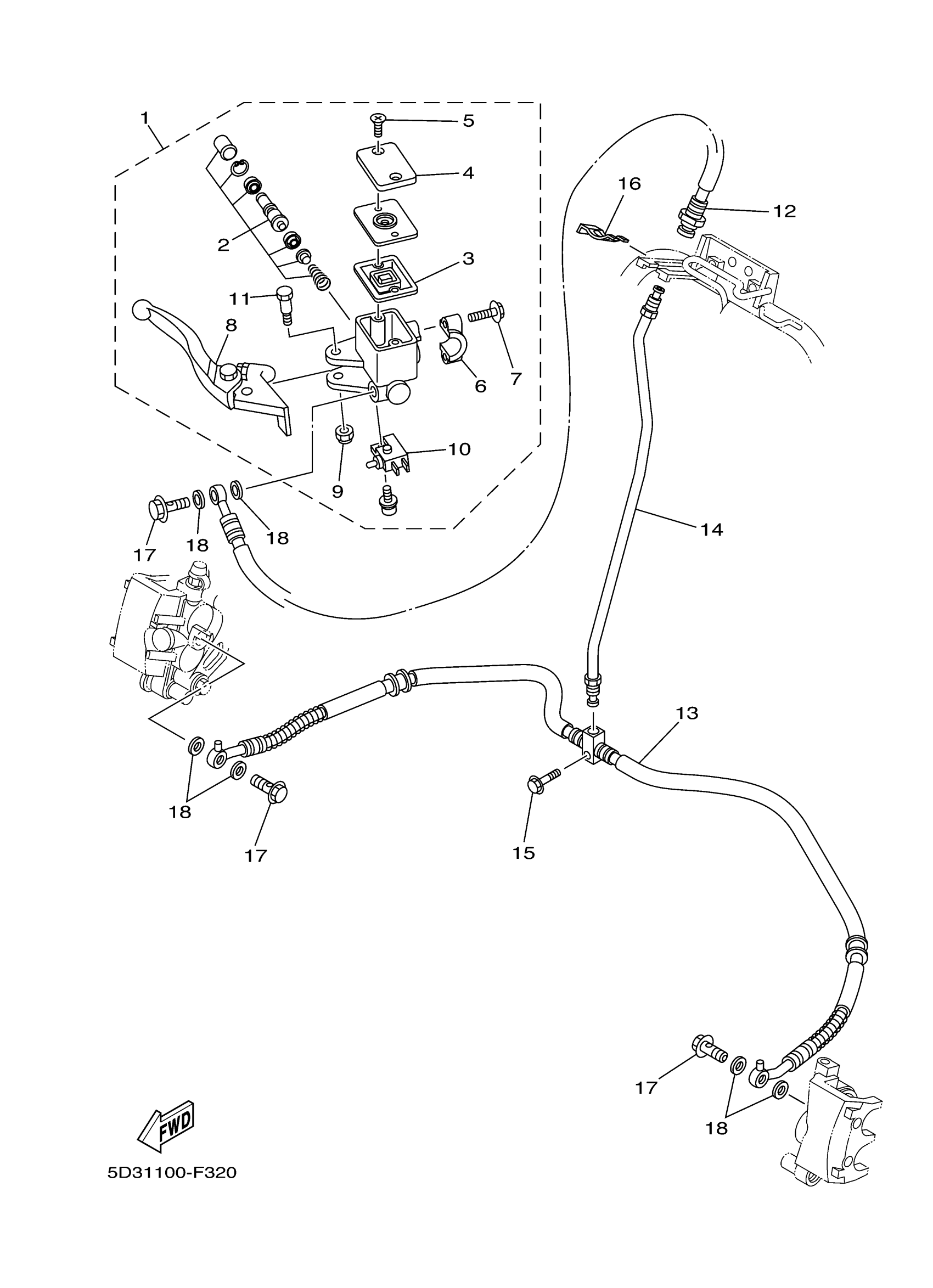

Yamaha YFZ450SE2W (YFZ450 SPECIAL EDITION 2-BLACK FLAMES) 5D38 2007 FRONT MASTER CYLINDER Diagram

Description

Price

MASTER CYLINDER ASSY

5D3-2583T-02-00

$343.55

CYLINDER KIT, MASTER

5HH-W0041-00-00

$35.73

DIAPHRAGM, RESERVOIR

4TT-25854-00-00

$15.83

CAP, RESERVOIR

5D3-25852-00-00

$17.41

SCREW

3D8-2589H-10-00

$6.46

BRACKET, MASTER CYLINDER

5LP-25867-00-00

$22.96

BOLT, FITTING

5MV-25833-00-00

$5.75

LEVER 2

5D3-83922-01-00

$84.19

NUT, U(4NK)

95604-06100-00

$6.68

FRONT STOP SWITCH ASSY

5D3-83980-00-00

$67.48

BOLT, LEVER

3B4-2589F-00-00

$10.89

HOSE, BRAKE 1

5TG-25872-10-00

Unavailable

HOSE, BRAKE 2

5TG-25873-21-00

$127.58

PIPE, BRAKE

5TG-25871-10-00

$12.65

BOLT, FLANGE

95822-06025-00

$1.46

CIRCLIP

2GU-25866-00-00

$8.70

BOLT, UNION(3GM)

90401-10159-00

$8.85

WASHER, PLATE(481)

90201-10118-00

$2.91
