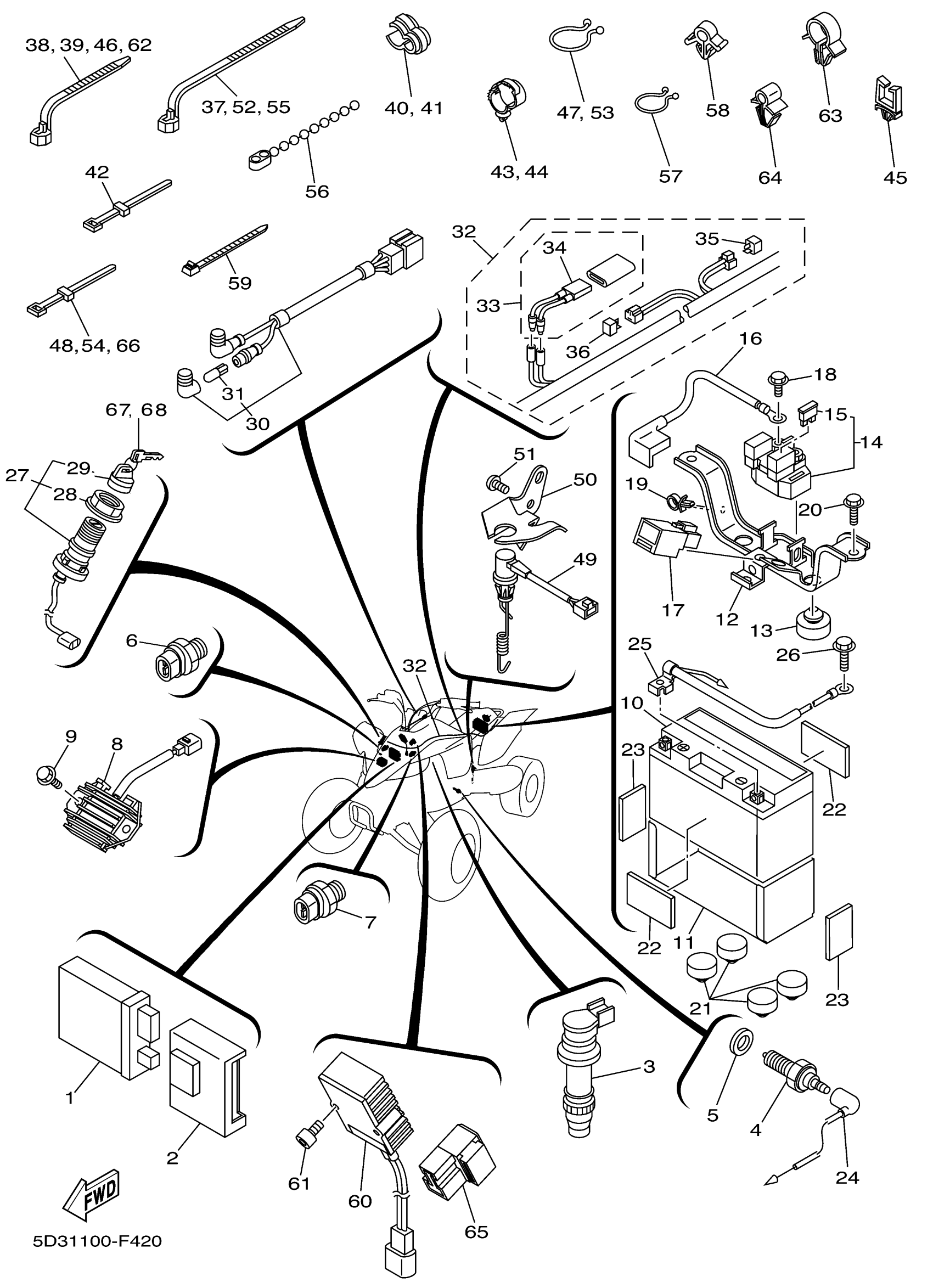

Yamaha YFZ450SE2W (YFZ450 SPECIAL EDITION 2-BLACK FLAMES) 5D38 2007 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

5TG-85540-10-00

$622.57

2

BAND

5TG-85546-00-00

$13.12

3

IGNITION COIL ASSY

5TA-82310-10-00

$174.23

4

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$52.07

5

GASKET (1KH,1.0T)

90430-10148-00

$4.74

6

THERMO SWITCH ASSY

5EB-82560-01-00

Unavailable

7

THERMO SWITCH ASSY

5LP-82560-01-00

Unavailable

8

RECTIFIER & REGULATOR ASSY

5TG-81960-00-00

$146.51

9

BOLT, FLANGE

95022-06020-00

$3.32

10

GT7B4 GS BATTERY - FA

GT7-B4000-00-00

$84.64

11

SEAT, BATTERY

5D3-82122-00-00

$10.71

12

BRACKET, BATTERY

5TG-82128-10-00

$38.24

13

PAD, BATTERY

5TG-82121-10-00

$3.58

14

STARTER RELAY ASSY (RC19-032)

5JW-81940-02-00

$107.44

15

FUSE (12V 15A)

36Y-82151-00-00

$4.08

16

WIRE, PLUS LEAD

5TG-82115-00-00

$22.45

17

RELAY ASSY

12R-81950-02-00

Unavailable

18

BOLT, FLANGE

95022-06008-00

$6.26

19

CLAMP(3XV)

90464-15157-00

$6.17

20

BOLT, FLANGE

90105-06084-00

$3.92

21

PAD, BATTERY

5TG-82121-10-00

$3.58

22

SEAT, BATTERY

5D3-82123-00-00

$6.46

23

DAMPER

22F-2139X-00-00

$6.38

24

WIRE, LEAD

5TG-82541-00-00

$11.63

25

WIRE, MINUS LEAD

5TG-82116-01-00

Unavailable

26

BOLT, FLANGE

95022-06008-00

$6.26

27

MAIN SWITCH ASSY

5TG-82510-02-00

Unavailable

28

NUT, MAIN SWITCH

3HN-82569-00-00

$5.26

29

CAP, KEY

3HN-82579-00-00

$12.27

30

PILOT LIGHT ASSY

5TG-83530-00-00

$27.54

31

BULB (12V-1.7W)

3FV-83517-00-00

$6.30

32

WIRE HARNESS ASSY

5D3-82590-00-00

$321.43

33

CIRCUIT BREAKER ASSY

5ND-82180-00-00

$34.94

34

THERMO SWITCH ASSY

5ND-82560-00-00

$33.38

35

DIODE ASSY

4WA-81980-00-00

$25.93

36

DIODE ASSY

3WP-81980-00-00

$18.85

37

CLAMP(4FM)

90464-15195-00

$2.77

38

CLAMP(4FM)

90464-15195-00

$2.77

39

CLAMP(4FM)

90464-15195-00

$2.77

40

CLAMP(53Y)

90464-15065-00

$5.72

41

CLAMP(53Y)

90464-15065-00

$5.72

42

BAND, SWITCH CORD

437-83936-01-00

$4.63

43

CLAMP(4AP)

90464-20181-00

$2.80

44

CLAMP(4AP)

90464-20181-00

$2.80

45

CLAMP

90464-20159-00

Unavailable

46

CLAMP(4FM)

90464-15195-00

$2.77

47

CLAMP (8M1)

90464-30040-00

$7.45

48

BAND, SWITCH CORD

437-83936-11-00

$3.20

49

STOP SWITCH ASSY

5TG-82530-10-00

$27.80

50

STAY, STOP SWITCH

5TG-2144G-10-00

Unavailable

51

SCREW, BIND(J45)

98980-06012-00

$6.17

52

CLAMP(4FM)

90464-15195-00

$2.77

53

CLAMP (8M1)

90464-30040-00

$7.45

54

BAND, SWITCH CORD

437-83936-11-00

$3.20

55

CLAMP(4FM)

90464-15195-00

$2.77

56

CLAMP

90464-20031-00

$2.62

57

CLAMP

90464-25267-00

$5.62

58

CLAMP(4BD)

90464-48174-00

$2.63

59

CLAMP (6E5)

90465-13M11-00

$5.72

60

RESISTOR ASSY

5TG-85370-00-00

$114.83

61

BOLT

91312-05010-00

$4.92

62

CLAMP(4FM)

90464-15195-00

$2.77

63

CLAMP(3XV)

90464-15157-00

$6.17

64

CLAMP(4BD)

90464-48174-00

$2.63

65

RELAY ASSY

5DM-81950-01-00

$24.72

66

BAND, SWITCH CORD

437-83936-11-00

$3.20

67

KEY, BLANK (A-TYPE)

90890-56001-00

$2.92

68

KEY, BLANK (B-TYPE)

90890-56002-00

$2.92
