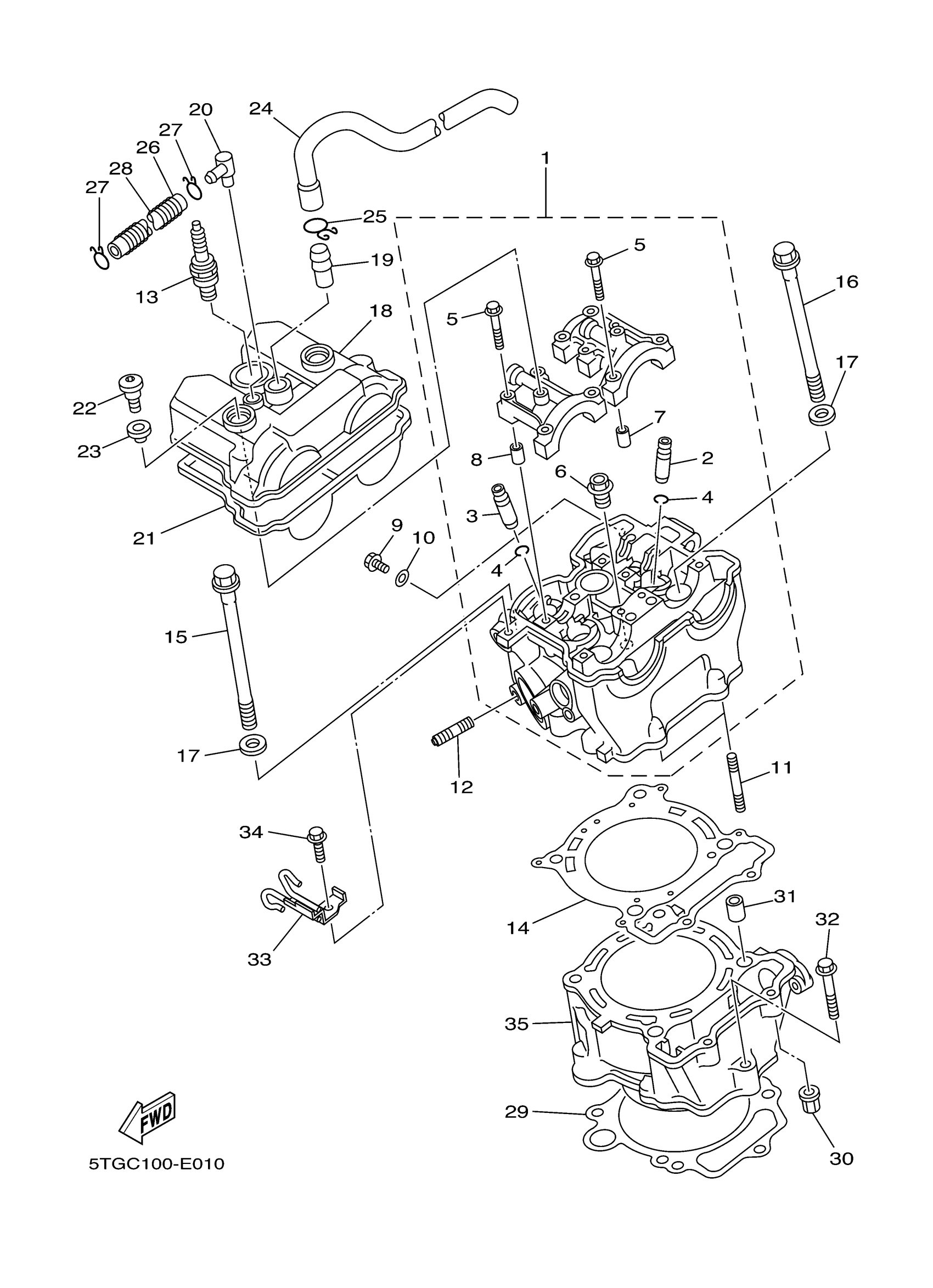

Yamaha YFZ450SE2W (YFZ450 SPECIAL EDITION 2-BLACK FLAMES) 5D38 2007 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

5D3-11102-00-00

Unavailable

2

GUIDE, INTAKE VALVE

5TA-11133-10-00

$55.43

3

GUIDE, EXHAUST VALVE

5TA-11134-10-00

$47.51

4

CIRCLIP(1WG)

93440-10153-00

$1.62

5

BOLT, WASHER BASED

90105-06027-00

$6.23

6

PLUG, STRAIGHT SCREW

90340-12007-00

$6.25

7

PIN, DOWEL(3XW)

91808-16023-00

$5.48

8

PIN, DOWEL(3XW)

91808-16023-00

$5.48

9

BOLT, FLANGE

95022-06010-00

$5.45

10

GASKET 256113960000

90430-06014-00

$7.23

11

BOLT, STUD

95612-06635-00

$1.91

12

BOLT, STUD

90116-08022-00

$5.86

13

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

Unavailable

14

GASKET, CYLINDER HEAD 1

5TA-11181-00-00

$69.60

15

BOLT, WASHER BASED

90105-104A7-00

$9.89

16

BOLT, WASHER BASED

90105-106A3-00

$9.89

17

WASHER, PLATE

90201-10025-00

$6.22

18

COVER, CYLINDER HEAD 1

5TG-11191-01-00

Unavailable

19

PIPE, BREATHER 2

371-11167-01-00

$10.35

20

PIPE, BREATHER 2

5D3-11167-00-00

Unavailable

21

GASKET, HEAD COVER 1

5TA-11193-00-00

$52.92

22

BOLT

90109-06203-00

$5.14

23

RUBBER, MOUNT 1

5EA-1111G-00-00

$17.97

24

PIPE, BREATHER 1

5TG-11166-00-00

$24.80

25

CLIP

90467-140A4-00

$8.31

26

HOSE (L370)

90445-112E1-00

$20.43

27

CLIP

90467-110A3-00

$4.23

28

SPRING, COMPRESSION

90501-080A5-00

Unavailable

29

GASKET, CYLINDER

5TA-11351-00-00

$15.83

30

NUT

90179-06033-00

$4.00

31

PIN, DOWEL(4XL)

93612-16254-00

$4.37

32

BOLT, FLANGE

95022-06035-00

$2.98

33

HOLDER

5D3-11395-00-00

$25.51

34

BOLT, FLANGE

95812-06014-00

$5.45

35

CYLINDER 1

5TA-11311-12-00

$518.52
