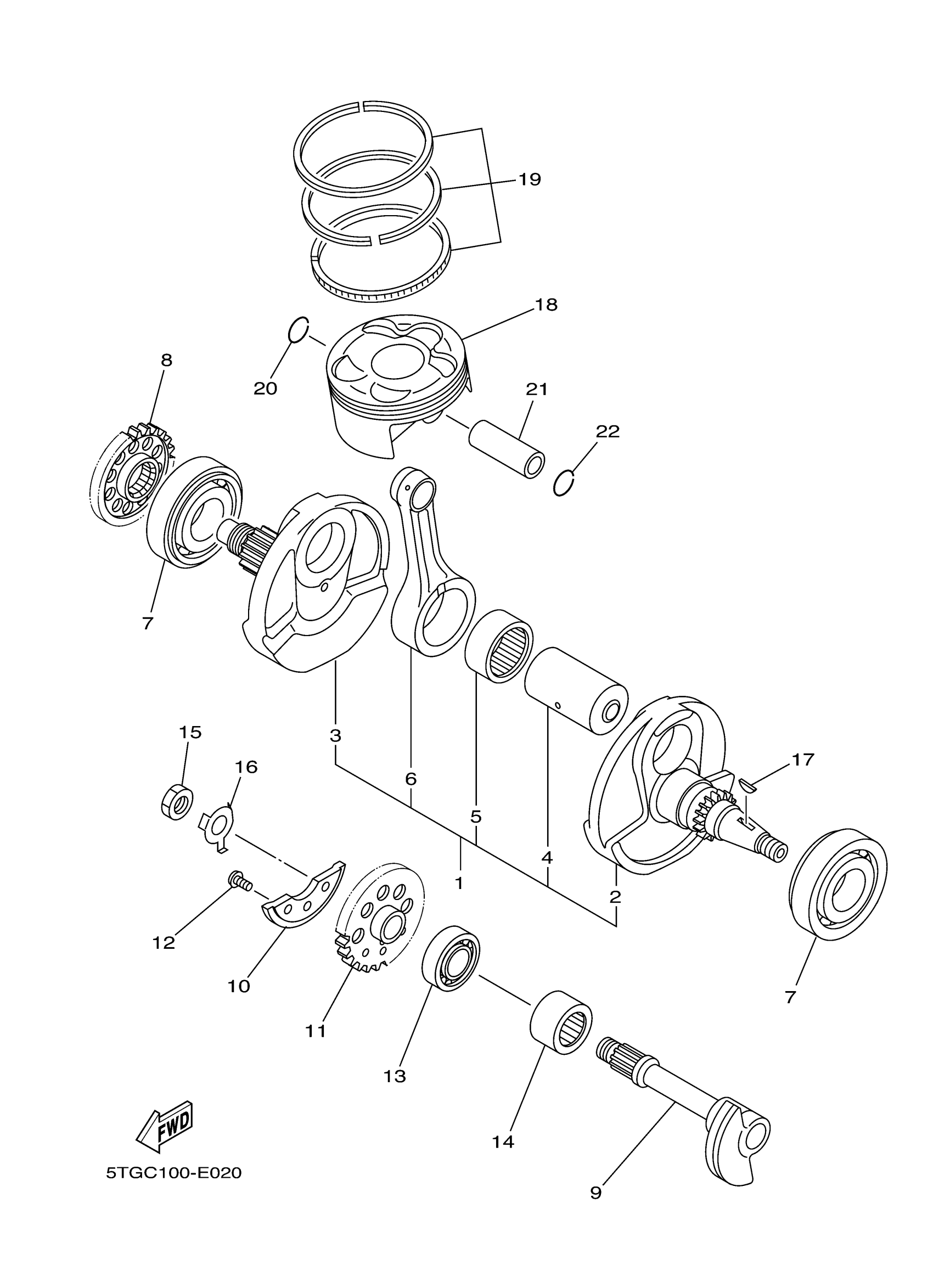

Yamaha YFZ450SE2W (YFZ450 SPECIAL EDITION 2-BLACK FLAMES) 5D38 2007 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

5TG-11400-31-00

$463.74

2

CRANK 1

5TG-11412-30-00

$215.82

3

CRANK 2

5TG-11422-30-00

$198.26

4

PIN, CRANK 1

5TG-11681-01-00

$72.96

5

BEARING

93310-63458-00

$104.60

6

ROD, CONNECTING

5D3-11651-00-00

$113.03

7

BEARING

93306-30633-00

$87.90

8

GEAR, DRIVE

5TA-11536-00-00

$116.82

9

SHAFT 1

5TA-11455-11-00

$397.85

10

WEIGHT 1

5BE-11454-00-00

$52.09

11

GEAR, BALANCE WEIGHT

5TA-11531-01-00

Unavailable

12

SCREW

90149-06084-00

$6.22

13

BEARING(37F)

93306-20335-00

$29.71

14

BEARING, CYLINDRICAL(3YL)

93311-62574-00

$54.64

15

NUT, HEXAGON

90170-14171-00

$7.26

16

WASHER, LOCK(4GA)

90215-14287-00

$4.42

17

KEY, WOODRUFF

90280-03006-00

$6.80

18

PISTON (STD)

5TG-11631-12-00

$155.22

19

PISTON RING SET (STD)

5TG-11603-00-00

$50.52

20

CIRCLIP 341116340000

93450-22027-00

$6.00

21

PIN, PISTON

5TG-11633-10-00

$26.81

22

CIRCLIP 341116340000

93450-22027-00

$6.00
