Description

Price

1

GEAR, PRIMARY DRIVE

5TG-16111-00-00

$79.17

2

WASHER, LOCK

90215-21003-00

$5.38

3

NUT

90179-20001-00

$13.78

4

PRIMARY DRIVEN GEAR COMP.

5D3-16150-00-00

$313.08

5

BOSS, CLUTCH

5TA-16371-20-00

$120.37

6

PLATE, PRESSURE 1

5TG-16351-00-00

$74.44

7

PLATE, CLUTCH 2

4X7-16325-10-00

$15.32

8

PLATE, FRICTION

5TA-16321-00-00

$22.96

9

SPRING, COMPRESSION(1UY)

90501-231E9-00

$8.82

10

SCREW, WITH WASHER (583)

90159-06010-00

$6.54

11

PLATE, THRUST 1

2JN-16154-00-00

$18.14

12

PLATE, FRICTION

5JG-16321-00-00

$29.57

13

SPRING, CLUTCH BOSS

5JG-16383-00-00

$36.31

14

PLATE, SEAT

5JG-16384-00-00

$36.00

15

WASHER, LOCK

90215-20005-00

$6.20

16

NUT (34L)

90170-20327-00

$16.98

17

ROD, PUSH 1

5TG-16356-00-00

$37.02

18

BEARING, THRUST (713)

93340-21505-00

$16.62

19

WASHER, PLATE(1RE)

90201-125L6-00

$6.29

20

CIRCLIP (4G0)

93440-10085-00

$6.17

21

BALL (1M1)

93515-32029-00

$2.77

22

ROD, PUSH 2

5TG-16357-00-00

$38.92

23

AXLE, PUSH LEVER

5TG-16382-10-00

$100.57

24

LEVER, PUSH

5TG-16342-00-00

$24.95

25

WASHER, PLATE

90201-10032-00

$1.09

26

CIRCLIP(10W)

99009-10400-00

$3.91

27

BEARING

93317-11287-00

$20.48

28

OIL SEAL (4G0)

93102-12224-00

$8.35

29

PLATE, SEAT

5D3-16384-00-00

$6.52

30

SPRING, TORSION

90508-16054-00

$3.88

31

BOLT, FLANGE

95022-06012-00

$3.00

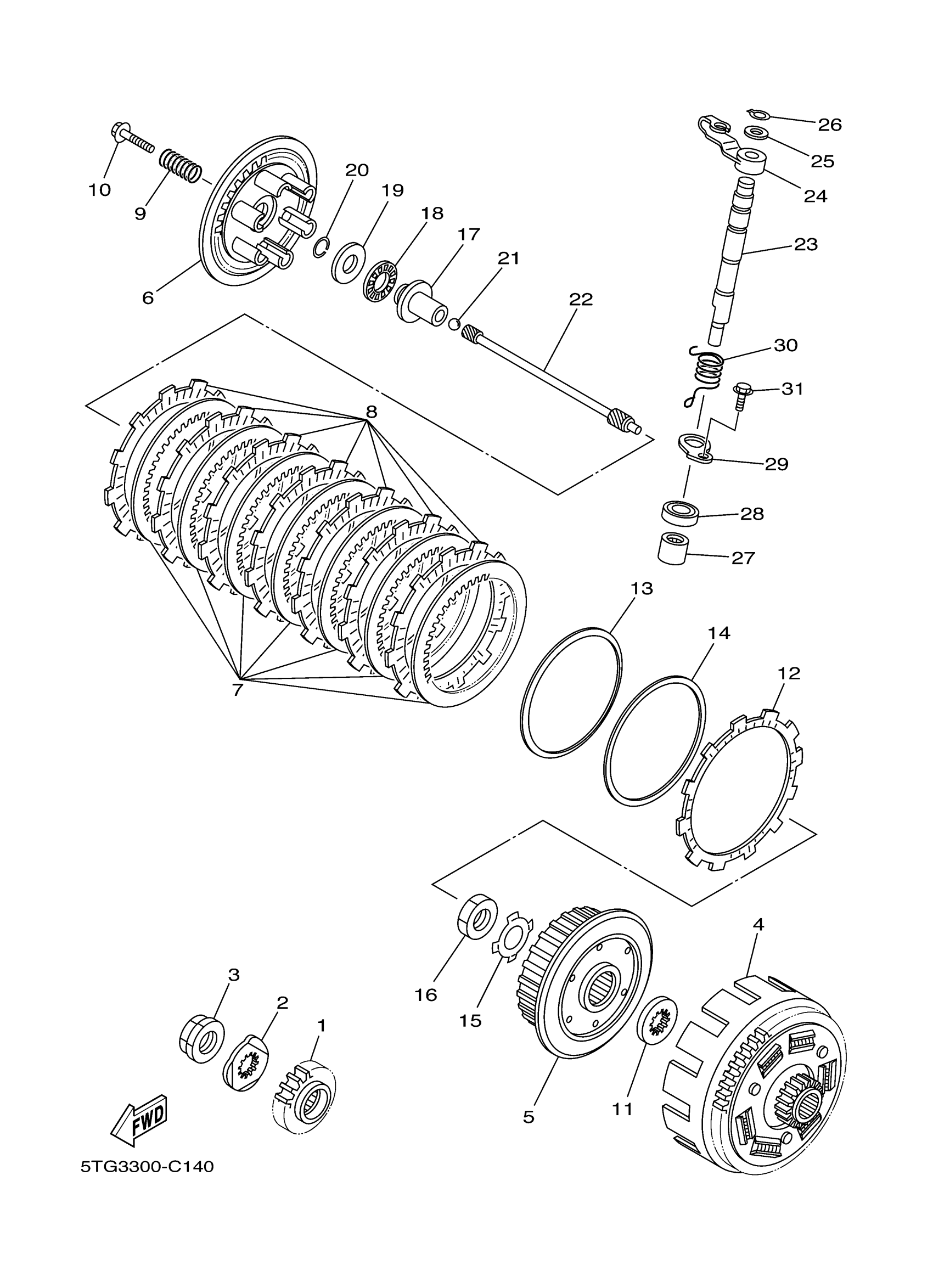

Yamaha YFZ450SE2W (YFZ450 SPECIAL EDITION 2-BLACK FLAMES) 5D38 2007 CLUTCH Diagram
