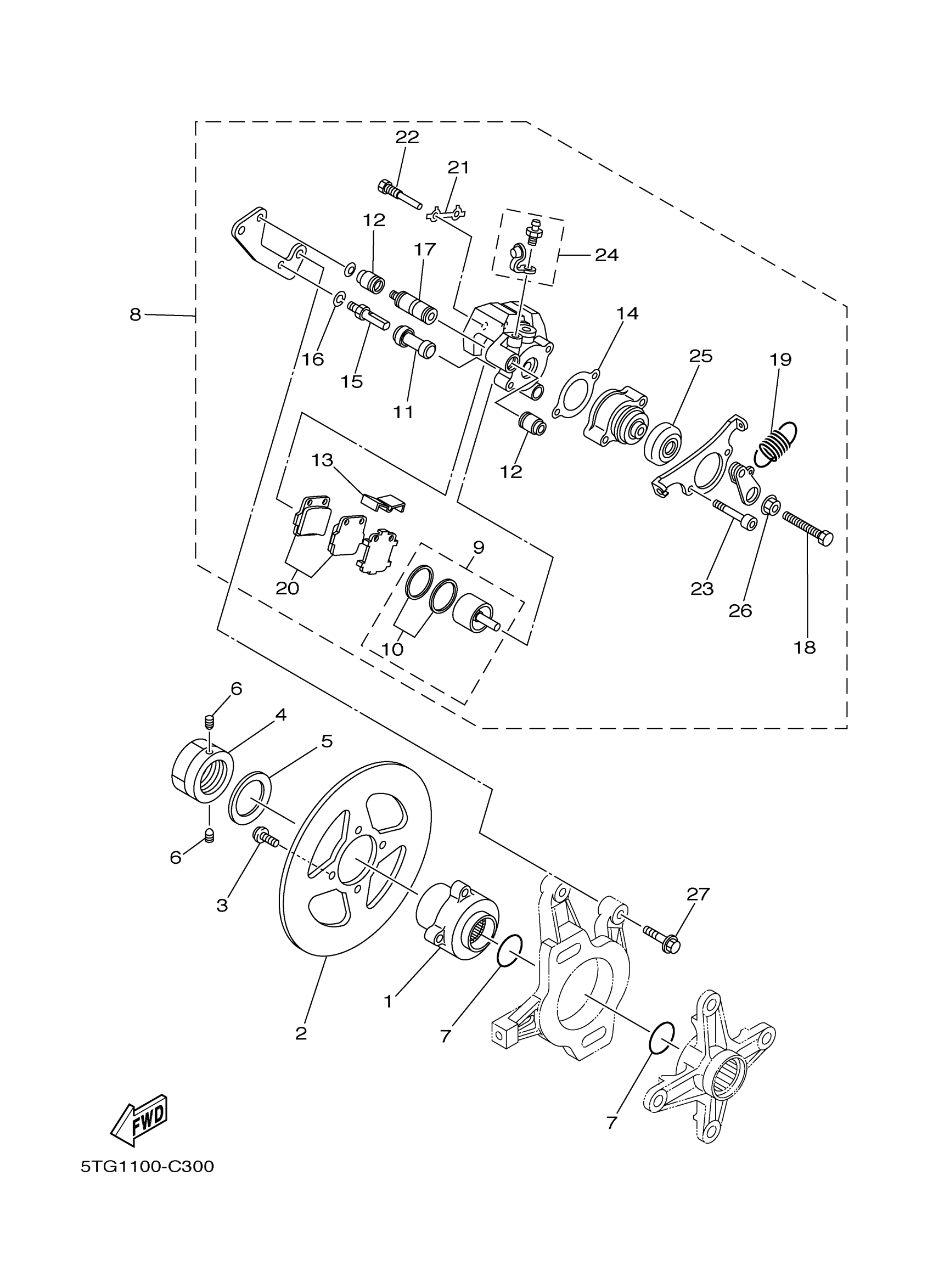

Yamaha YFZ450S (YFZ450) 5TG1 2004 REAR BRAKE CALIPER Diagram

#

Description
Price

1

BRACKET, DISC

5TG-25712-00-00

Unavailable

2

DISK, REAR BRAKE 2

5TG-2582W-00-00

Unavailable

3

BOLT,HEX. SOCKET BUTTON

90111-08053-00

$6.37

4

NUT

90170-36003-00

Unavailable

5

WASHER, CONICAL SPRING

90208-37001-00

$9.46

6

BOLT, SET (8K2)

90113-06039-00

$6.97

7

O-RING(2TY)

93210-36769-00

$9.85

8

CALIPER ASSY, REAR 2

5TG-2580W-00-00

$538.77

9

PISTON ASSY, CALIPER

1UY-W0057-50-00

$103.78

10

CALIPER SEAL KIT

1UY-W0047-50-00

$15.83

11

BOOT 2

1UY-25937-51-00

$12.27

12

BOOT, CALIPER

1UY-25917-51-00

$5.89

13

SUPPORT, PAD

1UY-25919-51-00

$20.29

14

. RUBBER, BUSHING

1UY-25975-51-00

Unavailable

15

BOLT

1UY-25926-51-00

$3.34

16

WASHER, SPRING

1UY-25938-51-00

$7.51

17

PIN, SLIDE

1UY-25914-51-00

Unavailable

18

ADJUSTBOLT

1UY-25972-51-00

$11.47

19

SPRING, RETURN

5TG-25977-50-00

$6.43

20

BRAKE PAD KIT 2

5LP-W0046-51-00

Unavailable

21

WASHER, PAD PIN

1UY-25933-51-00

$6.46

22

PIN, PAD

1UY-25924-51-00

$11.36

23

BOLT 1

5KE-25821-00-00

$3.77

24

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

25

BOOT

1UY-25974-51-00

$6.43

26

NUT

1UY-25973-51-00

$6.38

27

BOLT, WASHER BASED(1UY)

90105-08440-00

$5.12
