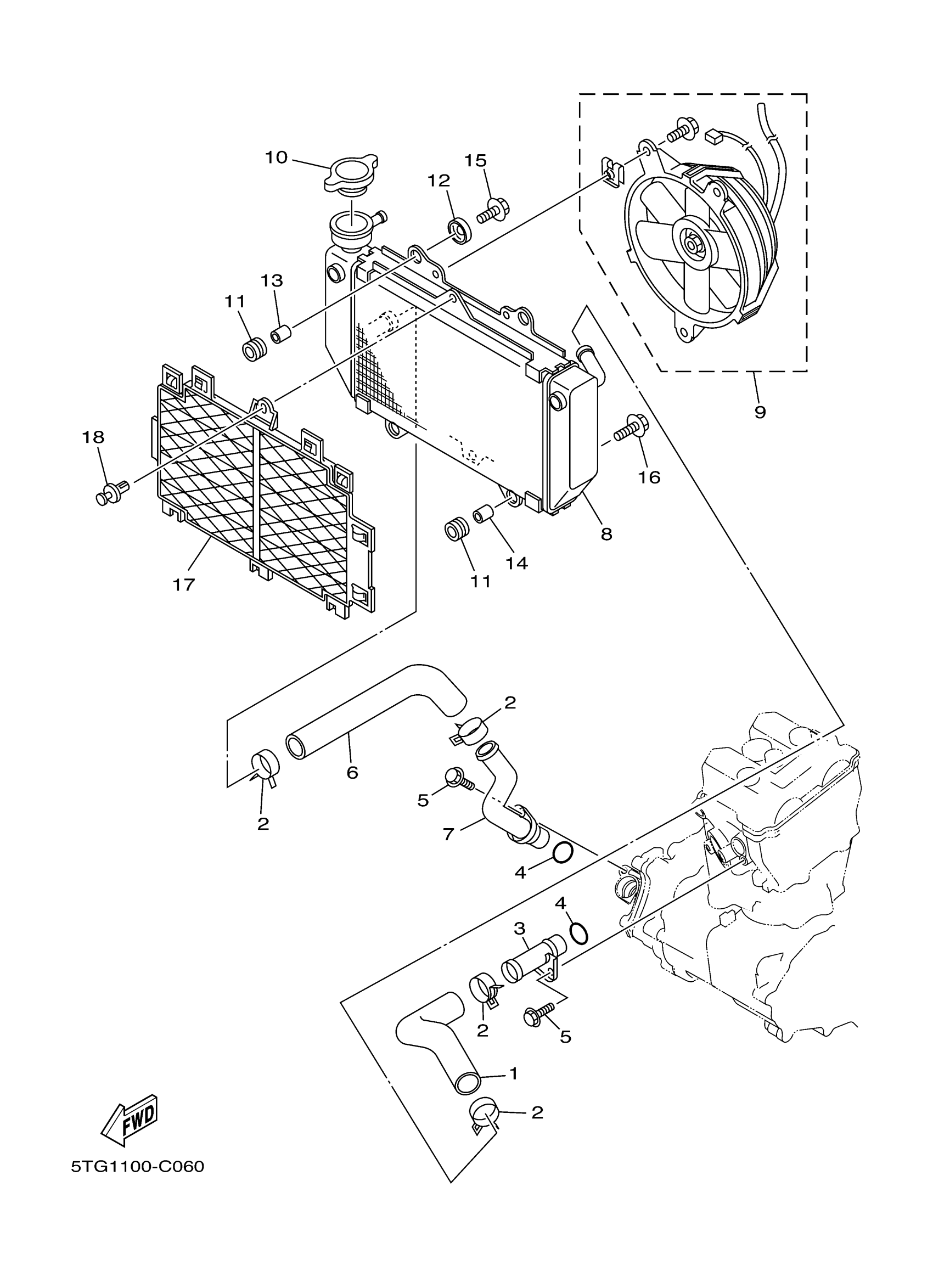

Yamaha YFZ450S (YFZ450) 5TG1 2004 RADIATOR HOSE Diagram

#

Description
Price

1

HOSE 1

5TG-12576-00-00

$14.72

2

CLIP (10V)

90467-23067-00

$3.86

3

PIPE 1

5TG-12481-00-00

$23.69

4

O-RING (5U8)

93210-16500-00

$5.77

5

BOLT, FLANGE(4MY)

95027-06012-00

$3.28

6

HOSE 2

5TG-12577-00-00

$14.74

7

PIPE 2

5TG-12482-00-00

$34.91

8

RADIATOR ASSY

5TG-12461-00-00

Unavailable

9

BLOWER ASSY

5TG-12405-00-00

$388.35

10

CAP, RADIATOR

5SL-12462-01-00

Unavailable

11

GROMMET(2GH)

90480-12475-00

$6.68

12

WASHER

90209-06012-00

$4.71

13

COLLAR

90387-06113-00

$10.51

14

COLLAR

90387-07020-00

$6.17

15

BOLT, FLANGE

95817-06020-00

$2.69

16

BOLT, FLANGE

95817-06025-00

$1.46

17

COVER, RADIATOR

5TG-12467-00-00

Unavailable

18

RIVET(4JH)

90269-07076-00

$6.00
