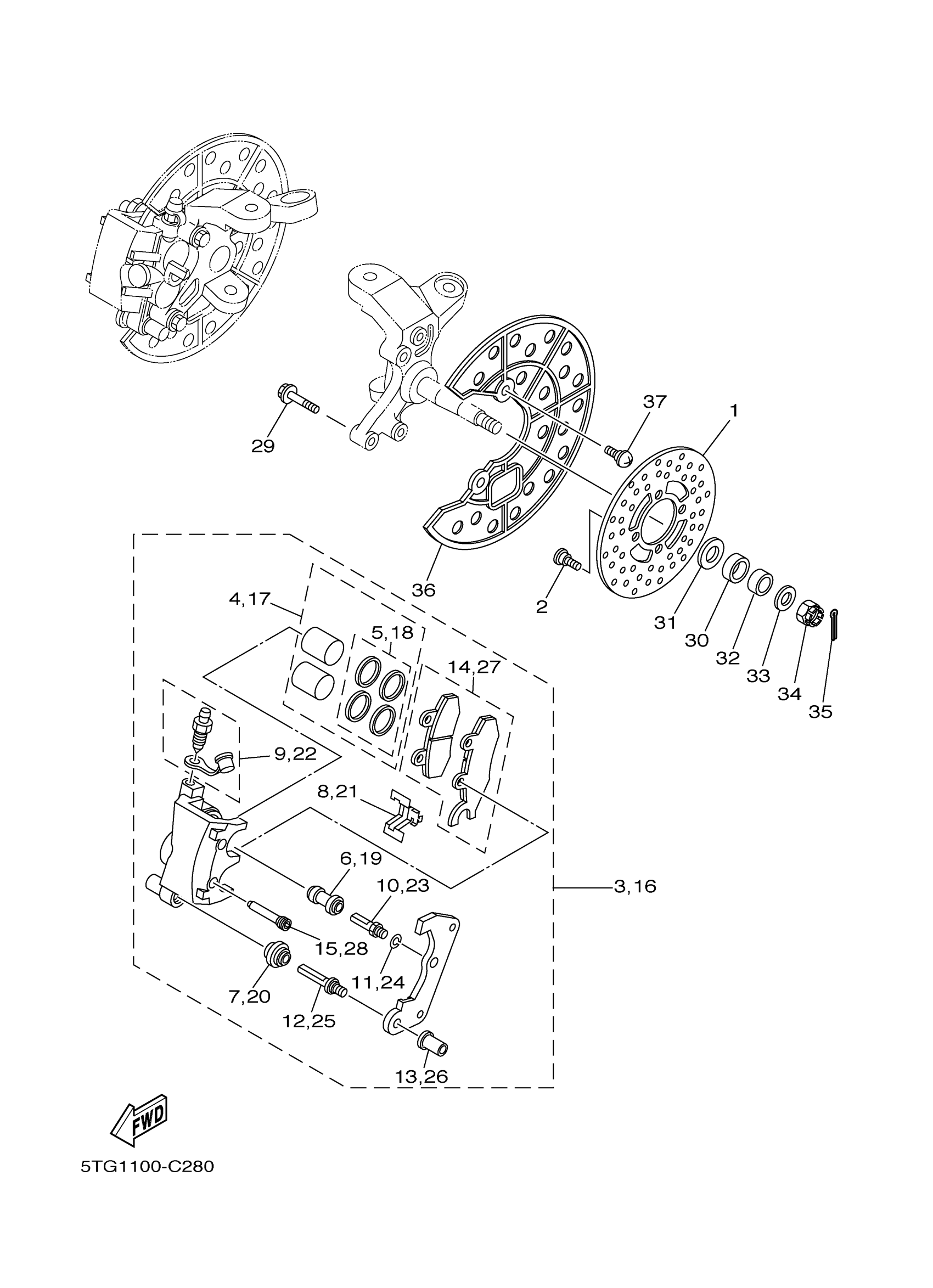

Yamaha YFZ450S (YFZ450) 5TG1 2004 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

3GD-2582T-10-00

$194.97

2

BOLT

90109-08087-00

$2.65

3

CALIPER ASSY (LEFT)

5TG-2580T-00-00

Unavailable

4

PISTON ASSY, CALIPER

5TG-W0057-00-00

$72.98

5

CALIPER SEAL KIT

3LC-W0047-50-00

$50.68

6

BOOT 2

1UY-25937-51-00

$12.27

7

BOOT, CALIPER

3JD-25917-00-00

$7.51

8

SUPPORT, PAD

3JD-25919-00-00

$23.43

9

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

10

BOLT

1UY-25926-51-00

$3.34

11

WASHER, SPRING

1UY-25938-51-00

$7.51

12

BOLT

3JD-25926-00-00

$6.43

13

NUT

3JD-25961-00-00

$6.94

14

. BRAKE PAD KIT

5TG-W0045-00-00

Unavailable

15

PIN, PAD

5TG-25924-00-00

$14.25

16

CALIPER ASSY (RIGHT)

5TG-2580U-00-00

Unavailable

17

PISTON ASSY, CALIPER

5TG-W0057-00-00

$72.98

18

CALIPER SEAL KIT

3LC-W0047-50-00

$50.68

19

BOOT 2

1UY-25937-51-00

$12.27

20

BOOT, CALIPER

3JD-25917-00-00

$7.51

21

SUPPORT, PAD

3JD-25919-00-00

$23.43

22

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

23

BOLT

1UY-25926-51-00

$3.34

24

WASHER, SPRING

1UY-25938-51-00

$7.51

25

BOLT

3JD-25926-00-00

$6.43

26

NUT

3JD-25961-00-00

$6.94

27

. BRAKE PAD KIT

5TG-W0045-10-00

Unavailable

28

PIN, PAD

5TG-25924-00-00

$14.25

29

BOLT, WASHER BASED(2XJ)

90105-08520-00

$2.69

30

COLLAR

90387-20005-00

$21.51

31

WASHER, PLATE (888)

90201-20279-00

$6.69

32

COLLAR(1UY)

90387-150R1-00

$6.29

33

WASHER PLATE 248181370000

90201-14220-00

$6.17

34

NUT, CASTLE(2UJ)

90171-14056-00

$10.57

35

PIN, COTTER

91401-30025-00

$6.18

36

RING, WHEEL 1 (LEFT)

5TG-2514A-00-00

$9.32

37

SCREW, BINDING (31K)

90154-06014-00

$7.68
