Description

Price

1

PIPE, EXHAUST 1

5TG-14611-20-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

5TG-14628-20-00

$101.69

3

WASHER, PLATE

90201-05015-00

$6.29

4

SCREW, BIND(1JK)

98980-06010-00

$6.89

5

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.78

6

GASKET, EXHAUST PIPE

3VD-14613-01-00

$9.80

7

BOLT, SOCKET

91317-08020-00

$2.34

8

MUFFLER 1

5TG-14711-01-00

Unavailable

9

BOLT, WASHER BASED (7H3)

90105-10147-00

$8.75

10

WASHER, PLATE

92990-10600-00

$2.61

11

PIPE, OUTLET

5TG-14752-09-00

$120.40

12

BOLT, SMALL FLANGE

95027-06008-00

$5.60

13

GASKET, MUFFLER

8FA-14714-10-00

$34.71

14

PROTECTOR, MUFFLER 1

5TG-14718-00-00

Unavailable

15

WASHER, PLATE

90201-05015-00

$6.29

16

SCREW, BINDING

98907-06010-00

$1.49

17

WASHER(6TA)

92907-06200-00

$6.18

18

CAP, SILENCER

5TG-14787-00-00

$127.51

19

BOLT, HEXAGON SOCKET HEAD(1WG)

90110-06134-00

$5.62

20

BAND, SILENCER

5BE-14788-00-00

$29.58

21

BOLT, FLANGE(4LN)

95817-08025-00

$6.17

22

WASHER (853)

90201-08326-00

$6.17

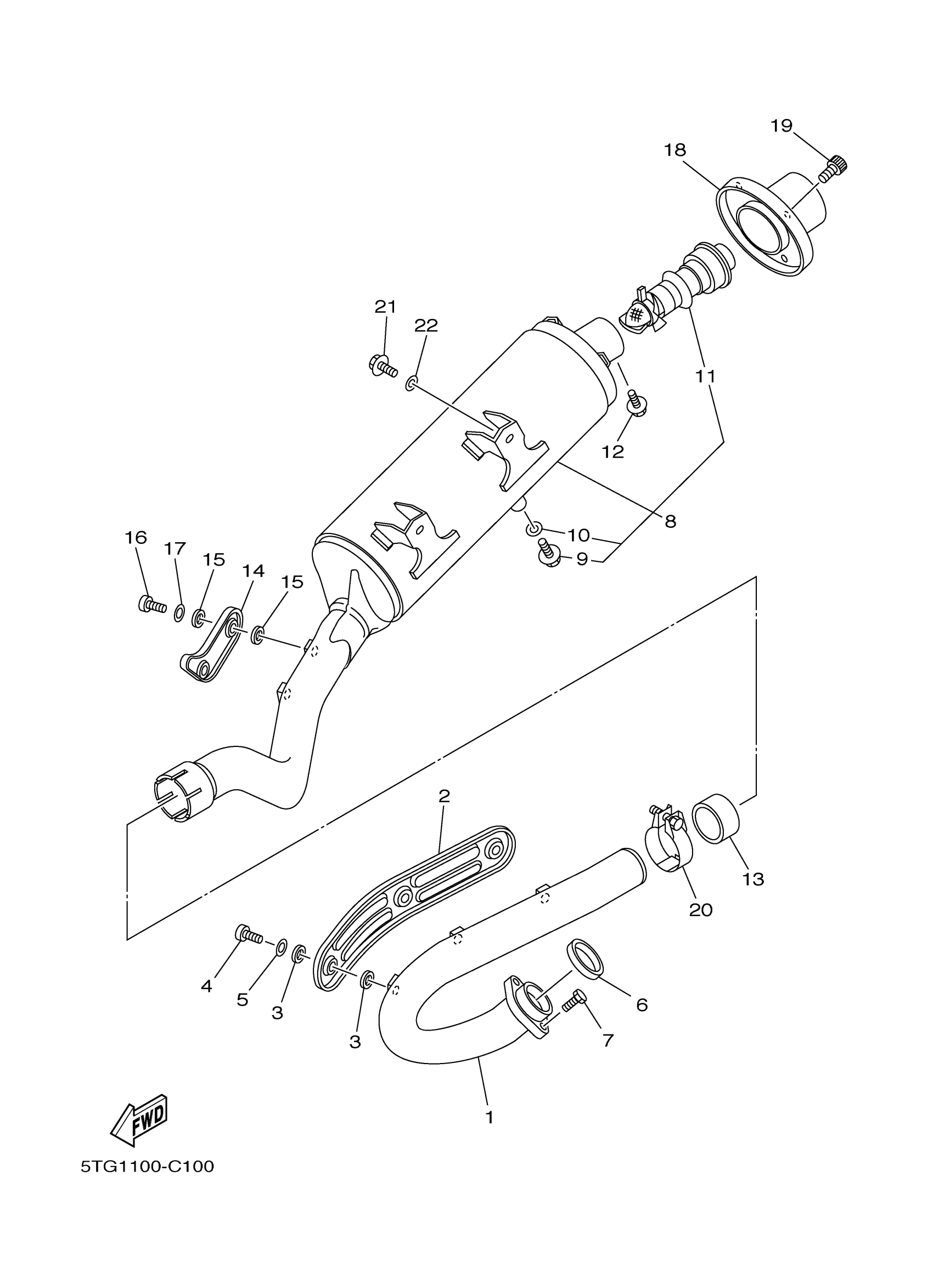

Yamaha YFZ450S (YFZ450) 5TG1 2004 EXHAUST Diagram

PIPE, EXHAUST 1

MUFFLER 1

PROTECTOR, MUFFLER 1
