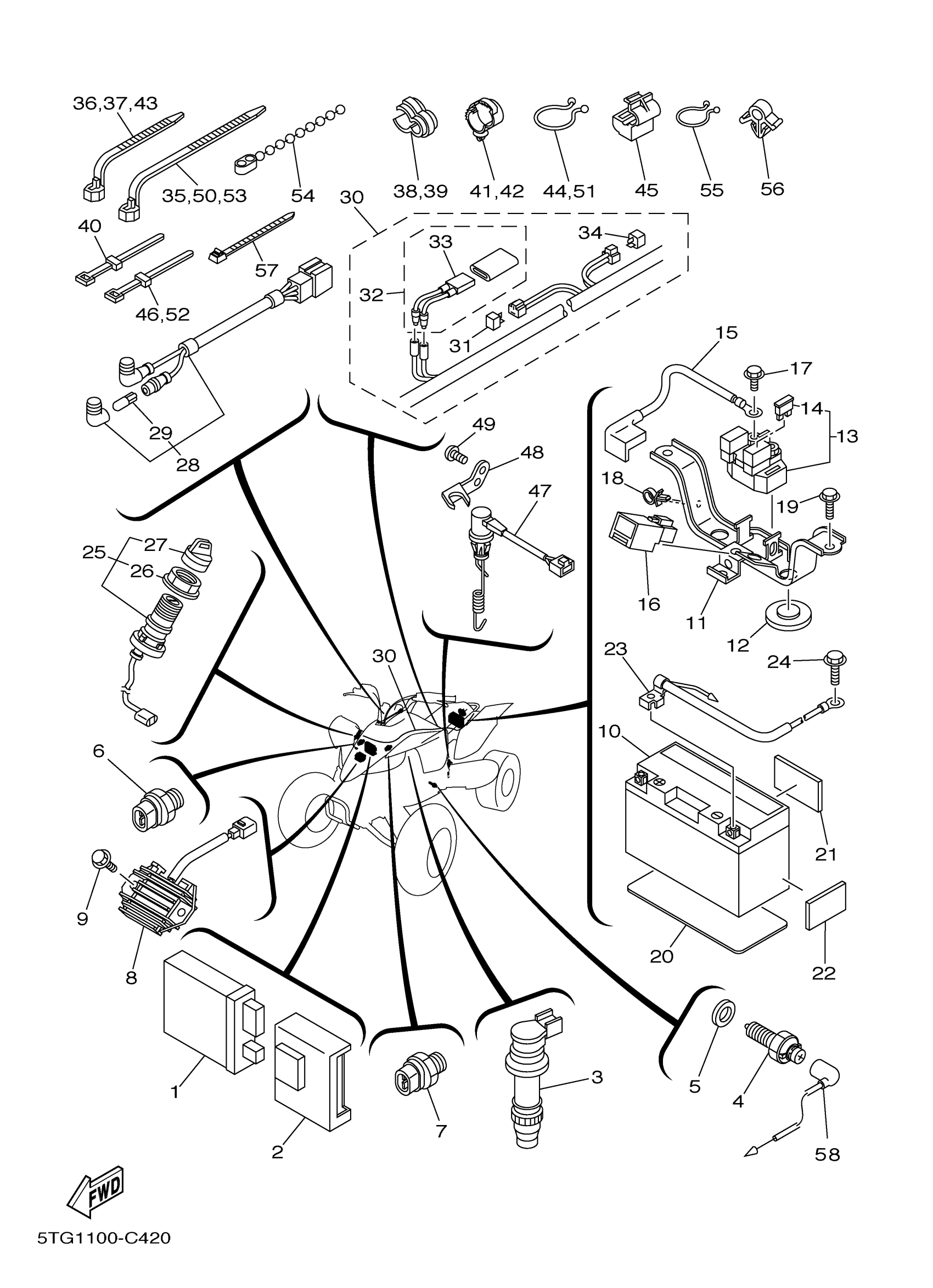

Yamaha YFZ450S (YFZ450) 5TG1 2004 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

5TG-85540-00-00

$593.49

2

BAND

5TG-85546-00-00

$13.12

3

IGNITION COIL ASSY

5TA-82310-10-00

$174.23

4

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$52.07

5

GASKET (1KH,1.0T)

90430-10148-00

$4.74

6

THERMO SWITCH ASSY

5GH-82560-01-00

Unavailable

7

THERMO SWITCH ASSY

5LP-82560-01-00

Unavailable

8

RECTIFIER & REGULATOR ASSY

5TG-81960-00-00

$146.51

9

. BOLT, FLANGE

95027-06020-00

$1.00

10

GT7B4 GS BATTERY - FA

GT7-B4000-00-00

$84.64

11

BRACKET, BATTERY

5TG-82128-00-00

Unavailable

12

PAD, BATTERY

371-82121-00-00

$7.91

13

STARTER RELAY ASSY (RC19-032)

5JW-81940-02-00

$107.44

14

FUSE (12V 15A)

36Y-82151-00-00

$4.08

15

WIRE, PLUS LEAD

5TG-82115-00-00

$22.45

16

RELAY ASSY

12R-81950-02-00

Unavailable

17

BOLT, SMALL FLANGE

95027-06008-00

$5.60

18

CLAMP(3XV)

90464-15157-00

$6.17

19

BOLT, FLANGE

90105-06044-00

$6.29

20

SEAT, BATTERY

5TG-82122-00-00

Unavailable

21

DAMPER 1

1UY-21638-00-00

$6.46

22

DAMPER

22F-2139X-00-00

$6.38

23

WIRE, MINUS LEAD

5TG-82116-01-00

Unavailable

24

BOLT, SMALL FLANGE

95027-06008-00

$5.60

25

MAIN SWITCH ASSY

5TG-82510-02-00

Unavailable

26

NUT, MAIN SWITCH

3HN-82569-00-00

$5.26

27

CAP, KEY

3HN-82579-00-00

$12.27

28

PILOT LIGHT ASSY

5TG-83530-00-00

$27.54

29

BULB (12V-1.7W)

3FV-83517-00-00

$6.30

30

WIRE HARNESS ASSY

5TG-82590-00-00

Unavailable

31

DIODE ASSY

3WP-81980-00-00

$18.85

32

CIRCUIT BREAKER ASSY

5ND-82180-00-00

$34.94

33

THERMO SWITCH ASSY

5ND-82560-00-00

$33.38

34

DIODE ASSY

4WA-81980-00-00

$25.93

35

CLAMP(4FM)

90464-15195-00

$2.77

36

CLAMP(4FM)

90464-15195-00

$2.77

37

CLAMP(4FM)

90464-15195-00

$2.77

38

CLAMP(53Y)

90464-15065-00

$5.72

39

CLAMP(53Y)

90464-15065-00

$5.72

40

BAND, SWITCH CORD

437-83936-01-00

$4.63

41

CLAMP(4AP)

90464-20181-00

$2.80

42

CLAMP(4AP)

90464-20181-00

$2.80

43

CLAMP(4FM)

90464-15195-00

$2.77

44

CLAMP (8M1)

90464-30040-00

$7.45

45

CLAMP(4GY)

90464-05188-00

$2.97

46

BAND, SWITCH CORD

437-83936-11-00

$3.20

47

STOP SWITCH ASSY

5TG-82530-00-00

Unavailable

48

STAY, STOP SWITCH

5TG-2144G-00-00

Unavailable

49

SCREW, BINDING

98907-06012-00

$7.14

50

CLAMP(4FM)

90464-15195-00

$2.77

51

CLAMP (8M1)

90464-30040-00

$7.45

52

BAND, SWITCH CORD

437-83936-11-00

$3.20

53

CLAMP(4FM)

90464-15195-00

$2.77

54

CLAMP

90464-20031-00

$2.62

55

CLAMP

90464-25267-00

$5.62

56

CLAMP(4BD)

90464-48174-00

$2.63

57

CLAMP (6E5)

90465-13M11-00

$5.72

58

WIRE, LEAD

5TG-82541-00-00

$11.63
