Description

Price

1

GEAR, PRIMARY DRIVE

5TG-16111-00-00

$79.17

2

WASHER, LOCK

90215-21001-00

$7.54

3

NUT

90179-20001-00

$13.78

4

PRIMARY DRIVEN GEAR COMP.

5D3-16150-00-00

$313.08

5

BOSS, CLUTCH

5TA-16371-02-00

$180.28

6

PLATE, PRESSURE 1

5TG-16351-00-00

$74.44

7

PLATE, CLUTCH 2

4X7-16325-10-00

$15.32

8

PLATE, FRICTION

5TG-16321-00-00

$13.02

9

SPRING, COMPRESSION(58L)

90501-224A8-00

$6.05

10

SCREW, WITH WASHER(1AE)

90159-06123-00

$6.45

11

PLATE, THRUST 1

2JN-16154-00-00

$18.14

12

PLATE, FRICTION 2

5TG-16331-00-00

$14.25

13

SPRING, CLUTCH BOSS

5JG-16383-00-00

$36.31

14

PLATE, SEAT

5JG-16384-00-00

$36.00

15

WASHER, LOCK (34L)

90215-20231-00

$2.80

16

NUT (34L)

90170-20327-00

$16.98

17

ROD, PUSH 1

5TG-16356-00-00

$37.02

18

BEARING, THRUST (713)

93340-21505-00

$16.62

19

WASHER, PLATE(1RE)

90201-125L6-00

$6.29

20

CIRCLIP (4G0)

93440-10085-00

$6.17

21

BALL (1M1)

93515-32029-00

$2.77

22

ROD, PUSH 2

5TG-16357-00-00

$38.92

23

AXLE, PUSH LEVER

5TG-16382-00-00

Unavailable

24

LEVER, PUSH

5TG-16342-00-00

$24.95

25

WASHER, PLAIN(735)

90201-10119-00

$0.78

26

CIRCLIP(10W)

99009-10400-00

$3.91

27

BEARING

93317-11287-00

$20.48

28

OIL SEAL (4G0)

93102-12224-00

$8.35

29

PLATE, SEAT

5TA-16384-01-00

Unavailable

30

SPRING, TORSION

90508-16015-00

$4.34

31

BOLT, FLANGE(4MY)

95027-06012-00

$3.28

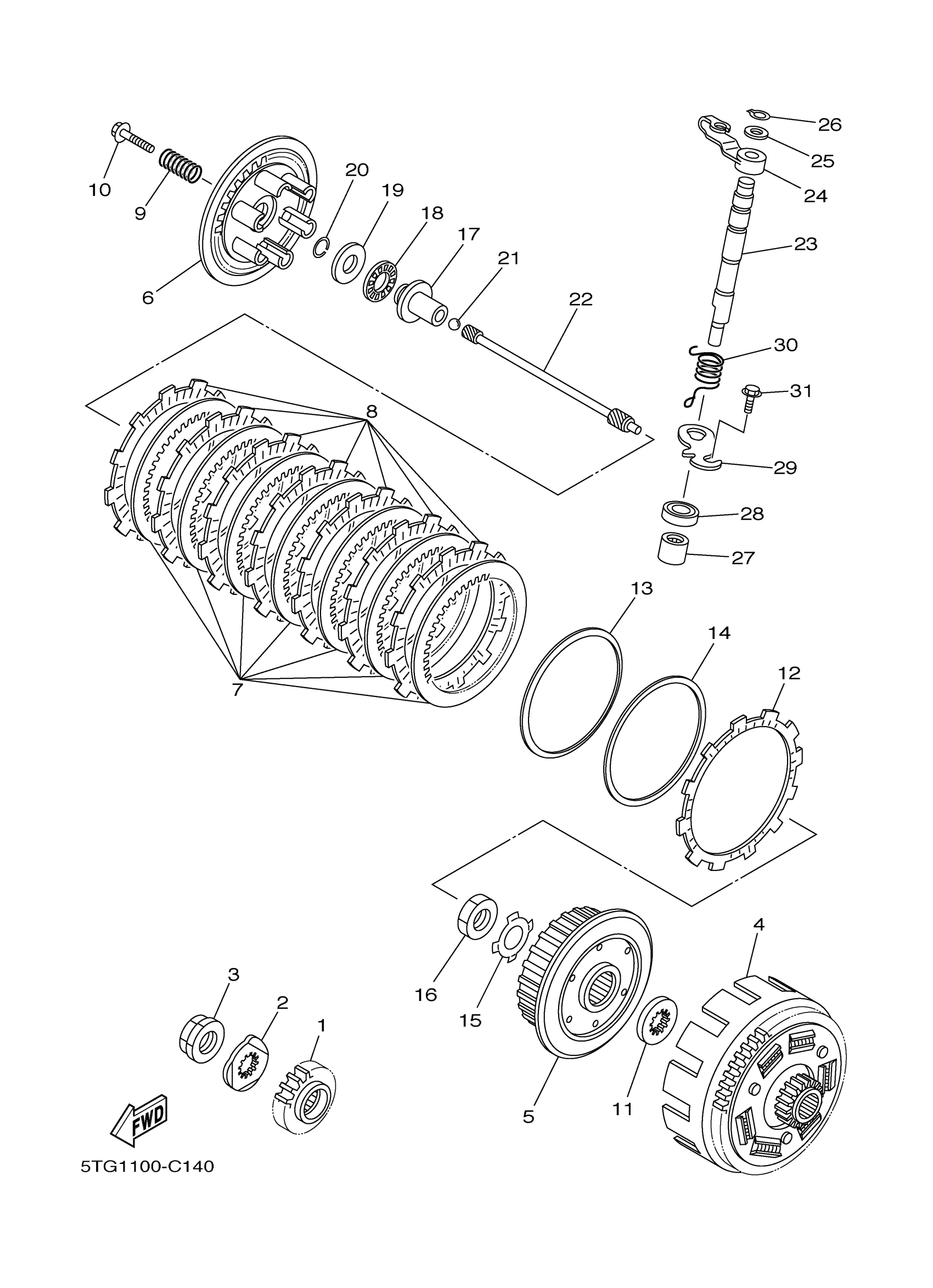

Yamaha YFZ450S (YFZ450) 5TG1 2004 CLUTCH Diagram
