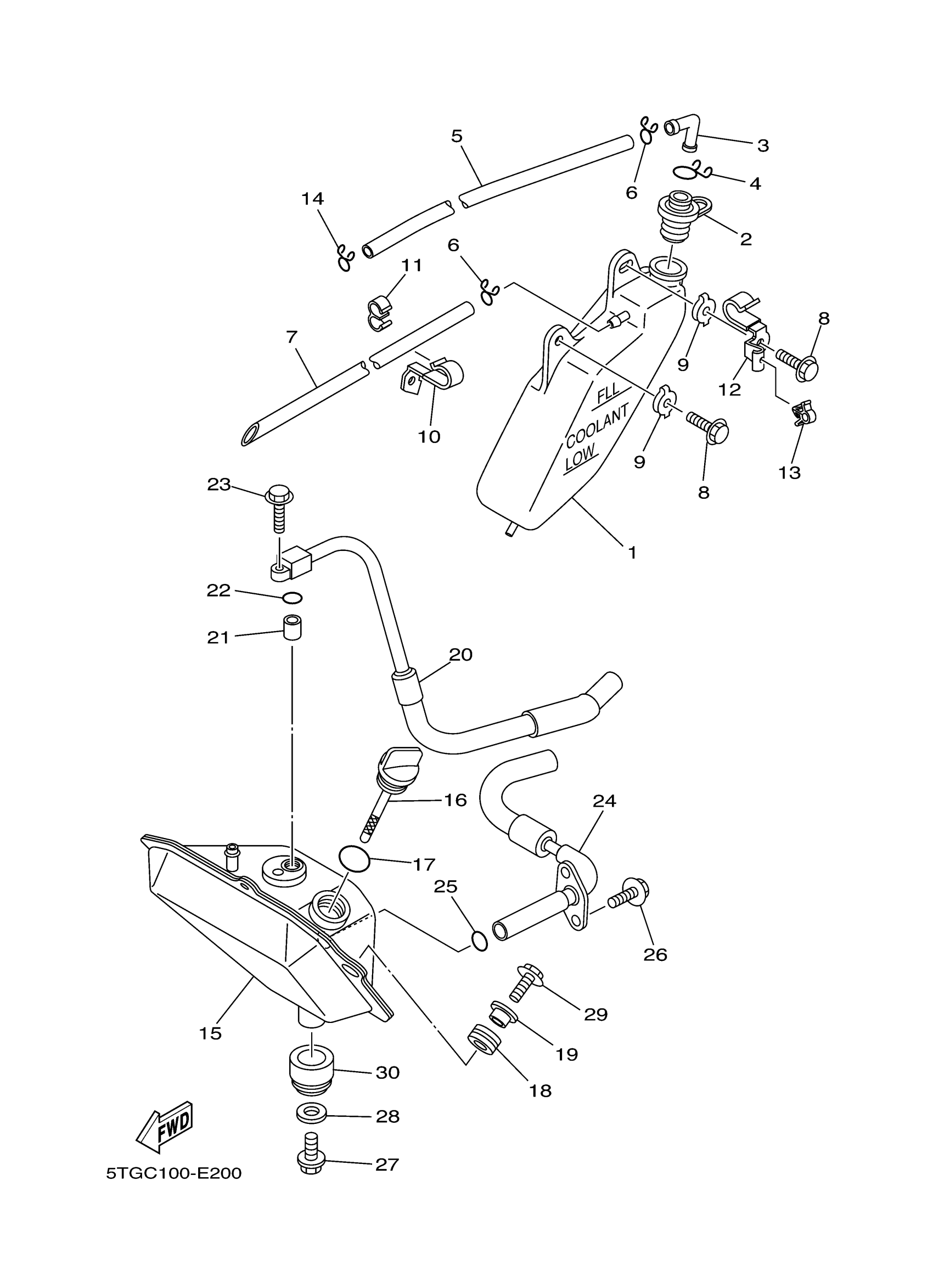

Yamaha YFZ450BBW (YFZ450 BILL BALLANCE EDITION) 5D37 2007 OIL TANK Diagram

#

Description
Price

1

TANK, RECOVERY

5TG-21871-00-00

$26.99

2

CAP

5TG-21875-00-00

$10.48

3

ELBOW

26H-21828-00-00

$21.94

4

CLIP(72X)

90467-11M08-00

$2.36

5

HOSE (L1500)

90445-090F6-00

$26.35

6

CLIP 101235600

90467-08003-00

$6.13

7

HOSE (L865)

90445-09021-00

$30.76

8

BOLT, FLANGE

90105-06084-00

$3.92

9

WASHER, SPECIAL 1

5TG-21715-00-00

$9.91

10

CLAMP

90465-08047-00

Unavailable

11

CLAMP(6M7)

90464-09M31-00

$6.23

12

CLAMP

90465-08044-00

Unavailable

13

CLAMP(3SK)

90464-13133-00

$6.17

14

CLIP 101235600

90467-08003-00

$6.13

15

OIL TANK ASSY

5TG-21750-00-00

Unavailable

16

GAUGE, LEVEL

5LP-21761-01-00

$8.91

17

O-RING

93210-21190-00

$5.59

18

GROMMET (4N0)

90480-10289-00

$6.45

19

COLLAR

90387-06150-00

$5.14

20

HOSE, OIL 2

5TG-13465-01-00

Unavailable

21

PIN, DOWEL(3VD)

99530-10114-00

$2.23

22

O-RING (371)

93210-10197-00

$5.86

23

BOLT, FLANGE

95022-06025-00

$1.46

24

HOSE, OIL 1

5D3-13464-00-00

$142.98

25

O-RING (26H)

93210-16629-00

$5.86

26

BOLT(3MA)

91312-06016-00

$4.89

27

BOLT, FLANGE

95814-08016-00

$6.68

28

WASHER, PLATE (4L0)

90201-082A6-00

$2.92

29

BOLT, FLANGE

95817-06020-00

$2.69

30

GROMMET

90480-24001-00

$6.42
