Description

Price

1

DISC, BRAKE (LEFT)

3GD-2582T-10-00

$194.97

2

BOLT

90109-08087-00

$2.65

3

CALIPER ASSY (LEFT

5TG-2580T-12-00

$283.91

4

PISTON ASSY, CALIPER

5TG-W0057-00-00

$72.98

5

CALIPER SEAL KIT

3LC-W0047-50-00

$50.68

6

BOOT 2

1UY-25937-51-00

$12.27

7

BOOT, CALIPER

3JD-25917-00-00

$7.51

8

SUPPORT, PAD

3JD-25919-00-00

$23.43

9

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

10

BOLT

1UY-25926-51-00

$3.34

11

WASHER, SPRING

1UY-25938-51-00

$7.51

12

BOLT

3JD-25926-00-00

$6.43

13

NUT

3JD-25961-00-00

$6.94

14

BRAKE PAD KIT

5TG-W0045-22-00

$45.43

15

PIN, PAD

5TG-25924-00-00

$14.25

16

SHIM, CALIPER

1S3-25828-00-00

$14.14

17

CALIPER ASSY (RIGH

5TG-2580U-12-00

$244.72

18

PISTON ASSY, CALIPER

5TG-W0057-00-00

$72.98

19

CALIPER SEAL KIT

3LC-W0047-50-00

$50.68

20

BOOT 2

1UY-25937-51-00

$12.27

21

BOOT, CALIPER

3JD-25917-00-00

$7.51

22

SUPPORT, PAD

3JD-25919-00-00

$23.43

23

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

24

BOLT

1UY-25926-51-00

$3.34

25

WASHER, SPRING

1UY-25938-51-00

$7.51

26

BOLT

3JD-25926-00-00

$6.43

27

NUT

3JD-25961-00-00

$6.94

28

BRAKE PAD KIT

5TG-W0045-32-00

$45.43

29

PIN, PAD

5TG-25924-00-00

$14.25

30

SHIM, CALIPER

1S3-25828-00-00

$14.14

31

BOLT, WASHER BASED(2XJ)

90105-08520-00

$2.69

32

COLLAR

90387-20005-00

$21.51

33

WASHER, PLATE

90201-20022-00

$6.78

34

COLLAR(1UY)

90387-150R1-00

$6.29

35

WASHER PLATE 248181370000

90201-14220-00

$6.17

36

NUT, CASTLE

90171-14002-00

$7.62

37

PIN, COTTER

91401-30025-00

$6.18

38

RING, WHEEL 1 (LEFT)

5TG-2514A-00-00

$9.32

39

SCREW, BINDING (31K)

90154-06014-00

$7.68

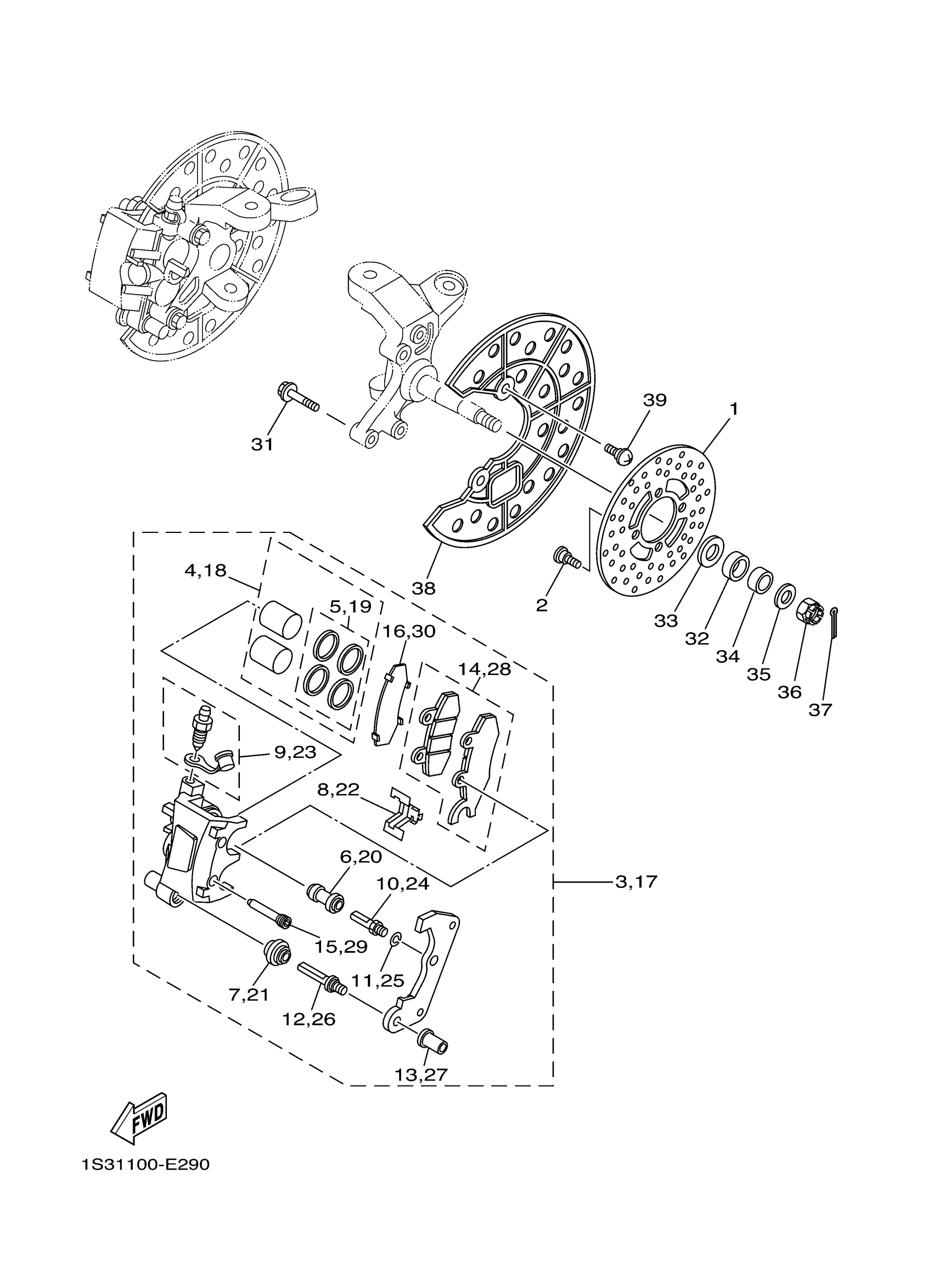

Yamaha YFZ450BBW (YFZ450 BILL BALLANCE EDITION) 5D37 2007 FRONT BRAKE CALIPER Diagram
