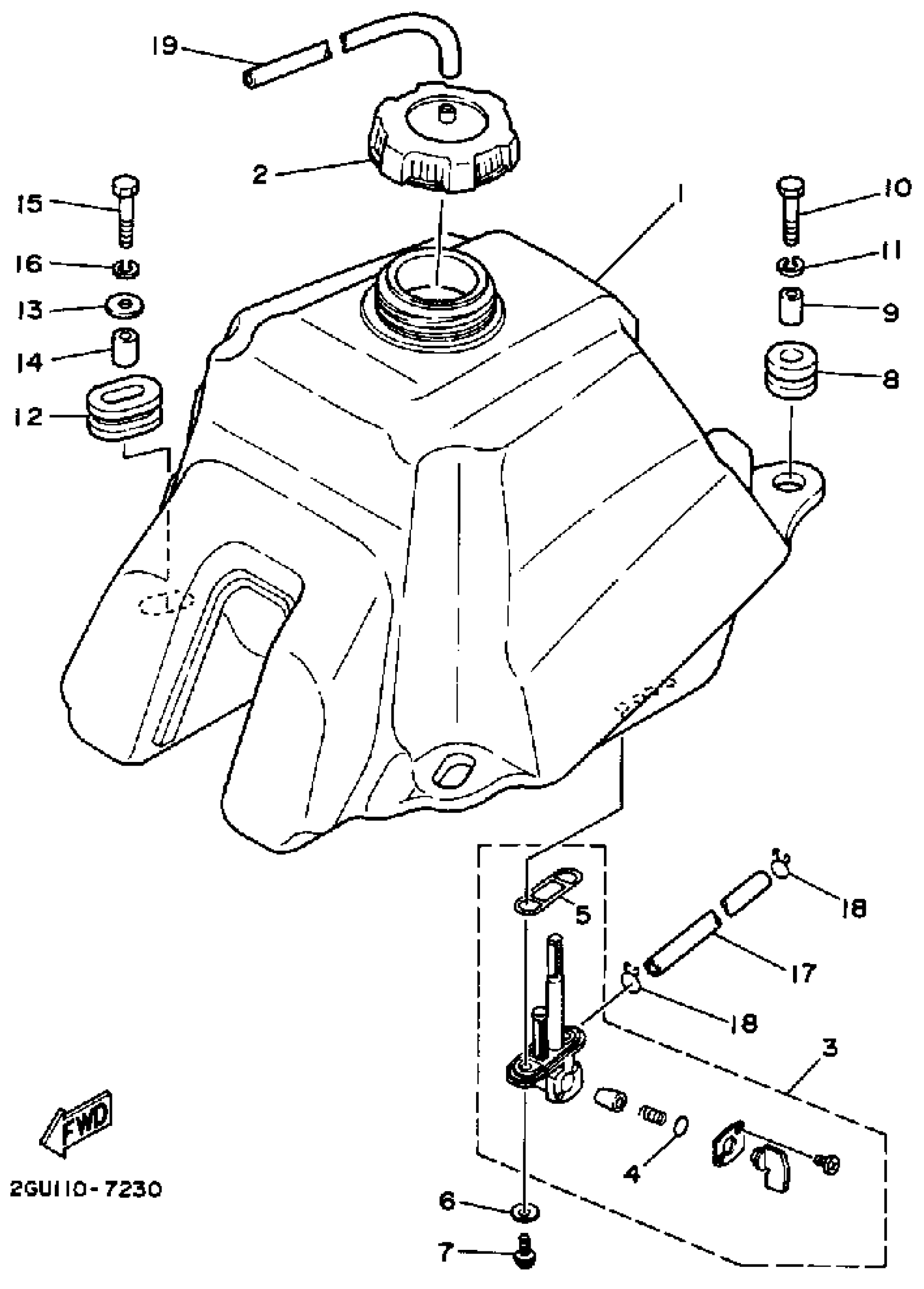

Yamaha YFZ350W (BANSHEE) 1989 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

2GU-24110-00-00

Unavailable

2

CAP ASSY

5MV-24610-00-00

$49.24

3

FUEL COCK ASSY 1

2GU-24500-02-00

$50.01

4

O-RING

4X8-24534-00-00

$10.74

5

O-RING

4X8-24512-00-00

$6.25

6

WASHER, PLATE(3MB)

90202-05187-00

$1.01

7

SCREW 256241430000

90149-06011-00

$1.56

8

GROMMET (4V1)

90480-18290-00

$6.54

9

COLLAR (36R)

90387-066J1-00

$6.39

10

BOLT, HEXAGON

97017-06030-00

$2.80

11

WASHER, SPRING

92995-06100-00

$2.95

12

GROMMET(38W)

90480-01400-00

$9.40

13

WASHER, PLATE

90201-06090-00

$4.82

14

COLLAR (1T2)

90387-07598-00

$4.51

15

BOLT, HEXAGON

97017-06030-00

$2.80

16

WASHER, SPRING

92995-06100-00

$2.95

17

HOSE (L166)

90445-13693-00

Unavailable

18

CLIP(1JH)

90467-11106-00

Unavailable

19

HOSE (L1500)

90445-090F6-00

Unavailable
