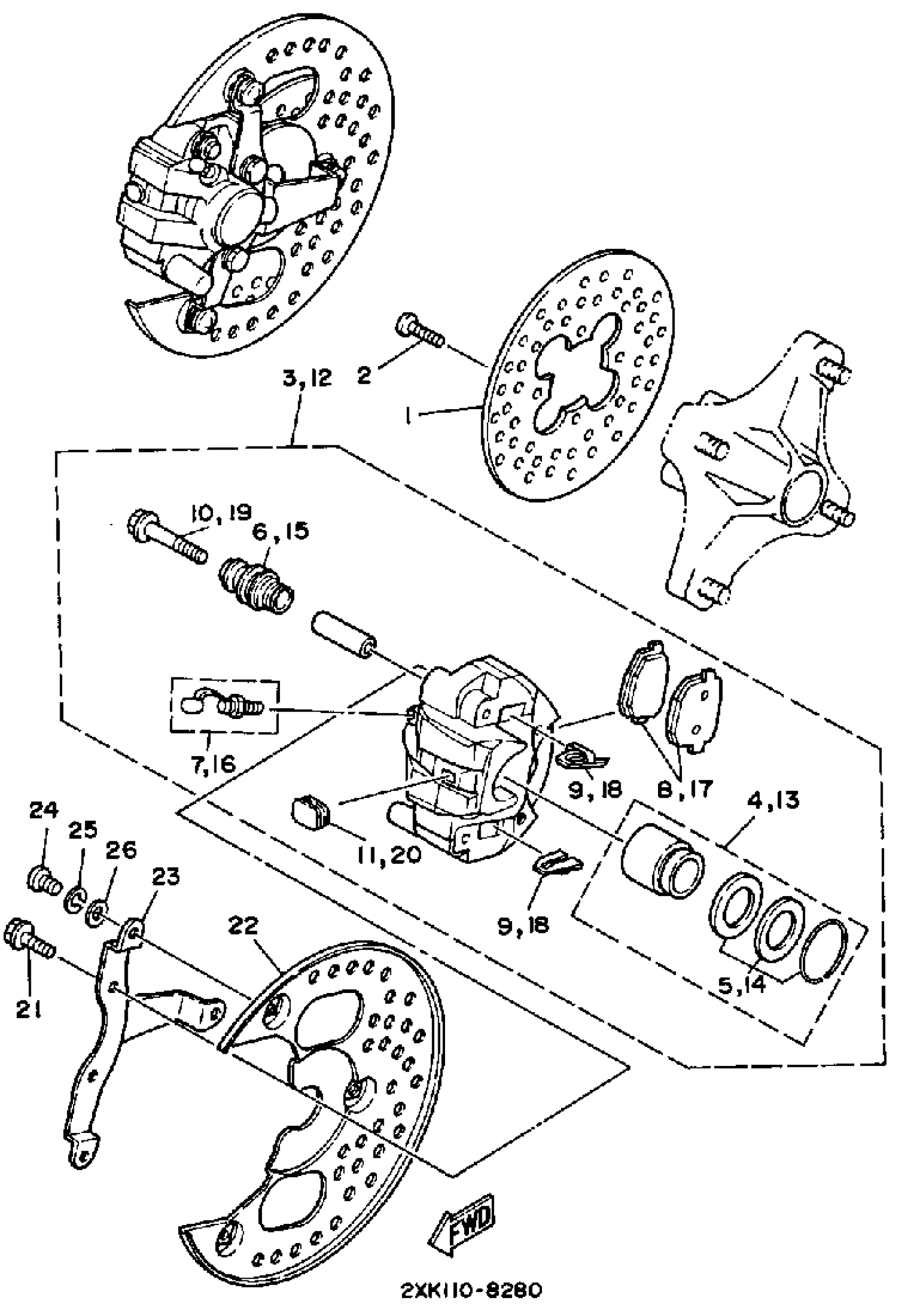

Yamaha YFZ350W (BANSHEE) 1989 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE

1UY-25831-01-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$3.88

3

CALIPER ASSEMBLY, LH

1UY-2580T-00-00

Unavailable

4

. PISTON ASSEMBLY, CALIPER

1UY-W0057-00-00

Unavailable

5

.. CALIPER SEAL KIT

1UY-W0047-00-00

Unavailable

6

BOOT 2

34X-25937-00-00

$27.55

7

BLEED SCREW KIT

15B-W0048-00-00

$16.89

8

BRAKE PAD KIT

1UY-W0045-03-00

$40.02

9

SUPPORT, PAD

34X-25919-00-00

Unavailable

10

BOLT

5KN-25926-01-00

$7.30

11

CAP, INDICATOR

34X-25845-00-00

$14.33

12

CALIPER ASSEMBLY, RH

1UY-2580U-00-00

Unavailable

13

. PISTON ASSEMBLY, CALIPER

1UY-W0057-00-00

Unavailable

14

.. CALIPER SEAL KIT

1UY-W0047-00-00

Unavailable

15

BOOT 2

34X-25937-00-00

$27.55

16

BLEED SCREW KIT

15B-W0048-00-00

$16.89

17

BRAKE PAD KIT

1UY-W0045-03-00

$40.02

18

SUPPORT, PAD

34X-25919-00-00

Unavailable

19

BOLT

5KN-25926-01-00

$7.30

20

CAP, INDICATOR

34X-25845-00-00

$14.33

21

BOLT, WASHER BASED

90105-08467-00

Unavailable

22

COVER

2GU-25127-00-00

Unavailable

23

STAY

2GU-25192-00-00

Unavailable

24

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

25

WASHER, SPRING

92995-06100-00

$2.95

26

WASHER, PLAIN (646)

92990-06600-00

Unavailable
