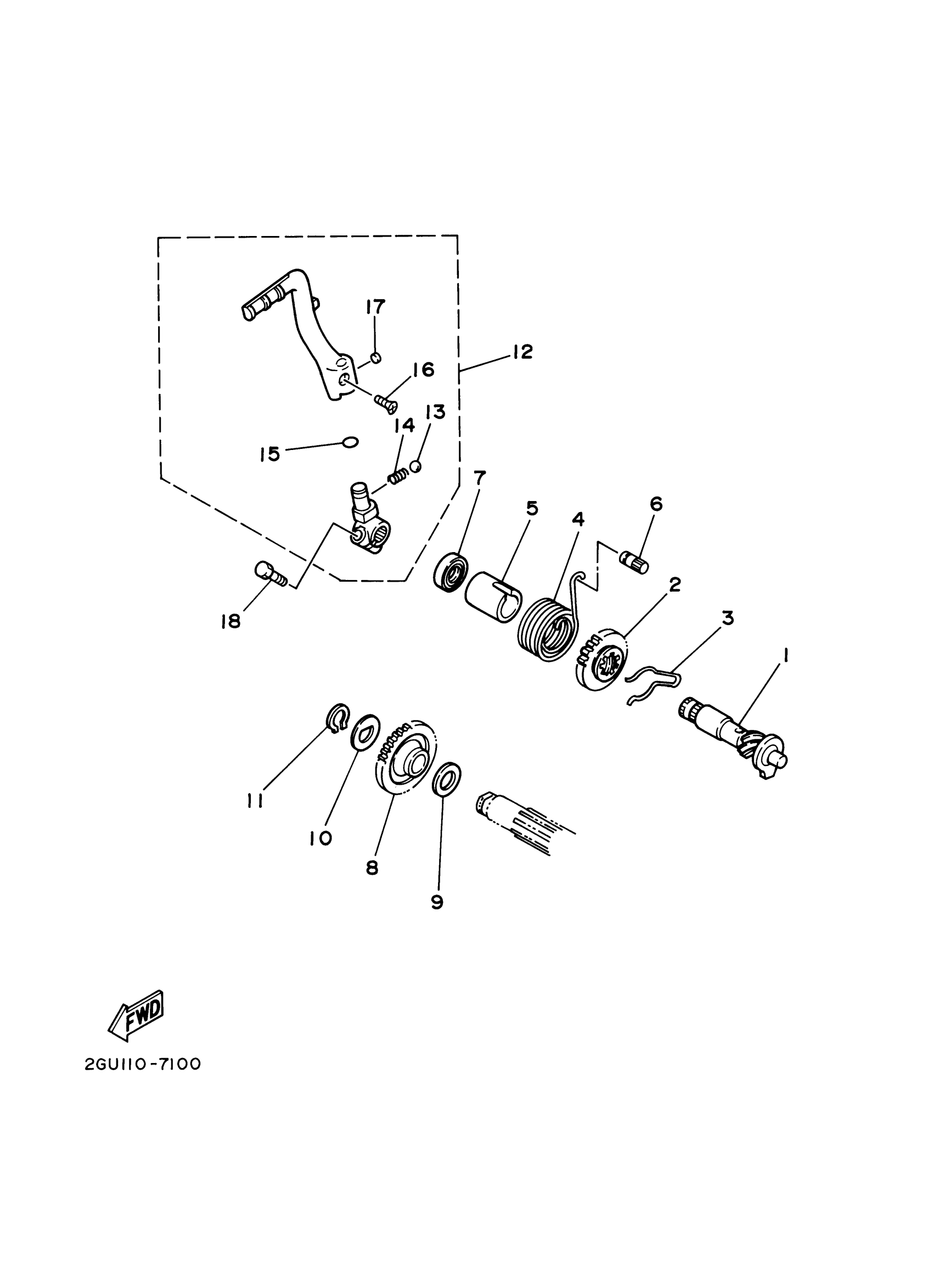

Yamaha YFZ350SEV (BANSHEE SE) 3B56 2006 STARTER Diagram

#

Description
Price

1

KICK AXLE ASSY

4L0-15660-01-00

Unavailable

2

GEAR, KICK

4L0-15641-00-00

Unavailable

3

CLIP (2R8)

90468-26091-00

$5.75

4

SPRING TORSION 278156650000

90508-30051-00

$12.96

5

SPACER

4L0-15666-00-00

$16.27

6

STOPPER, KICK SPRING

248-15668-00-00

$6.29

7

OIL SEAL

93102-20484-00

$6.56

8

GEAR, KICK IDLE

4L0-15651-00-00

$79.28

9

SHIM, MAIN AXLE (1.0)

164-17417-00-10

$6.22

10

WASHER (4L0)

90214-15020-00

$6.34

11

CIRCLIP(1AR)

99009-15400-00

$4.89

12

KICK CRANK ASSY

2GU-15620-01-00

$166.72

13

BALL (12R)

93507-32031-00

$3.65

14

SPRING COMPRESSION278156220000

90501-12081-00

$5.75

15

O-RING (2H9)

93210-14369-00

$5.42

16

SCREW, COUNTERSUNK (5Y1)

90152-06010-00

Unavailable

17

PLUG, TAPER(2GU)

90336-42049-00

Unavailable

18

BOLT, HEXAGON

97017-08030-00

Unavailable
